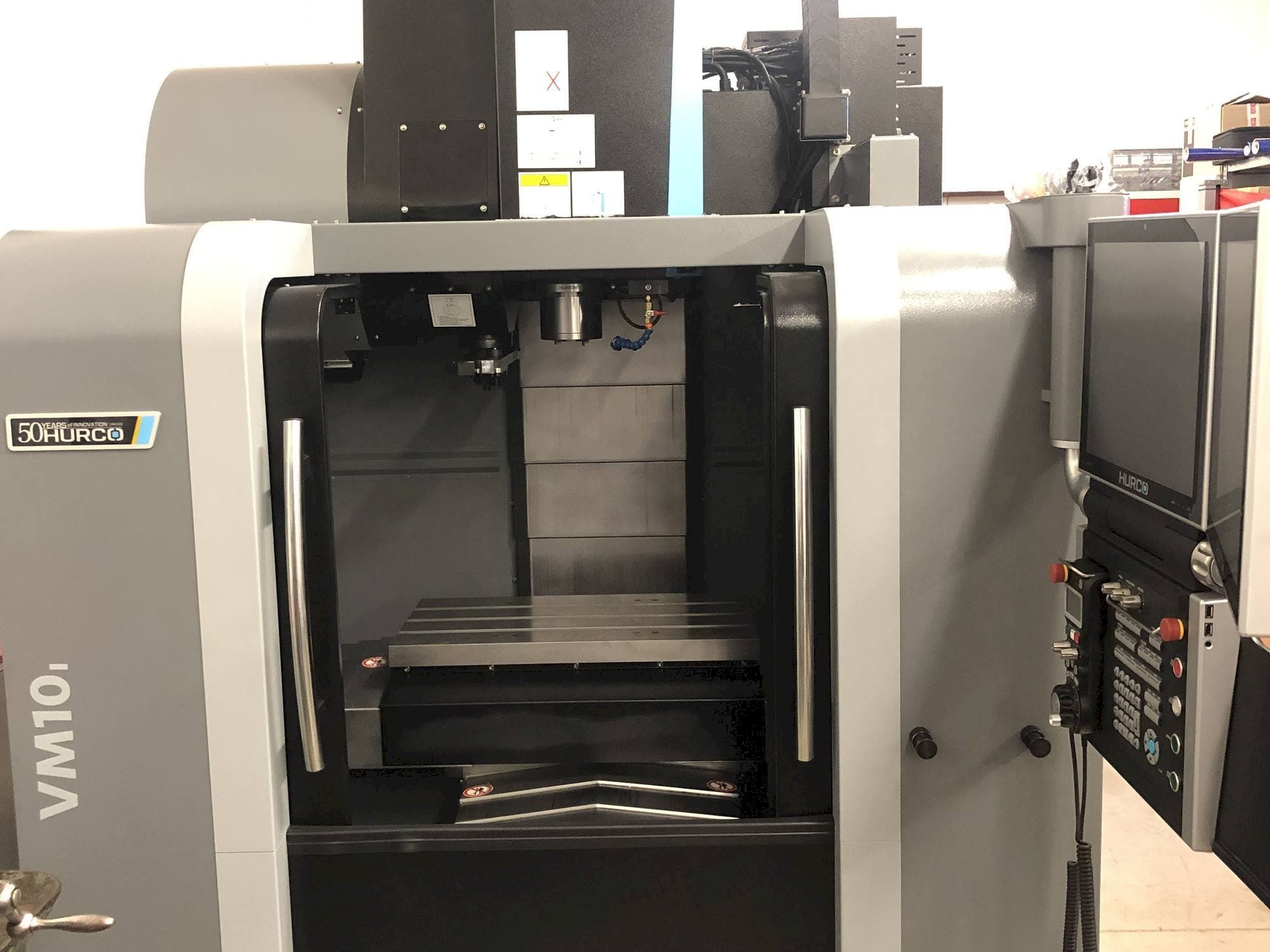

This Hurco VM 10 i Plus Vertical Machining Center was made in Germany in 2018. It has a production hours of only 486. It is operated with a WINMAX 5 GEN touch display control unit. This machine can work with a spindle speed range up to 12000 rpm. It is ready to work with 4th and 5th axis.
Overview
- brand: Hurco
- year: 2018
- MODEL: VM 10 i Plus
- production hours: 486
- application type: Milling
- Location: Czech Republic
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - Hurco VM 10 i Plus
General Data
- Measurements width: 3204 mm
- Measurements depth: 3363 mm
- Measurements height: 2564 mm
- Machine weight: 2850 kg
Control Unit
- Model: WINMAX 5 GEN
- CNC main language: Czech
- CNC language customizable: Yes
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Spindle motor power: 11 kW
Movement
- X-AXIS Movement: 660 mm
- X-AXIS Rapid traverse: 24 m/min
- Y-AXIS Movement: 406 mm
- Y-AXIS Rapid traverse: 24 m/min
- Z-AXIS Movement: 508 mm
- Z-AXIS Rapid traverse: 24 m/min
Workpiece
- Workpiece weight: 682 kg
Table
- Outer length: 762 mm
- Outer width: 406 mm
- TSlots size: 3 x 18 H8 x 100
Tools
- Slots in storage: 20
- Max weight: 7 kg
- Max tool diameter: 89 mm
- Max tool length: 250 mm
- Type of tool holder: SK 40
Media
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Spindle torque max. (nm) 61
- - 4th and 5th axis ready
- - 2x 19"lcd touch displays
- - Hand-wheel premium with lcd display
- Qualitative Machine Benefits:
- - Machine like new
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
