Hurco DCX 22Ti Milling

Show in original language

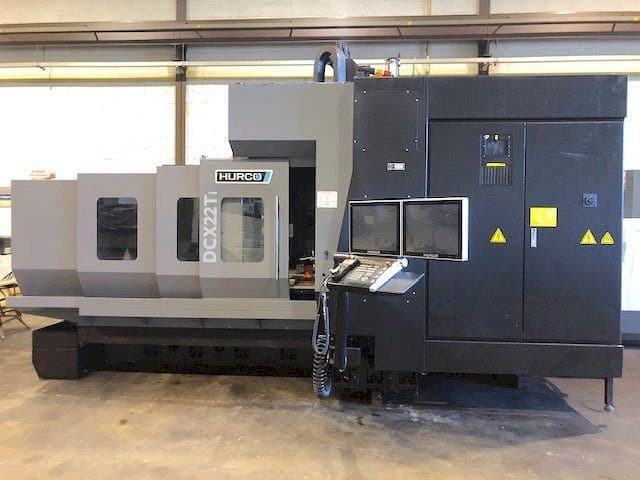

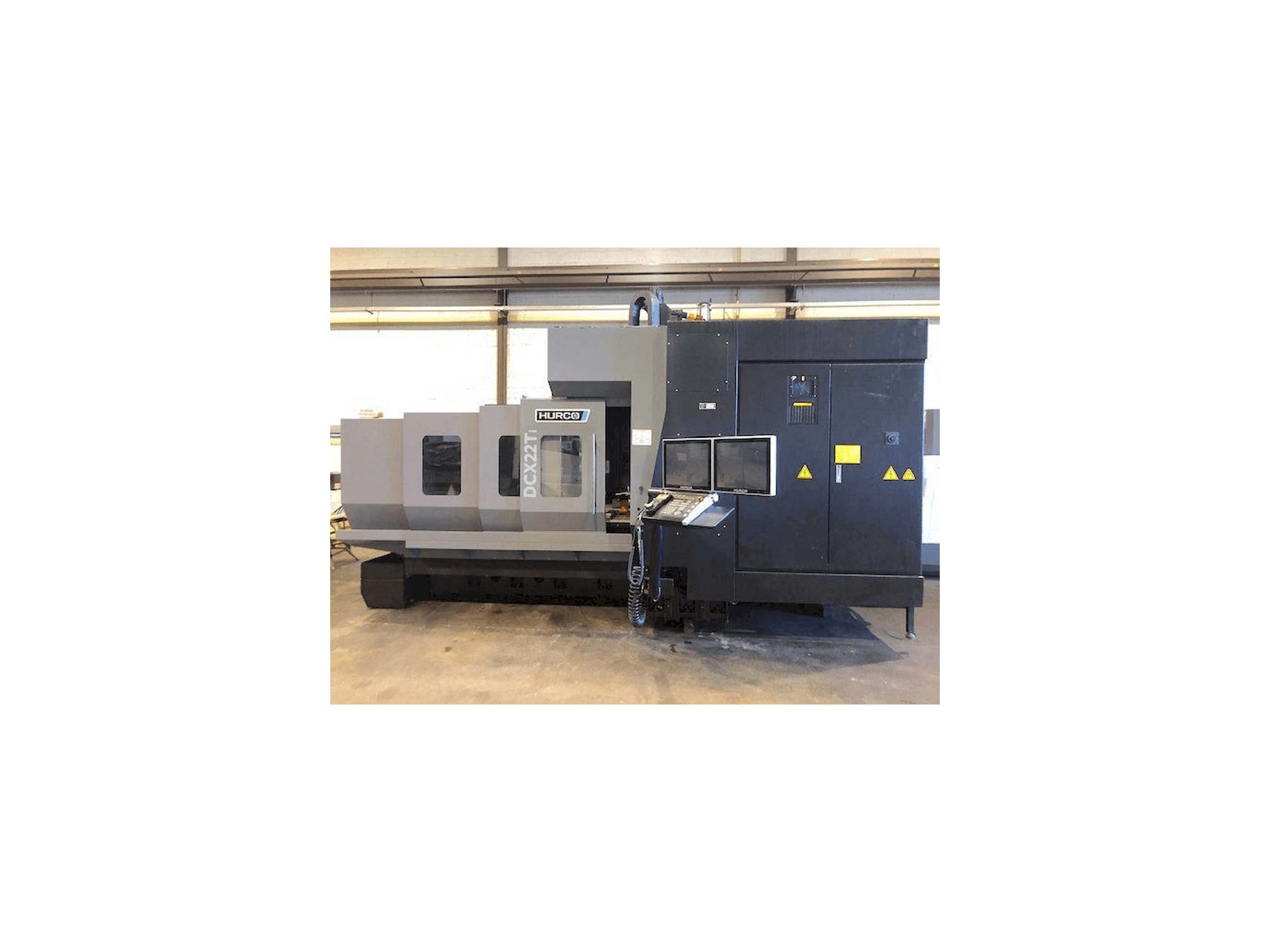

This Hurco DCX 22Ti Vertical Machining Center was manufactured in 2017. It has 5916 working hours, of which 2211 are spindle hours. It is equipped with a Hurco Control unit and can work with a spindle speed up to 12000 rpm. This 3-axis machine incorporates a swarf conveyor and a spindle coolant. It is in very good conditions.

Overview

brand: Hurco
year: 2017
MODEL: DCX 22Ti
production hours: 5916
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco DCX 22Ti

General Data

Measurements width: 7246 mm
Measurements depth: 6078 mm
Measurements height: 3900 mm
Machine weight: 20000 kg

Control Unit

Brand: HURCO

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2200 mm
Y-AXIS Movement: 1700 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece weight: 8000 kg

Table

Outer length: 2100 mm
Outer width: 1600 mm
Number of tslots: 9

Tools

Slots in storage: 40
Max weight: 7 kg
Max tool diameter: 75 mm
Max tool length: 300 mm
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Simultaneous axis operation
- - Distance between columns: 1750 mm
- - Spindle nose to table: 152 – 902 mm
- - Spindle motor power: 18 kw
- - Rapid feedrates x/y/z 32/32/24 m/min
- - Thru spindle coolant
- - Spindle probe
- - Swarf conveyor
- - 3-axis portal machining center
Qualitative Machine Benefits:
- - Very good condition

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
