Huber&Grimme HG3000T Milling Machine

Show in original language

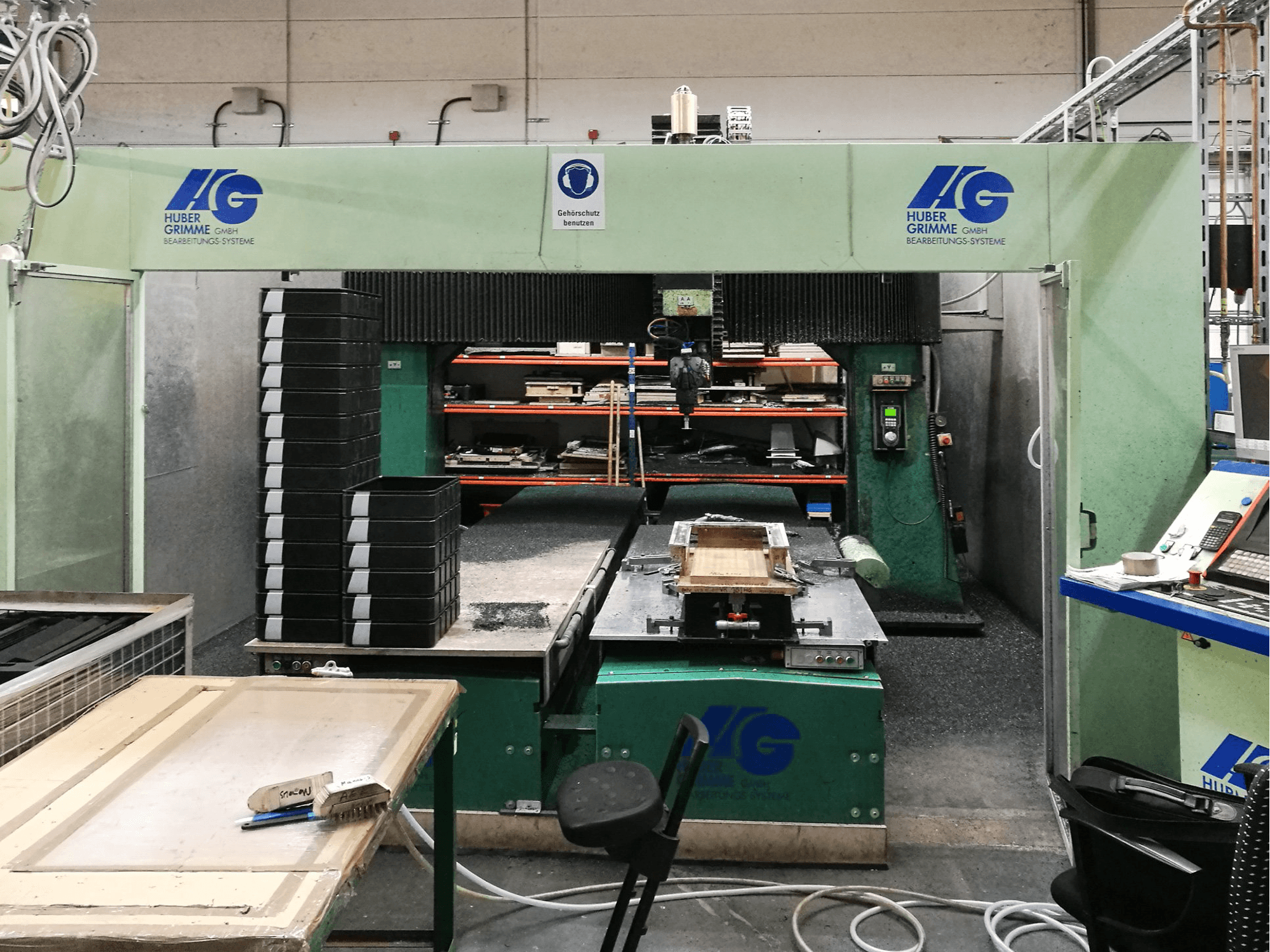

This Huber&Grimme HG3000T Milling Machine was manufactured in 1997 in Germany and has a working record of 27905 production hours ever since. Operated through a NUM 1062W control unit, this solid-built machine stands out for its range of movements and its 2 working tables. In the past, this Huber&Grimme has handled mostly plastic of up to 4 mm of thickness. Several pieces of additional equipment are included, such as: a vacuum pump for tables, a housing, a spindle cooling unit and a 6x tool holder.

Overview

brand: Huber&Grimme
year: 1997
MODEL: HG3000T
production hours: 27905
application type: Milling
Location: Germany
machine type: Gantry Milling Machine
availability: Sold

Technical Information - Huber&Grimme HG3000T

General Data

Measurements width: 5500 mm
Measurements depth: 6000 mm
Measurements height: 3300 mm
Machine weight: 5000 kg

Control Unit

Model: 1062W
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 40000 1/min
Spindle motor power: 2.5-6.0 kW
Tool taper: WK19

Movement

X-AXIS Movement: 3000 mm
X-AXIS Backlash: 0.05
Y-AXIS Movement: 2620 mm
Y-AXIS Backlash: 0.05
Z-AXIS Movement: 720 mm
A-AXIS Movement: 360º MM
B-AXIS Movement: 108º MM

Table

Outer length: 3000 mm
Outer width: 1500 mm

Tools

Slots in storage: 2 x 6

Media

Main electronic connection: 380 V / 50 Hz

Additional equipment

- Vacuum pump for tables
- Housing for machine
- Spindle cooling unit
- 6x Tool holder

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
