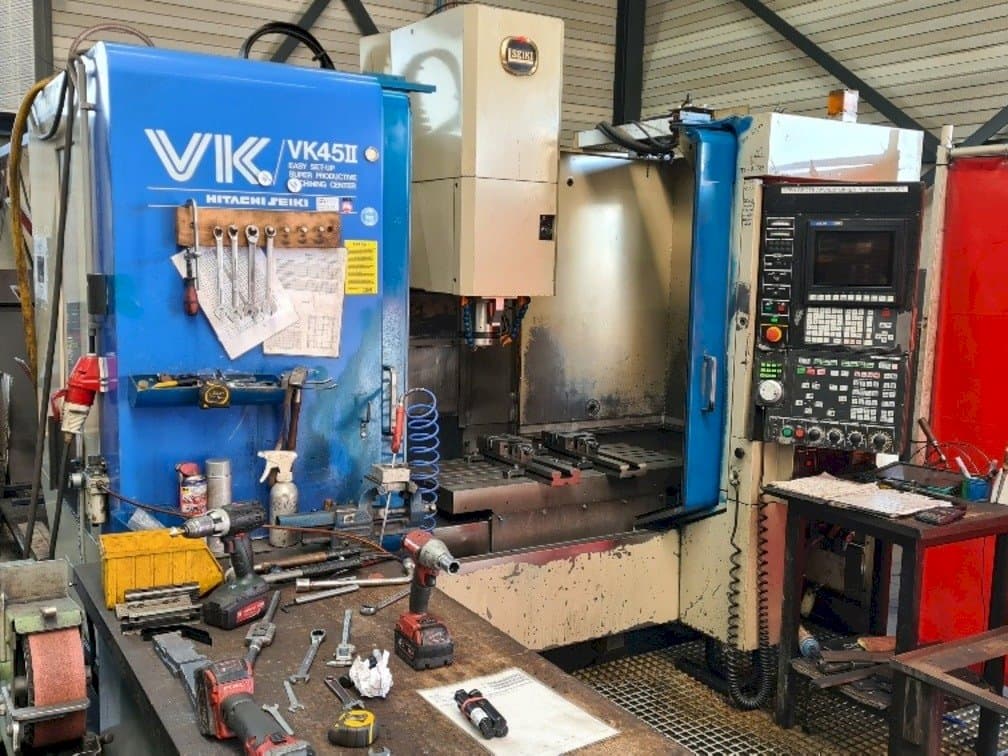

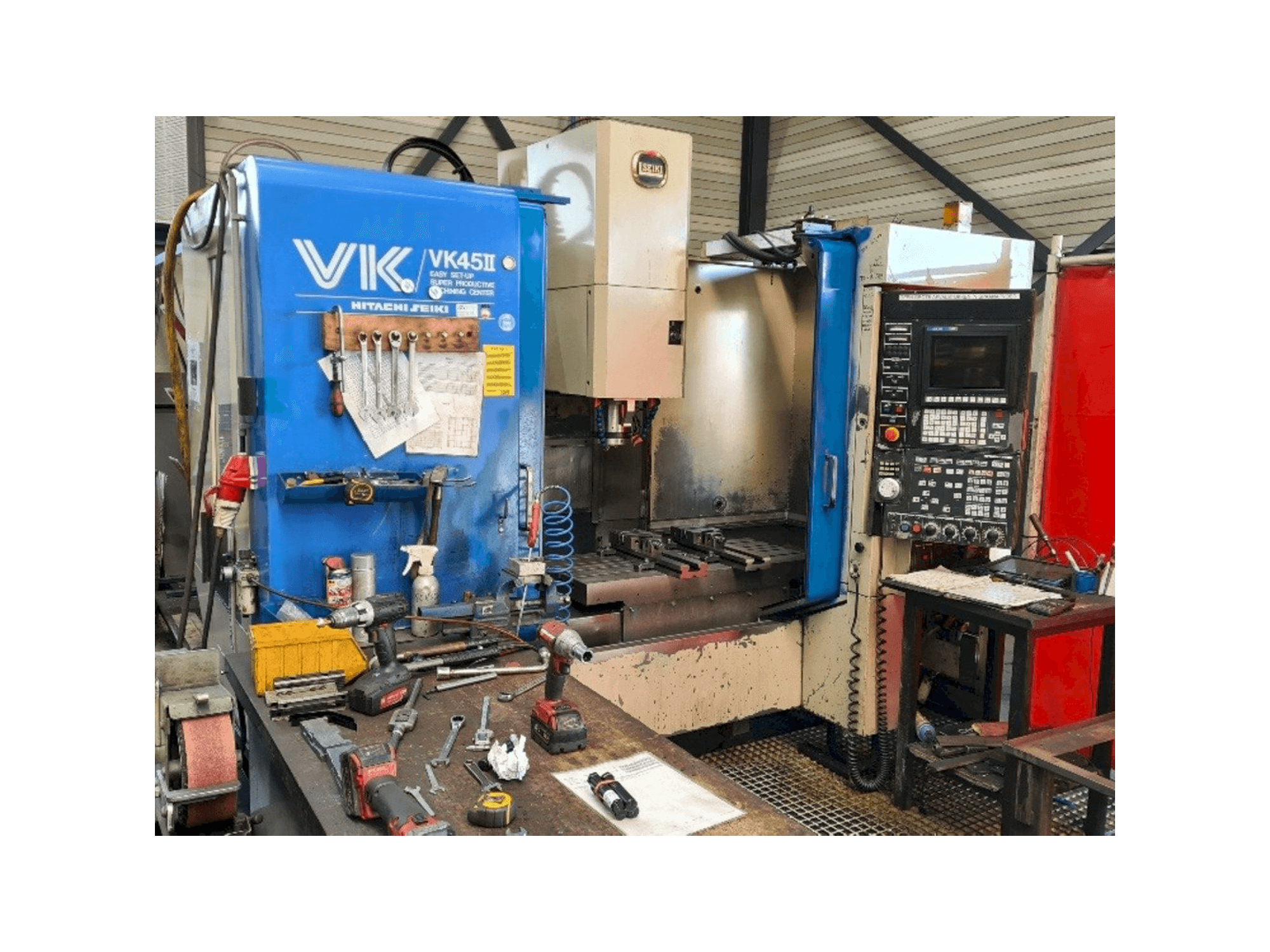

- HITACHI SEIKI VK45II Vertical Machining Center
This HITACHI SEIKI VK45II Vertical Machining Center was manufactured in Japan in the year 1995. It is operated through a Seicos 10M control unit. It has 4485 cycle hour. This 4 axis machine can works with a spindle speed up to 8000 rpm.
Overview
- brand: HITACHI SEIKI
- year: 1995
- MODEL: VK45II
- production hours: 4485
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Seicos
Technical Information - HITACHI SEIKI VK45II
General Data
- Measurements width: 2400 mm
- Measurements depth: 3100 mm
- Measurements height: 2800 mm
- Machine weight: 6000 kg
Control Unit
- Brand: Seicos
- Model: 10M
Main drive
- Spindle speed range: 8000 1/MIN
- Spindle motor power: 10 kw
- Number of axis: 4
Movement
- X-AXIS Movement: 760 mm
- Y-AXIS Movement: 500 mm
- Z-AXIS Movement: 500 mm
Table
- Outer length: 1120 mm
- Outer width: 485 mm
- Table load: 750 kg
Tools
- Type of tool holder: BT 40
Media
- Main electronic connection: 380 V - 50/60 Hz
Additional Information
- Technical Machine Benefits:
- - Rotary table (4th axis)
- - Number of tool pockets: 30
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
