HEYLIGENSTAEDT - HEYNUMILL ECOFLEXDE-MIL-HEY-2009-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

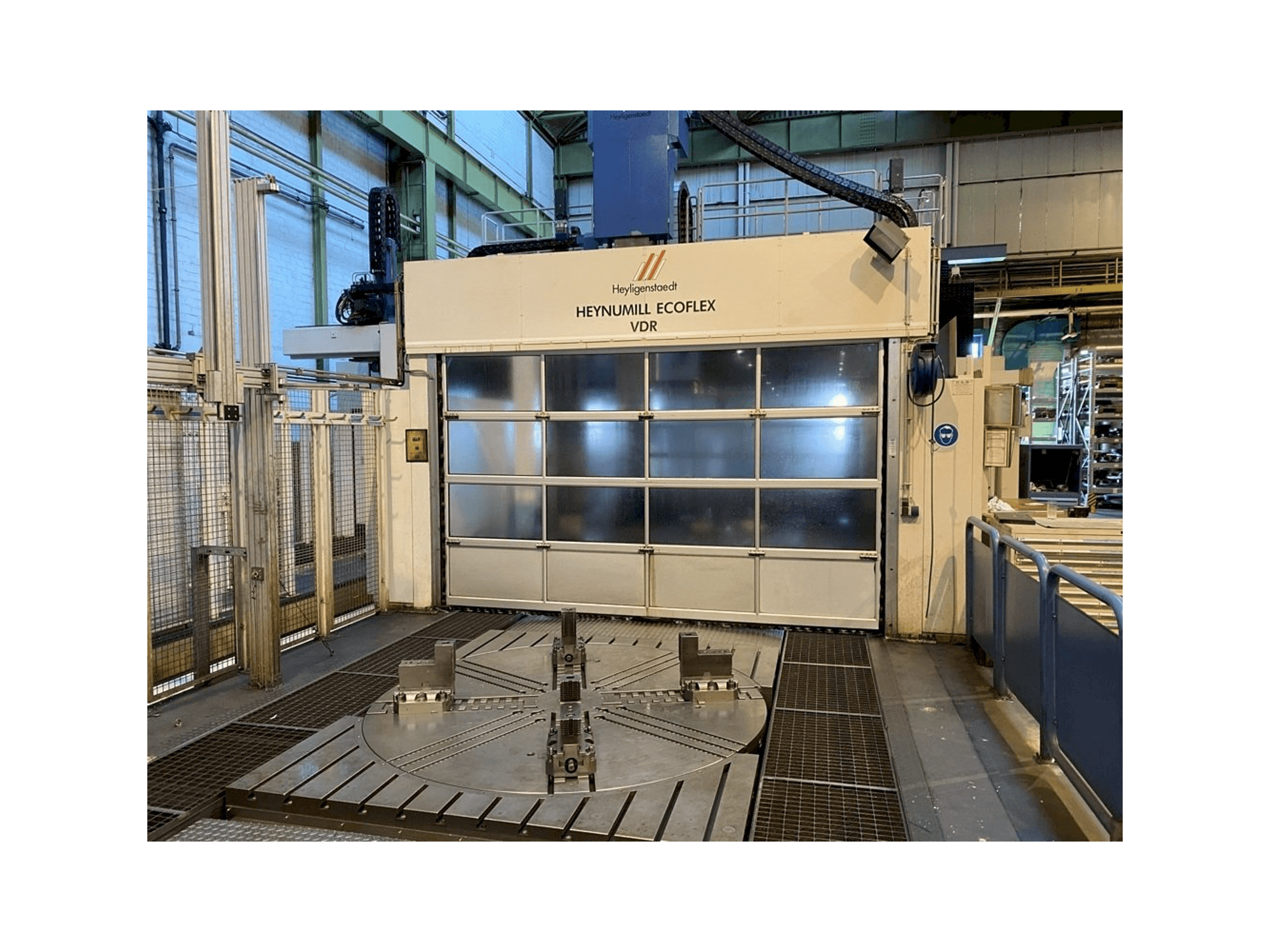

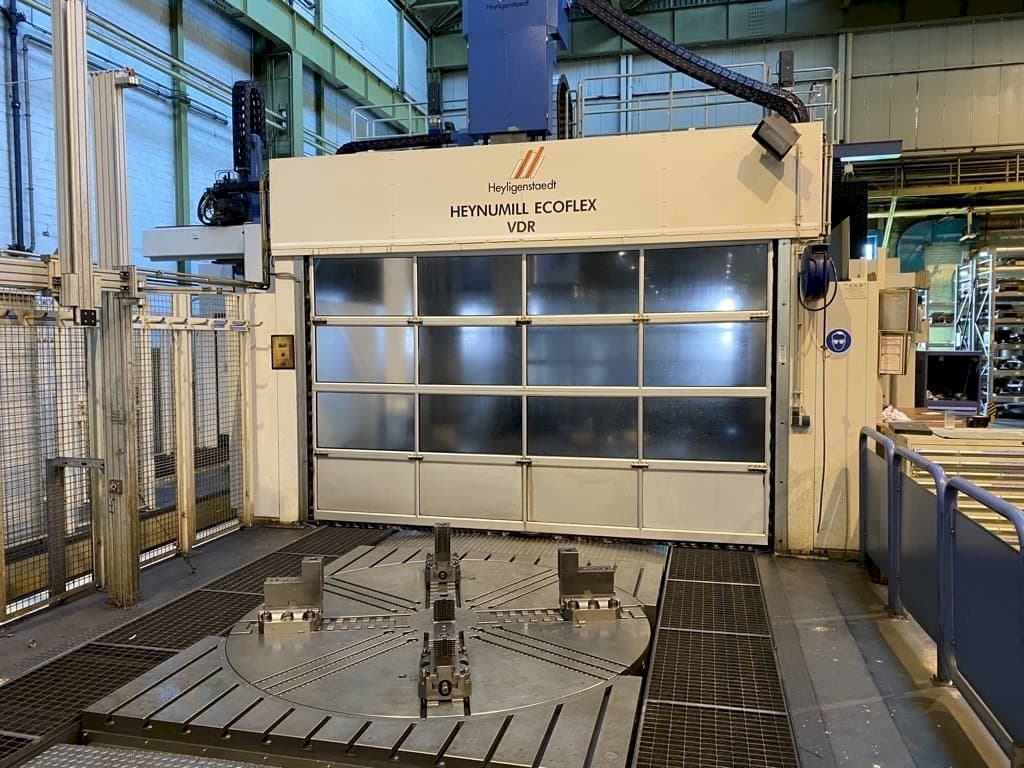

This HEYLIGENSTAEDT HEYNUMILL ECOFLEX Milling Machine was manufactured in Germany in 2009.

Show in original language

This HEYLIGENSTAEDT HEYNUMILL ECOFLEX Milling Machine was manufactured in Germany in 2009. This multiple axis machine can perform with a spindle speed up to 5000 rpm. This powerful machine incorporates an HSK 100 tool holder.

Overview

brand: HEYLIGENSTAEDT
year: 2009
MODEL: HEYNUMILL ECOFLEX
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - HEYLIGENSTAEDT HEYNUMILL ECOFLEX

Control Unit

Model: 840 D
Brand: SIEMENS

Main drive

Spindle speed range: 5000 1/MIN

Movement

X-AXIS Movement: 4500 mm
X-AXIS Feed Force: 32 m/min
X-AXIS Rapid traverse: 40 m/min
Y-AXIS Movement: 4000 mm
Y-AXIS Feed Force: 32 m/min
Y-AXIS Rapid traverse: 40 m/min
Z-AXIS Movement: 1500 mm
Z-AXIS Feed Force: 32 m/min
Z-AXIS Rapid traverse: 40 m/min
W-Axis Movement: 1500 mm
B-AXIS Movement: 360° MM
C-AXIS Movement: + - 110° MM

Table

Outer length: 2500 mm
Outer width: 3000 mm
Table load: 15000 kg

Tools

Type of tool holder: HSK 100

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Free passage between the columns 3700 mm
- - 1 turning table Ø face plate 1. 250 mm / max. Load 3. 000 kg
- - 1 turning table Ø face plate 2. 500 mm / max. Load 10. 000 kg
- - Milling plunger Ø 480 x 580 mm
- - Roboter for tool change
- - Digital radio probe, system: renishaw rmp60 with 2 probes
- - Division of the hirth coupling 144 x 2,5°
- - Tool changer rack-type magazine 144-slot + 32-slot load module
- - Pick-up machining module magazine with 9 places
Qualitative Machine Benefits:
- - Spindle orientation
- - Steel cover x axis (three-part) and bellows y axis
- - 2 machine chip conveyors
- - Laser tool measurement, system: blum
- - Coolant supply inside and outside and coolant system
- - Air shower
- - Emulsion mist ww filter systems
- - Extended tool plan system
- - Process monitoring cameras
- - Adjustable crossbeam

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
