HERMLE UWF 720 Milling Machine

Show in original language

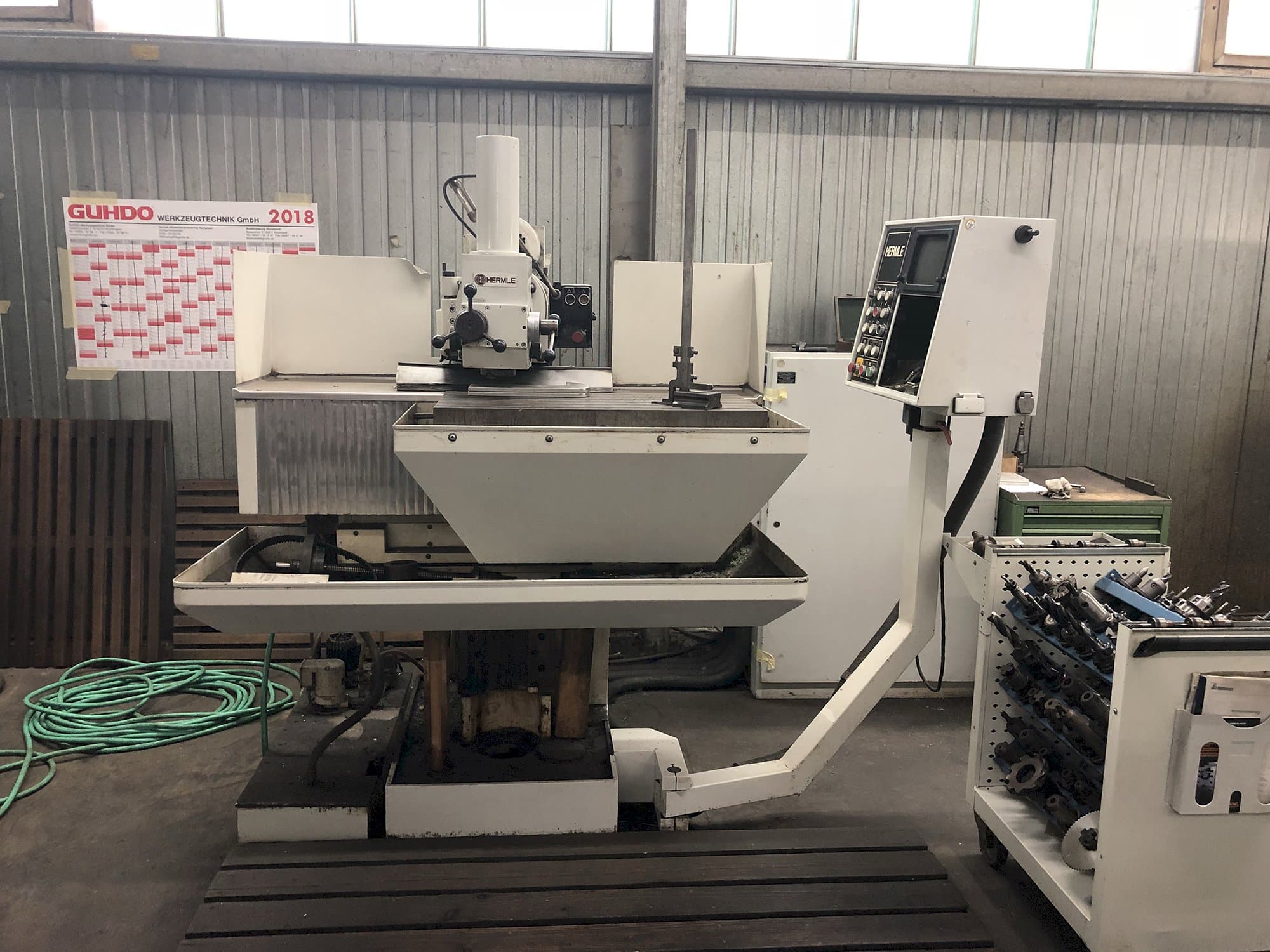

This HERMLE UWF 720 Milling Machine was manufactured in 1985 in Germany. Equipped with a Heidenhain TNC 150 Control unit, this machine counts with a spindle speed up to 2800 rpm.

Overview

brand: HERMLE
year: 1985
MODEL: UWF 720
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE UWF 720

General Data

Measurements width: 2800 mm
Measurements depth: 2900 mm
Measurements height: 1900 mm
Machine weight: 2000 kg

Control Unit

Model: TNC 150
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 2800 rpm 1/MIN

Movement

X-AXIS Movement: 500 mm
Y-AXIS Movement: 360 mm
Z-AXIS Movement: 400 mm

Table

Outer length: 800 mm
Outer width: 390 mm
Number of tslots: 6
Distance between: 63 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
