➤ Used HERMLE C800 U For Sale | gindumac.com

Show in original language

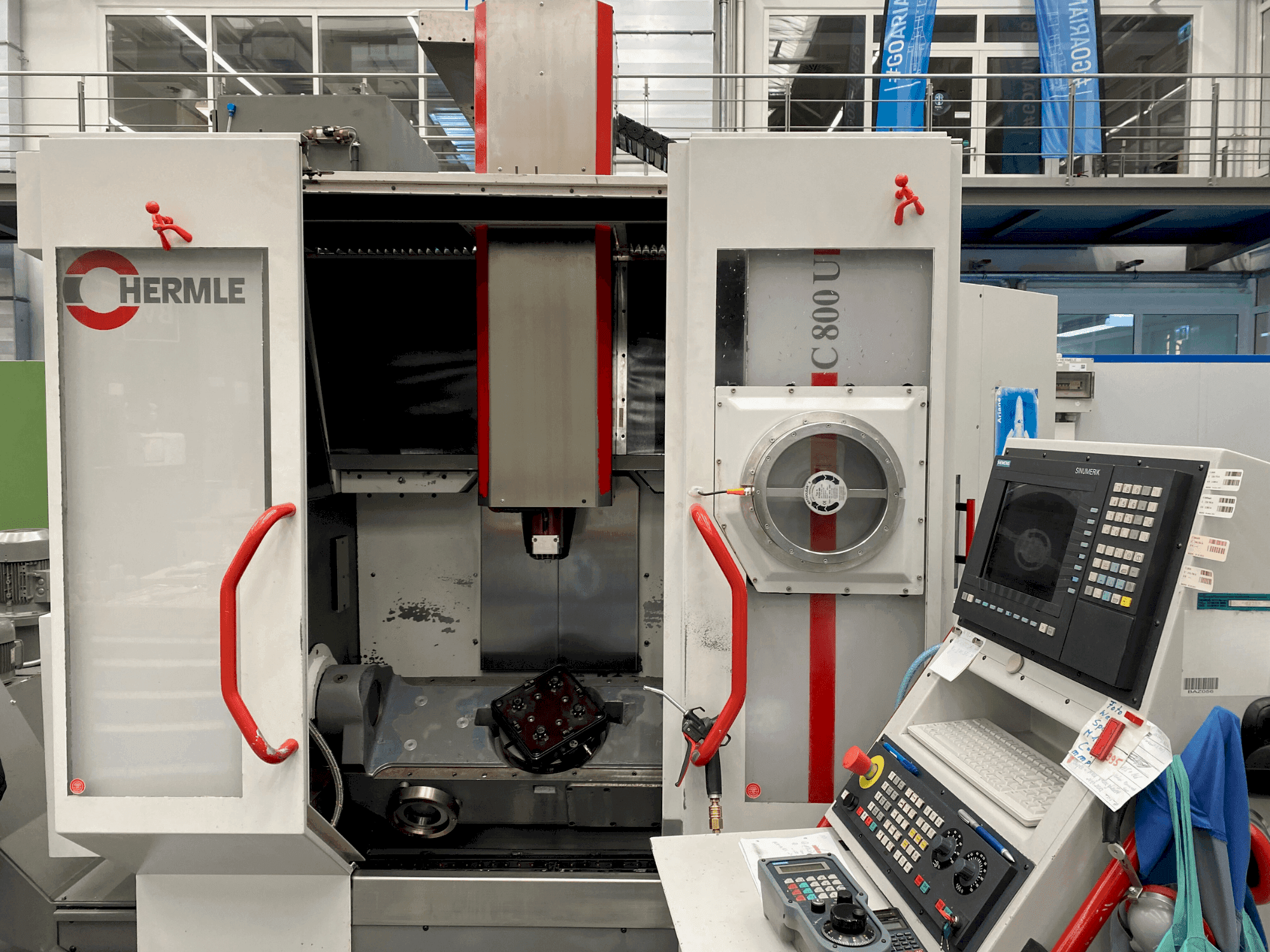

This 5-axis HERMLE C800 U was manufactured in 1998 and features a Siemens control system and an extended tool magazine. With a SK 40 tool holder, it has driven 91886 hours and the spindle has operated for 10682 hours. If you are looking to get high quality milling capabilities consider the HERMLE C800 U machine we have for sale. Contact us for more information.

Overview

brand: HERMLE
year: 1998
MODEL: C800 U
production hours: 10682
application type: Milling
Location: Germany
machine type: CNC Milling Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - HERMLE C800 U

General Data

Measurements width: 2.21 m MM
Measurements depth: 2.7 m MM
Measurements height: 2.93m MM
Machine weight: 7500kg

Control Unit

Brand: SIEMENS

Main drive

Spindle speed range: 20-8000 min-1 1/MIN
Tool taper: SK 40
Number of axis: 5

Movement

X-AXIS Movement: 800 MM
Y-AXIS Movement: 600 MM
Z-AXIS Movement: 500 MM

Tools

Type of tool holder: SK 40

Additional equipment

- Extended tool magazine
- 30 tool positions
- not included in delivery: fixture shown in pictures is not for sale

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Extended tool magazine
- - Main drive: 91886 hours
- - Max. Workpiece size: table top diameter 280mm: diameter 280 x 215mm
- - Spindle diameter in front bearing 70mm
- - Rapid traverse 30m/min / feed force 8000n
- - Work surface: swivelling range +/-90° / clamping surface diameter 280mm / coolant unit 300l; 40l/min at 3 bar
- - Space requirement lxw 4. 5 x 3. 5 m
- - Drive 91886 h / spindle 10682 h
- - The machine has a siemens 840d control system from the 90s, but no shopmill
Qualitative Machine Benefits:
- - In 2023, the servomotors of the x, a and z axes were replaced. The central lubrication unit was also replaced
- - Machine comes with approx. 200 sk40 tool holders (no tools! )

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
