HERMLE - C40UNL-MIL-HER-2005-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HERMLE C40U

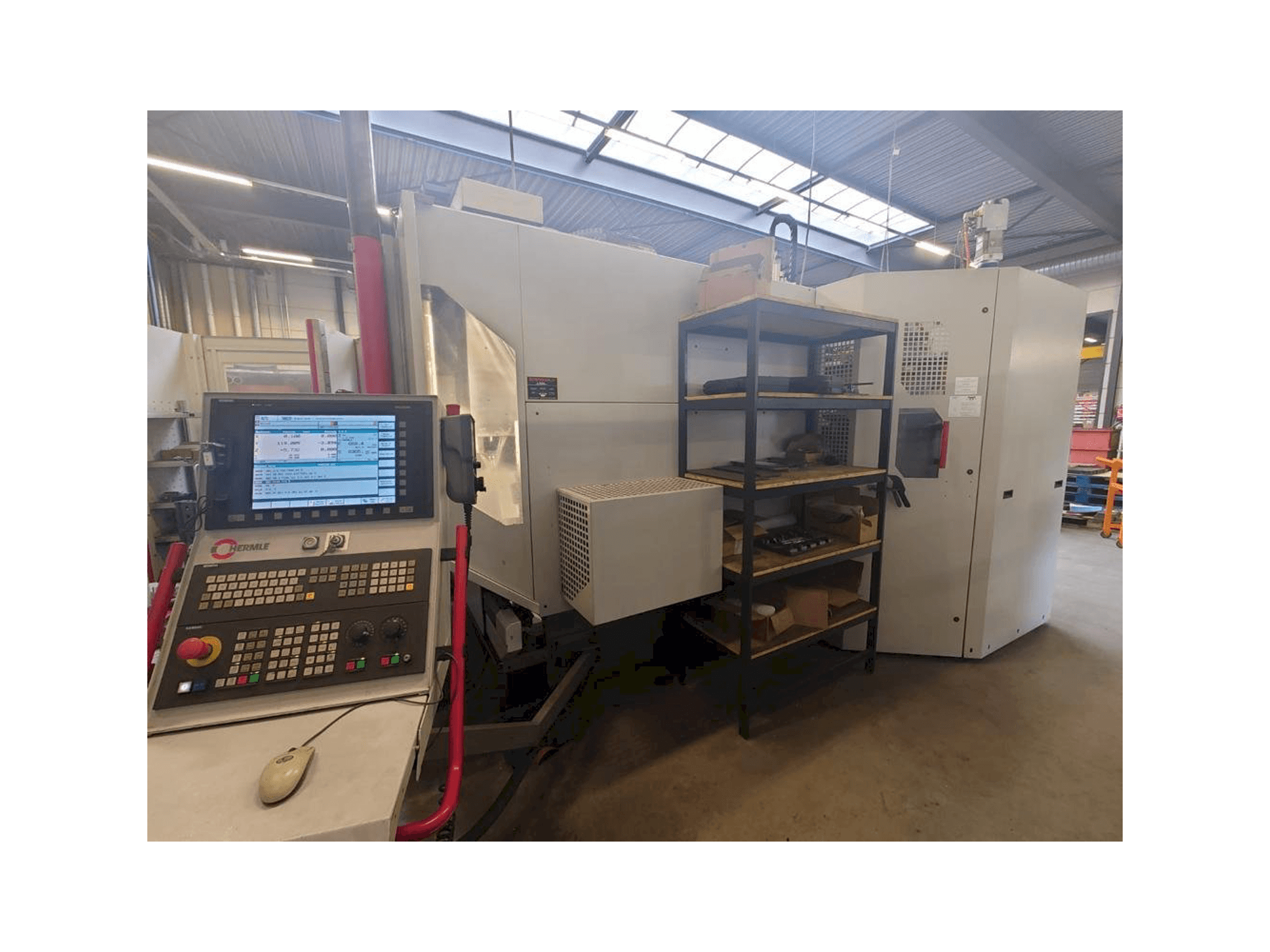

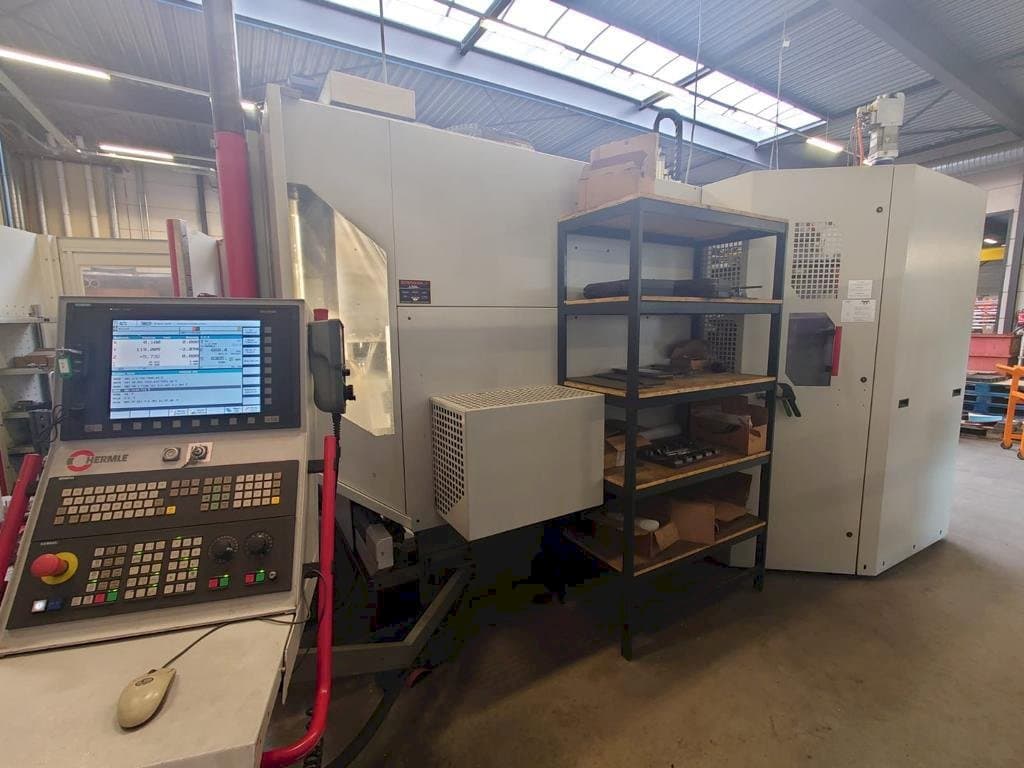

This HERMLE C40U Vertical Machining Center was manufactured in 2005. It has been on for 105485 hours, of which 28788 are spindle hours. It is equipped with a SIEMENS 840D control unit. This 5 axis machine can work with a spindle speed up to 10000 rpm. It includes an EROWA robot system.
Overview
- brand: HERMLE
- year: 2005
- MODEL: C40U
- production hours: 105485
- application type: Milling
- Location: Netherlands
- machine type: Universal Machining Centre
- availability: Sold
- control unit brand: SIEMENS
Technical Information - HERMLE C40U
General Data
- Measurements width: 6545 MM
- Measurements depth: 4725 MM
- Measurements height: 3070 MM
- Machine weight: 10500 KG
Control Unit
- Brand: SIEMENS
- Model: 840D
Main drive
- Spindle speed range: 10000 1/MIN
- Number of axis: 5
Movement
- X-AXIS Movement: 850 MM
- Y-AXIS Movement: 700 MM
- Z-AXIS Movement: 500 MM
Tools
- Type of tool holder: HSK-A 63
Media
- Main electronic connection: 400 V 50 HZ
- Power consumption: 41 KVA
Additional equipment
- - EROWA robot system (Heavy) ERS.2049
Additional Information
- Technical Machine Benefits:
- - Tool spaces: 38
- - Warehouse extension: 87 places
- - Rotary table: 420 mm diameter
- - Rapid traverse: 45 m / min
- - Acceleration: 6 mtr / s2
- - The adaptors are included (ca 50 pcs)
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
