➤ Used HERMLE C40U For Sale | gindumac.com

Show in original language

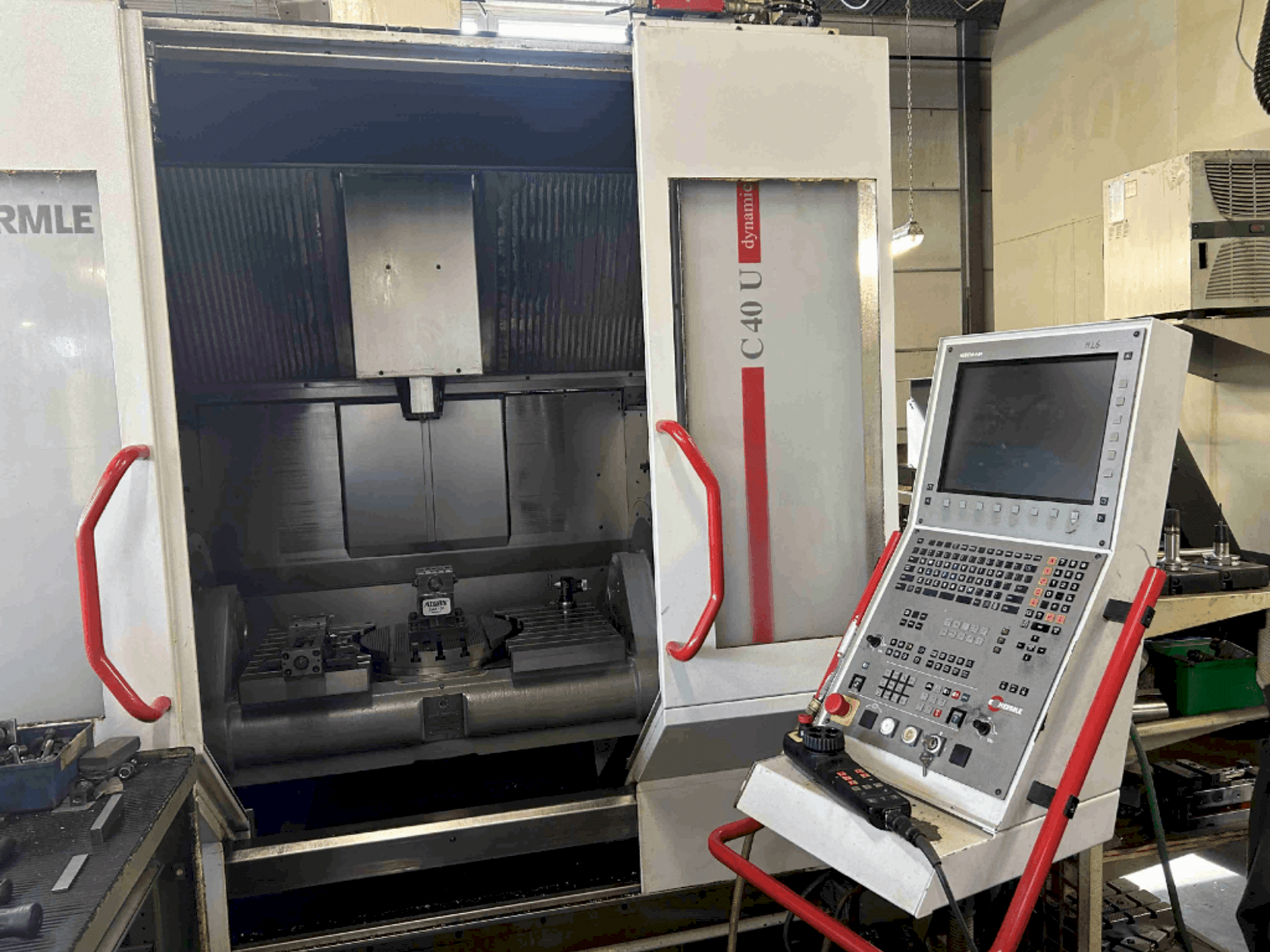

This 5-axis HERMLE C40U universal machining centre was manufactured in 2008. It features an X-axis of 850 mm, Y-axis of 700 mm, Z-axis of 500 mm, and a NC swivelling table Ø420 mm. Equipped with a Heidenhain iTNC 530 control, 38 tool positions, and an internal coolant supply of 80 bar. The spindle was replaced in 2020. For more information about this universal machining centre, please reach out to us.

Overview

brand: HERMLE
year: 2008
MODEL: C40U
production hours: 11089
application type: Milling
Location: Germany
machine type: Universal Machining Centre
availability: Sold

Technical Information - HERMLE C40U

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: SK 40

Movement

X-AXIS Movement: 850 mm
Y-AXIS Movement: 700 mm
Z-AXIS Movement: 500 mm

Additional equipment

- Renishaw measuring probe.
- Cross belt conveyor.

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A-axis position off-centre y = 275 mm.
- - A-axis position centred y = 350 mm.
- - 6-fold rotary feed-through srt Ø420 mm.
- - Nc swivelling table Ø420 mm.
- - Internal coolant supply 80 bar, cross belt conveyor, renishaw measuring probe.
- - Spindle hours of new spindle = 2373 h
- - Only operated in one shift
Qualitative Machine Benefits:
- - Spindle was changed in 2020.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
