- ➤ Used HERMLE C22U with handling system IH30 Universal Centre For sale | gindumac.com

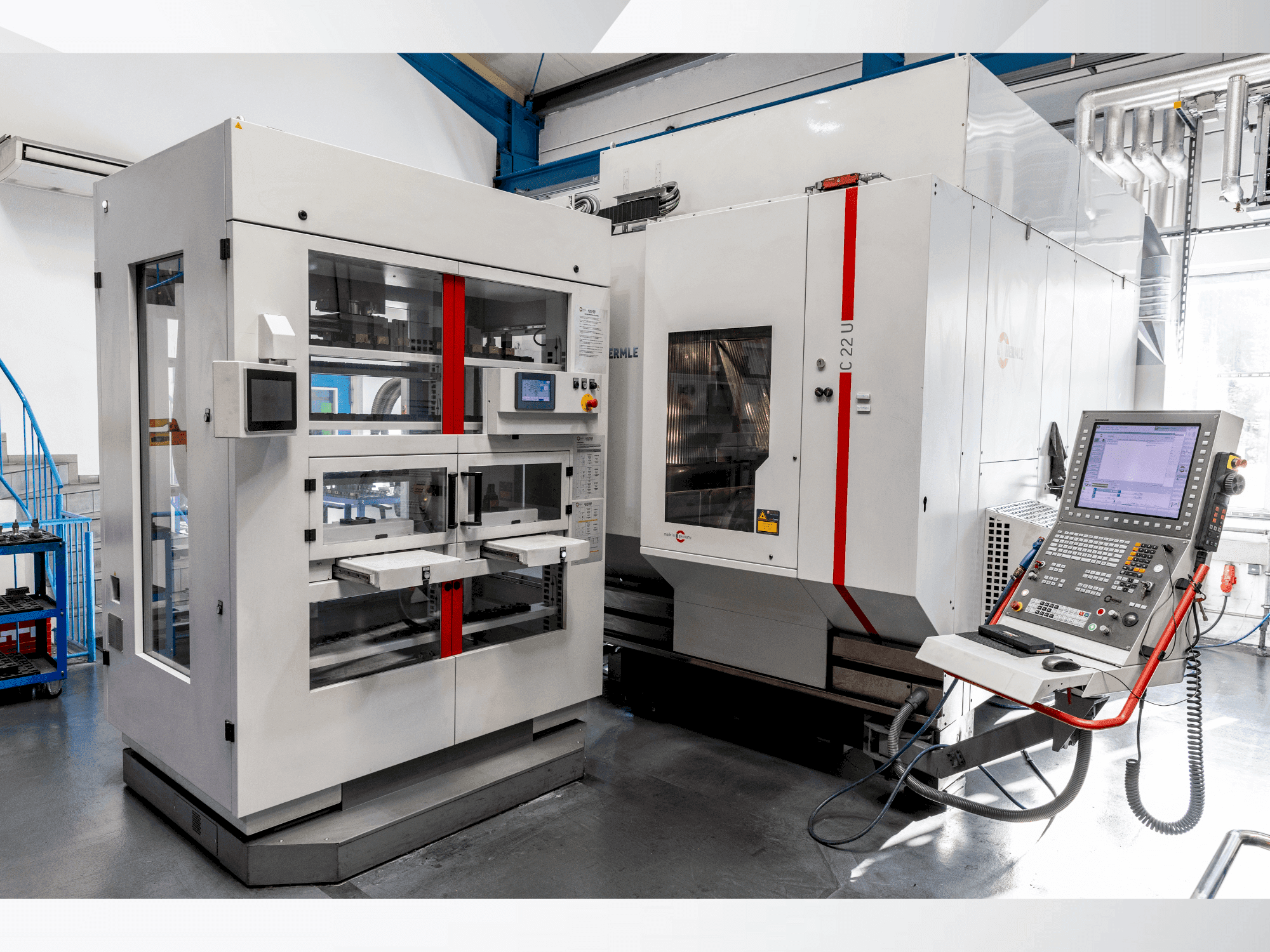

This 5-axis HERMLE C22U with handling system IH30 Machining Centre was manufactured in 2015. It features a Heidenhain TNC 640 control, a swivel rotary table with a 320mm diameter, and a high-speed spindle capable of 42,000 rpm. The machine includes a 65-tool magazine with HSK-E40 holders, an automatic cabin door, and a robust coolant system. Ideal for precision machining, the HERMLE C22U with handling system IH30 offers dynamic efficiency and precision. For more information about this Machining Centre, please reach out to us.
Overview
- brand: HERMLE
- year: 2015
- MODEL: C22U with handling system IH30
- application type: Milling
- Location: Germany
- machine type: Machining centers (universal)
- availability: Sold
- control unit brand: Heidenhain
Technical Information - HERMLE C22U with handling system IH30
General Data
- Measurements width: 1700 mm
- Measurements depth: 1740 mm
- Measurements height: 2400 mm
- Machine weight: 9000 kg
Control Unit
- Brand: Heidenhain
- Model: TNC 640
Main drive
- Spindle speed range: 42000 1/MIN
- Tool taper: HSK E40
- Number of axis: 5
Tools
- Slots in storage: 65
Additional equipment
- - It comes with Handling system IH30
- - Rigid clamping table
- - Coolant unit standard
- - Chip chute left
- - Polycarb safety disks
- - 6-fold rotary feed-through
- - Outer MMS
- - BLUM tool breakage/measurement A1
- - Chuck 3-R PowerGrip on system table
- - Incl. adapter plate for system table
Additional Information
- Technical Machine Benefits:
- - 55 tool positions sk40
- - Swivel rotary table stp diameter 320mm //one-sided drive of the a-axis diameter 320
- - Table top diameter 320mm
- - Blow air through the center of the spindle
- - Sealing air for scales
- - Emulsion mist extraction incl. Secondary filter
- - Automatic cabin door // automatic cabin roof
- - Electric heat compensation heidenhain // electric manual control module heidenhain
- - Ih30 shelf its50 pallets and its78
- - Dynamic efficiency and dynamic precision for enhanced performance, high spindle speed for precision machining, comprehensive handling and tooling options integrated into the system.
- Qualitative Machine Benefits:
- - Standard cabin
- - Kinematicopt hardware
- - Blow-off device
- - Pneumatic extension 1:2
- - External suction unit
- - Control panel for hacs on the ih30
- - Parallel gripper incl. Specific gripper finger set
- - Exchangeable gripper 3r gripper finger set
- - High-quality components such as heidenhain control and blum tool systems ensure reliability and precision, advanced safety features like polycarb safety disks and automatic cabin doors enhance operational safety.
- - Clamping system included and keller graphite extraction system included
- - The machine includes a KUHNKE PLC software for enhanced control. Features a magazine capacity of 50 pallets and a standard gripper based on a fork gripper with pneumatic holding pins. THE MACHINE PROCESSES synthetic materials. New spindle and bearings 2018 (Hermle) Coolant tray included Kinematic OPT included. With ball on pallet.
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
