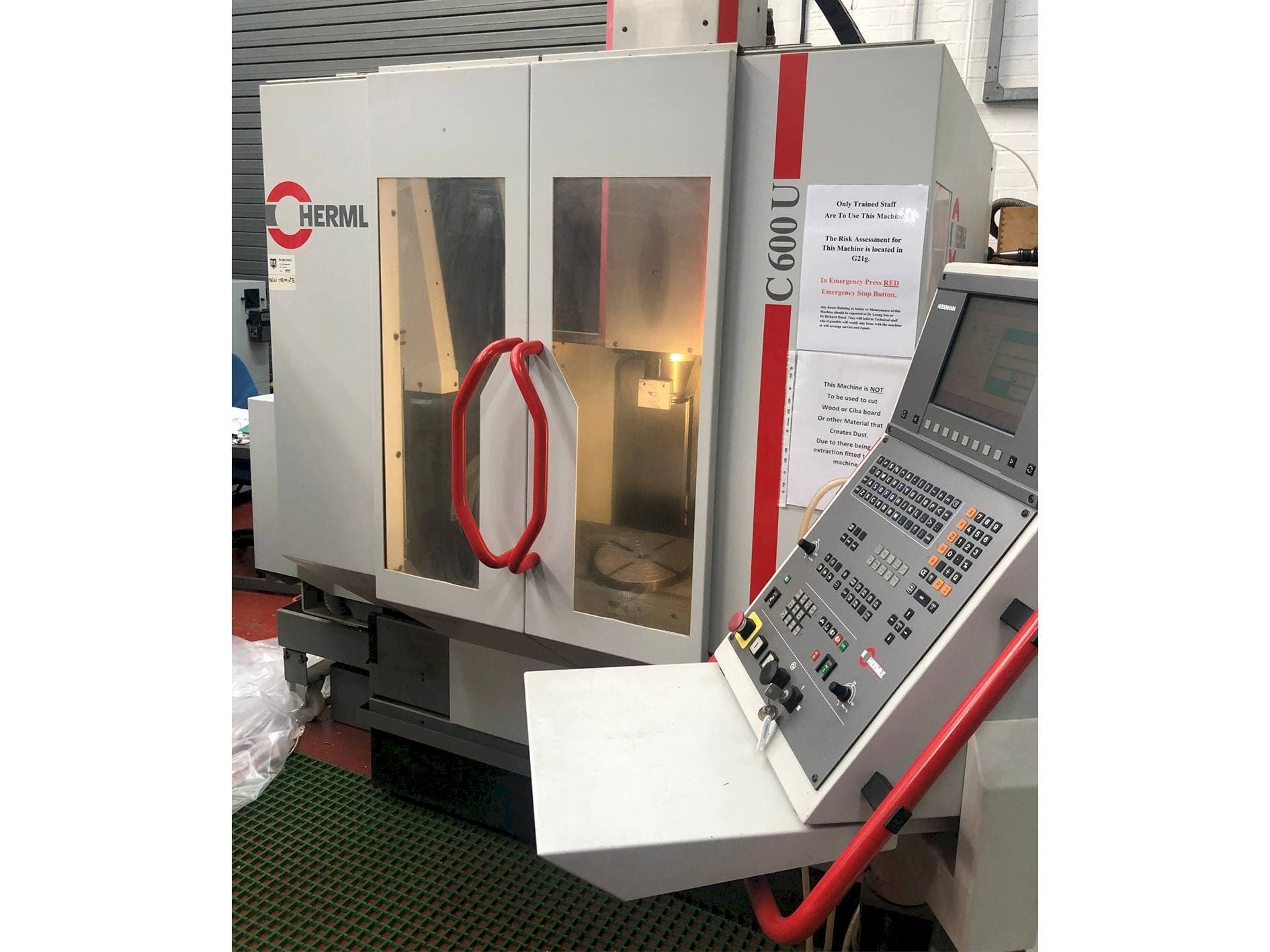

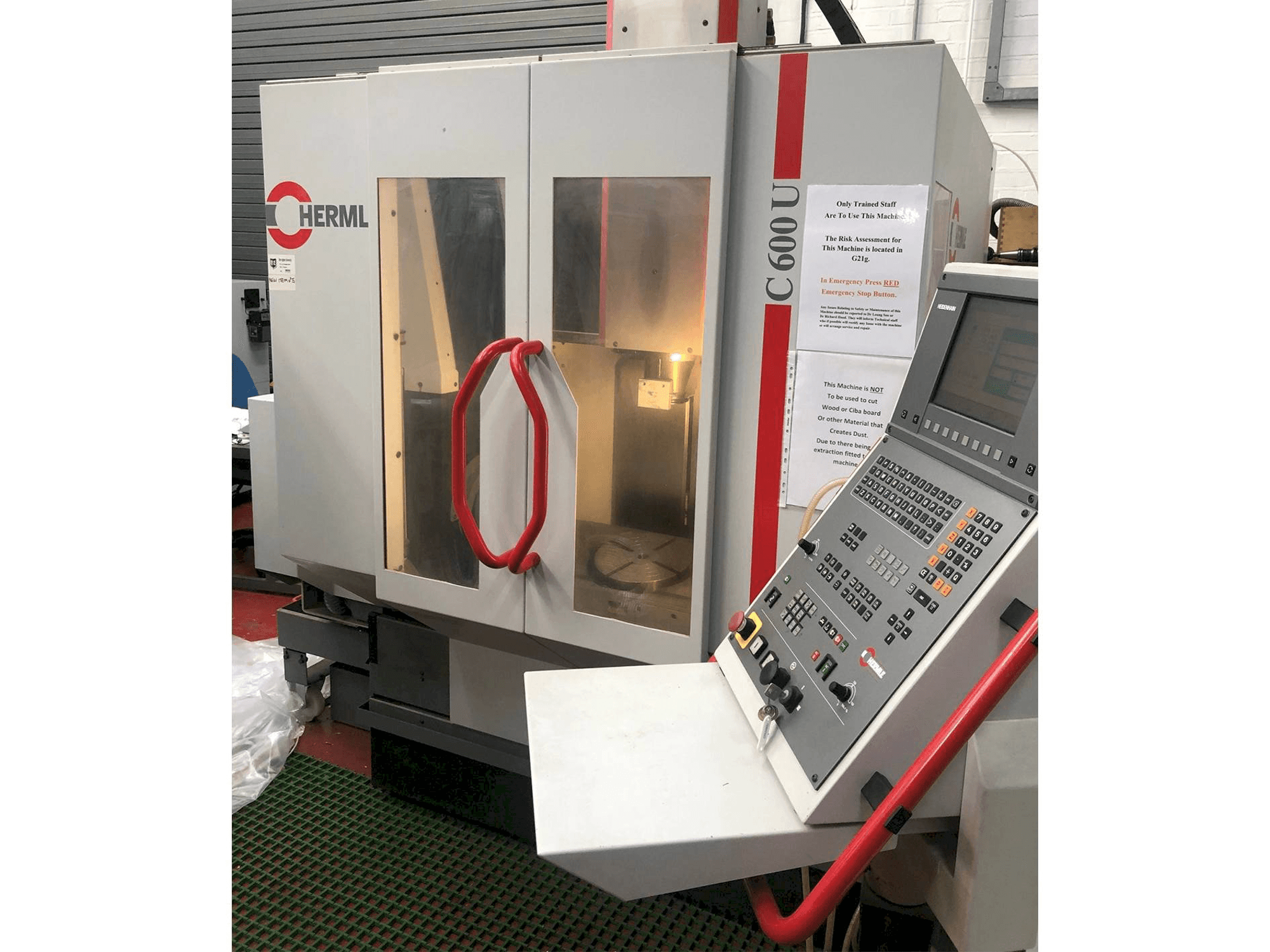

HERMLE C 600 U Vertical Machining Center.

Show in original language

This HERMLE C 600 U Vertical Machining Center was manufactured in 1999 in Germany. This 5 axis machine has 16483 production hours of which 1525 are spindle hours. It is equipped with a Heidenhain iTNC 426 control unit and can work with a spindle speed up to 12000 rpm. Machine in very good condition with low hours.

Overview

brand: HERMLE
year: 1999
MODEL: C 600 U
production hours: 16483
application type: Milling
Location: United Kingdom
machine type: Universal Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HERMLE C 600 U

General Data

Measurements width: 2594 mm
Measurements depth: 2490 mm
Measurements height: 2750 mm
Machine weight: 6700 kg

Control Unit

Model: iTNC 426
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 600 mm
Y-AXIS Movement: 450 mm
Z-AXIS Movement: 450 mm

Workpiece

Workpiece weight: 100 kg

Tools

Slots in storage: 30
Max tool diameter: 80/125 mm
Max tool length: 250 mm
Type of tool holder: DIN 40

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - C axis 0. 001 degrees (360 degree full rotation)
- - A axis -/+ 110 degrees
- - Table diameter 280 mm
- - Rapid feedrate 30 m/min.
- - Max & min distance from table to spindle 40 - 450mm
- - Spindle motor power 7kw
- - Coolant
Qualitative Machine Benefits:
- - Very good condition with low hours
- - Machine from a university, never worked in a factory

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
