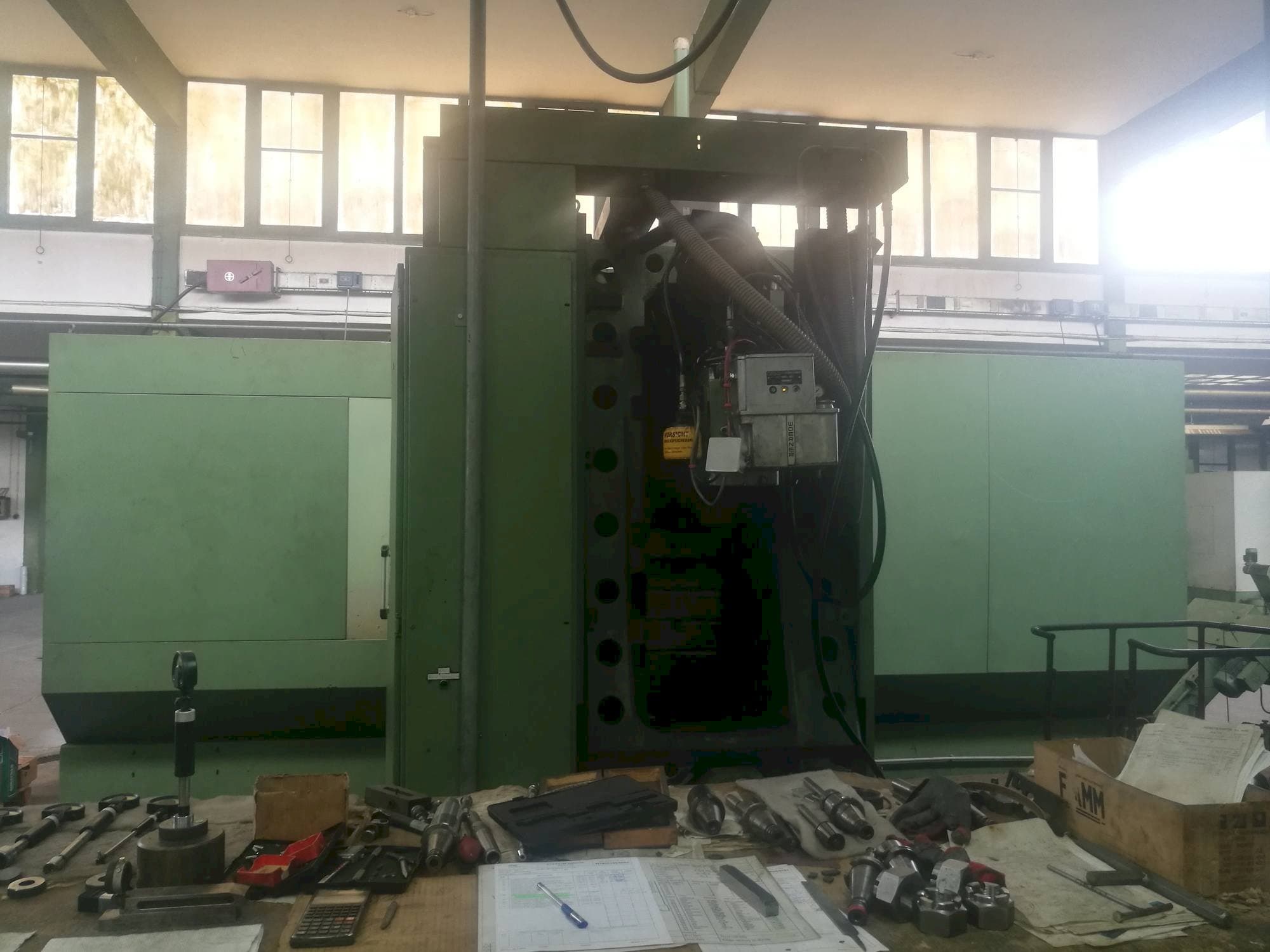

HELLER PFU3 Universal Machining Center

Show in original language

This HELLER PFU3 Universal Machining Center was made in 1987 in Germany and has been working for approximately 47000 hours. Equipped with a HELLER UNI-PRO NC 80-C Control unit, this machine counts with a spindle speed of 2000 rpm.

Overview

brand: HELLER
year: 1987
MODEL: PFU3
production hours: 47000
application type: Milling
Location: Croatia
machine type: Universal Machining Centre
availability: Sold

Technical Information - HELLER PFU3

General Data

Measurements width: 4100 mm
Measurements depth: 6500 mm
Measurements height: 3380 mm
Machine weight: 10000 kg

Control Unit

Model: UNI-PRO NC 80-C
CNC main language: German

Main drive

Number of spindles: 1
Spindle speed range: 2000 1/MIN

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 710 mm
Z-AXIS Movement: 800 mm

Workpiece

Workpiece x: 2100 mm
Workpiece y: 710 mm
Workpiece z: 800 mm
Workpiece weight: 3000 kg

Table

Outer length: 2100 mm
Outer width: 710 mm
Number of tslots: 7

Tools

Type of tool holder: SK50

Media

Main electronic connection: 380V/50Hz
Power consumption: 30 kVA
Chip conveyor: Yes

Additional equipment

- 5 pieces- toolholder

Additional Information

Machine history

Material type: Steel
End product: Machine parts, slides
Industries: Automotive

Machine Benefits

Technical Machine Benefits:
- - Horizontal and vertical milling head
- - Big table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
