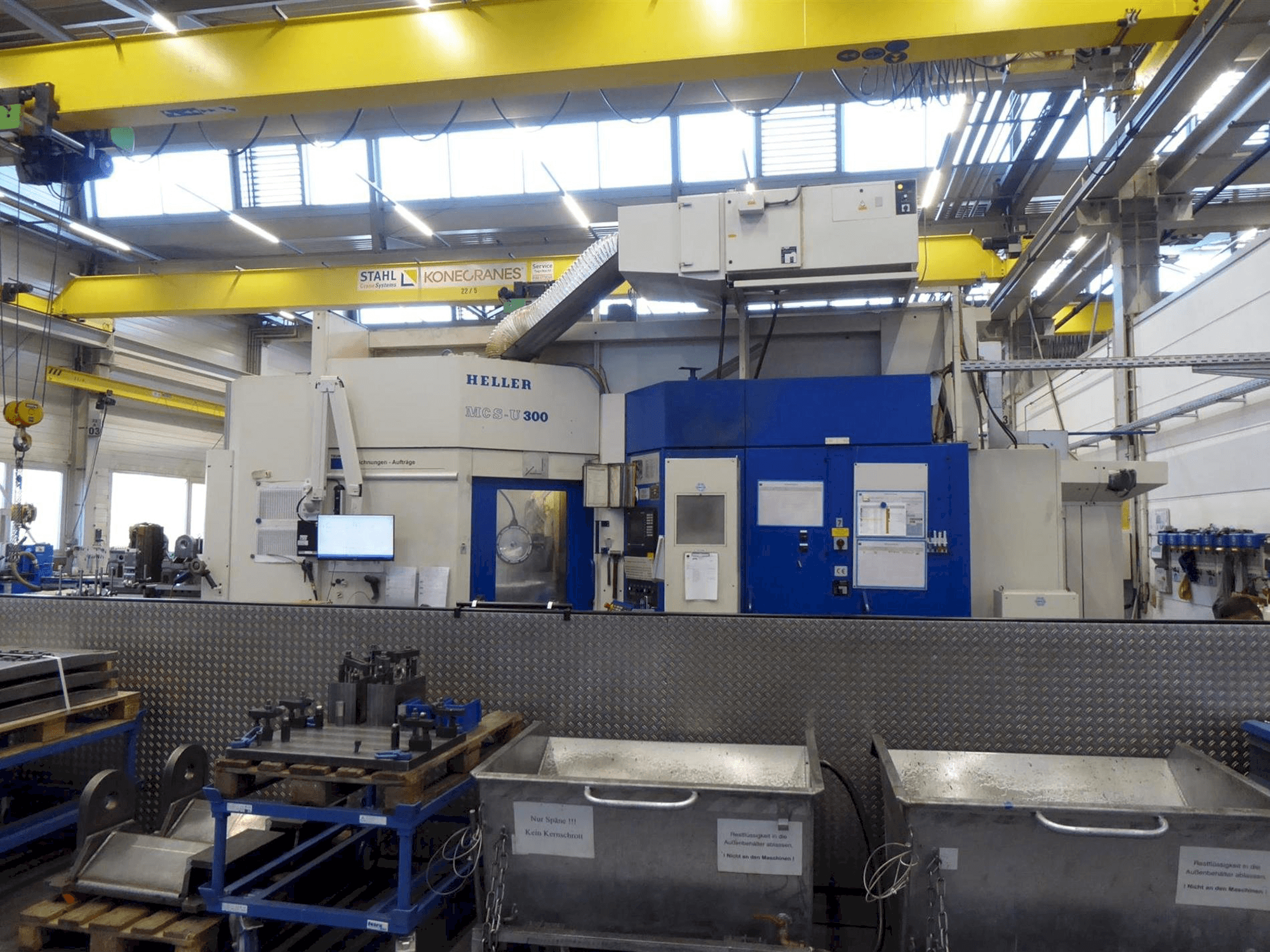

Front view of HELLER MCS-U 300  machine

HELLER - MCS-U 300DE-MIL-HEL-1999-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This HELLER MCS-U 300 Horizontal Machining Center was made in Germany in the year 1999. It has been operative for approximately 41200 production hours. It is operated through a SIEMENS SINUMERIK 840D control unit. This machine incorporates a spindle speed range up to 4500 rpm. It includes a tool holders (120 plus pieces), a renishaw probe, and a set-up pallets (9 pieces) as additional equipment. It has been regularly serviced and maintained. In 2018 a new spindle was installed.

Overview

  • brand: HELLER
  • year: 1999
  • MODEL: MCS-U 300
  • production hours: 41200
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - HELLER MCS-U 300

General Data

  • Machine weight: 23500 kg

Control Unit

  • Model: Sinumerik 840D
  • Brand: SIEMENS

Main drive

  • Number of spindles: 1
  • Spindle speed range: 4500 1/MIN

Movement

  • X-AXIS Movement: 1000 mm
  • Y-AXIS Movement: 800 mm
  • Z-AXIS Movement: 1100 mm

Workpiece

  • Workpiece x: 1250 mm
  • Workpiece y: 1200 mm

Table

  • Outer length: 630 mm
  • Outer width: 800 mm

Tools

  • Slots in storage: 120
  • Max tool diameter: 100/270 mm
  • Type of tool holder: SK 50

Media

  • Power consumption: 68 kVA
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional equipment

    • - Tool holders (120 plus pieces)
    • - Renishaw probe
    • - Set-up pallets (9 pieces)

    Additional Information

      Machine history

      • End product: Machinery parts
      • Industries: Machinery building

      Machine Benefits

      • Technical Machine Benefits:
        • - 2 pallets (indexing 360 x 1 degres)
        • - Spindle diameter 110 mm
        • - Spindle motor (s1-100% / s6-40% / s6-25%) 28/43/50 kw
        • - Spindle torque (s1-100% / s6-40% / s6-25%) nm 536/822/955
        • - Cooling thru spindle max. 50 bar
      • Qualitative Machine Benefits:
        • - Regularly serviced and maintained.
        • - New spindle installed in 2018

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
