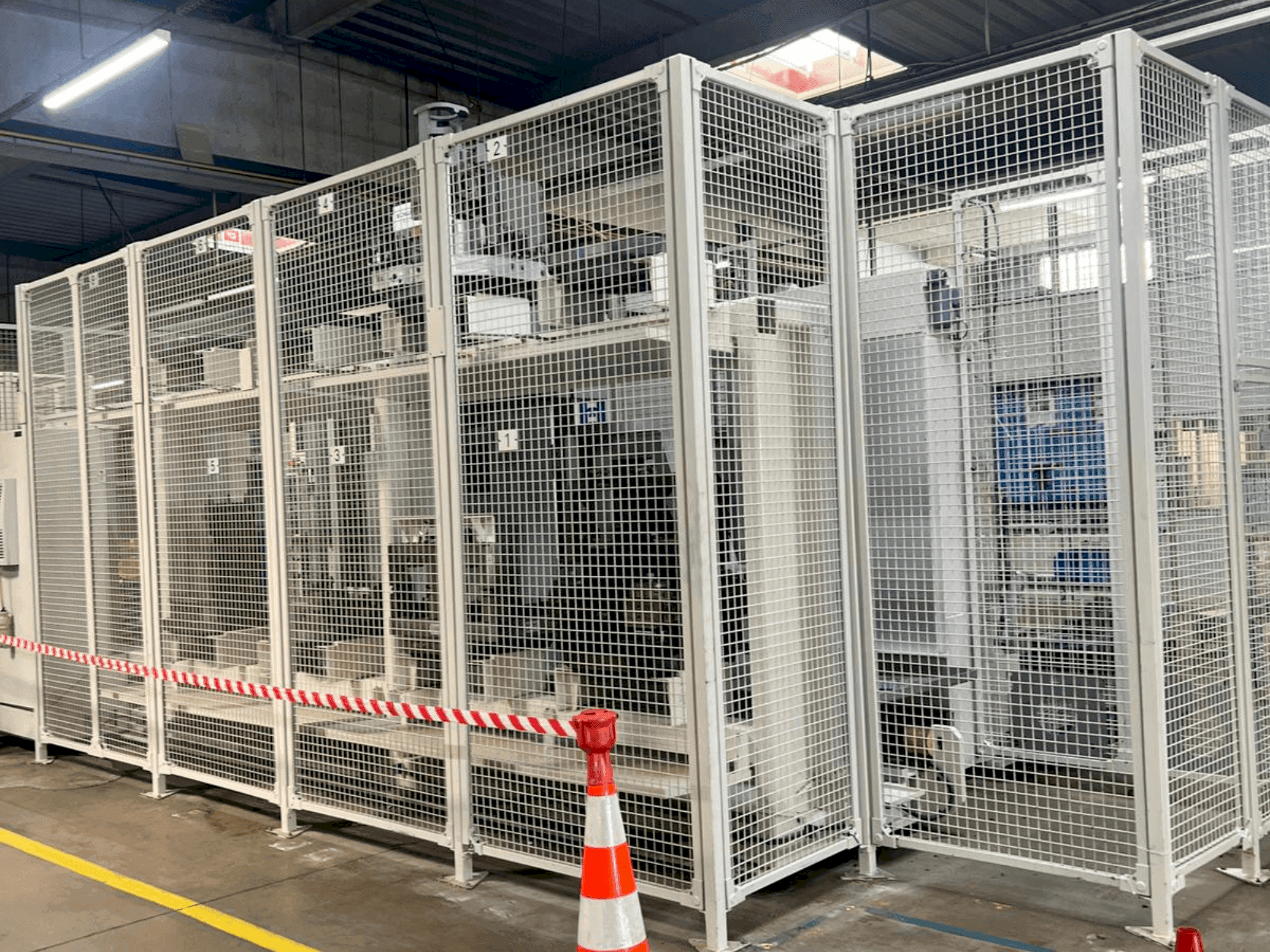

HELLER - MCH 250DE-MIL-HEL-2006-00003

Additional equipment

• - Magazine type: Chain magazine
• - Magazine capacity: 50 to 100 tools (optional)
• - Rotary Table: Rotary Axis (high precision option) Division: 360000 x 0.001° angles // Indexing accuracy: 10 seconds // Swivel times for 45°/180°: 0.9 s / 1.8 s
• - Coolant tank (basic): Approx. 1000 liters
• - Coolant pump flow rate at 3 bar: 200 liters/min
• - Coolant pump flow rate at 12 bar: 40 liters/min
• - Coolant tank (extended): Approx. 1500 liters
• - Coolant pump flow rate (extended) at 3 bar: 210 liters/min
• - Coolant pump flow rate at 50 bar: 28 liters/min
• - Coolant pump flow rate at 70 bar: 22 liters/min

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Hollow shaft unit (option) drive power/torque [max. ]: 72 kw / 460 nm // reinforced gearbox unit [max. ]: 60 kw / 1145 nm
  • - Traverse speed (x, y, z): 50000 mm/min
  • - Acceleration (dynamic package): 4. 0 m/s² in x, y, and z // acceleration: 7. 0 m/s²
  • - Maximum permissible clamping weight (centered): 800 dan
  • - Division: 360 x 1° angles
  • - Indexing accuracy: 6 seconds
  • - Swivel times for 45°/180°: 2. 7 s / 3. 5 s
  • - Maximum allowable tool moment at gripper: 2200 ncm
  • - Chip-to-chip time: 4. 1 s to 5. 1 s
  • - Direct, absolute linear scales with highest resolution in x, y, and z
• Qualitative Machine Benefits:
  • - Installation data
  • - Machine weight: approx. 19,000 dan
  • - Total power requirement (basic): approx. 79 kva
  • - Power supply: 400 v / 50 hz
  • - Disc blowing system: yes
  • - Work area flushing: yes

Extra information

• - Machine still under power / linear feeder from Schuler and 8 pallets are included
