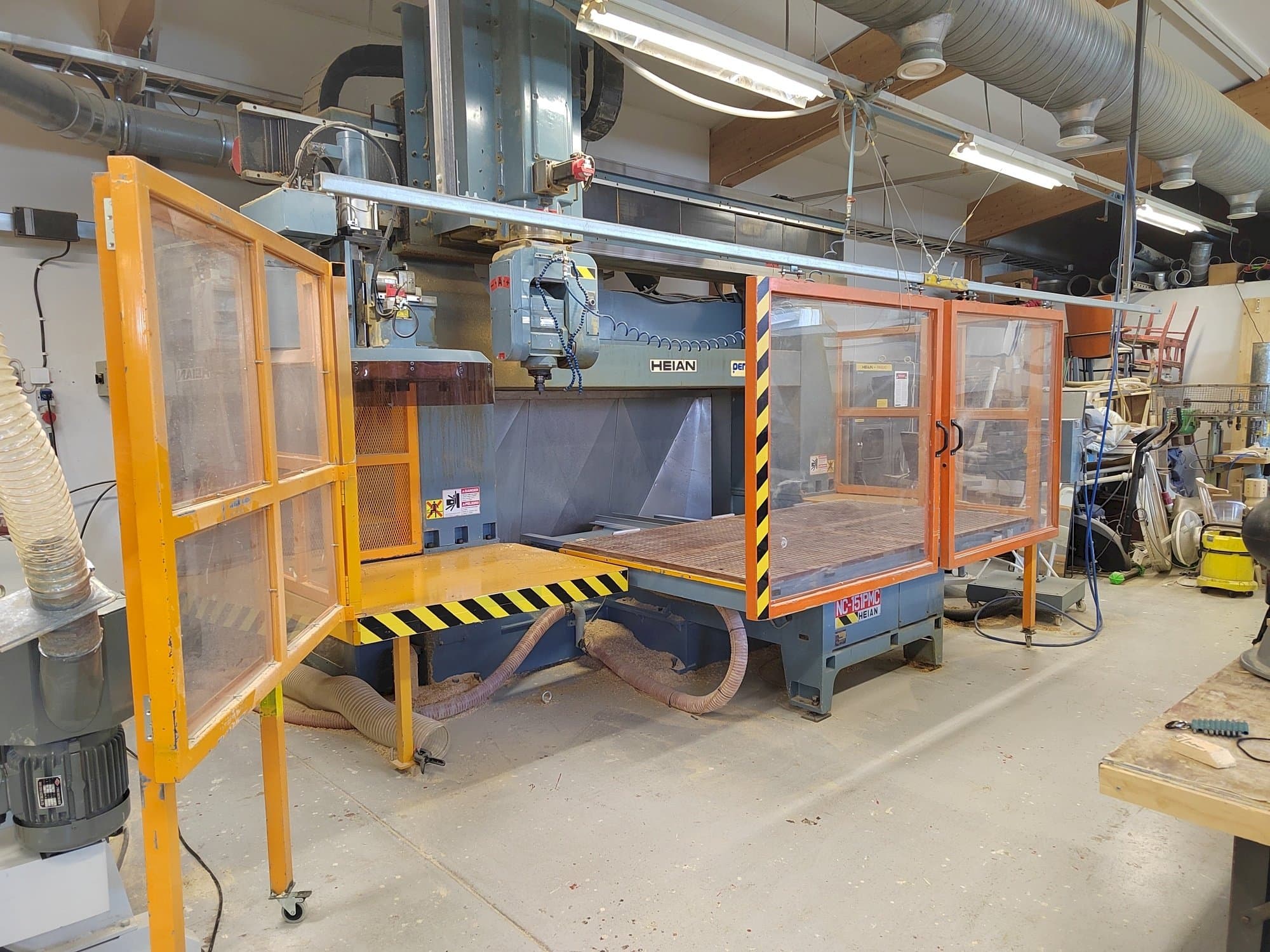

HEIAN NC 151 Vertical machining center

Show in original language

This HEIAN NC 151 Vertical machining center was manufactured in the Japan in the year 1994. This 5 axis machine is operated through a Fanuc Series 15-M control unit . It has a spindle speed range 0 - 18000 rpm. It has a 2500 x 1300 mm table. Machine in very good condition, ready for testing.

Overview

brand: HEIAN
year: 1994
MODEL: NC 151
application type: Milling
Location: Finland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HEIAN NC 151

General Data

Measurements width: 5800 mm
Measurements depth: 2725 mm
Measurements height: 3936 mm
Machine weight: 9000 kg

Control Unit

Model: Series 15-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 0 - 18000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2750 mm
Y-AXIS Movement: 1300 mm
Z-AXIS Movement: 800 mm

Table

Outer length: 2500 mm
Outer width: 1300 mm

Tools

Slots in storage: 16
Max weight: 4 kg
Max tool diameter: 120 mm
Max tool length: 150 mm
Type of tool holder: MAS BT35

Media

Main electronic connection: 400 V
Power consumption: 50 KVA

Additional Information

Machine history

Material type: Wood
End product: Moulds for furniture manufacturing

Machine Benefits

Qualitative Machine Benefits:
- - In very good condition
- - Ready for testing

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
