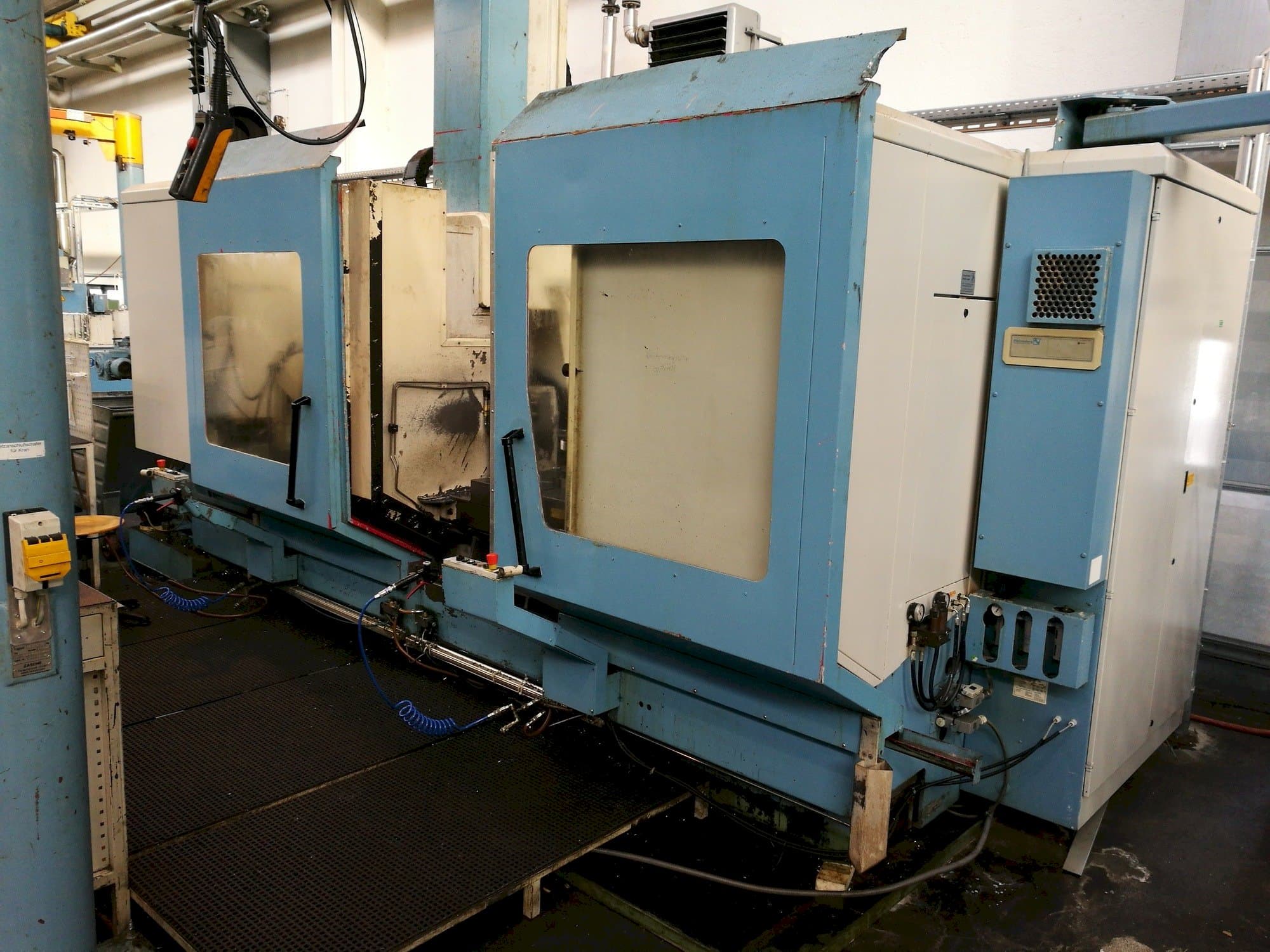

HEDELIUS BC 60 Vertical Machining Center

Show in original language

This HEDELIUS BC 60 Vertical Machining Center was made in 1999 in Germany. This machine incorporates a spindle diameter of 90 mm and 30 working tools.

Overview

brand: HEDELIUS
year: 1999
MODEL: BC 60
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HEDELIUS BC 60

General Data

Measurements width: 6500 mm
Measurements depth: 3700 mm
Measurements height: 3700 mm
Machine weight: 19000 kg

Movement

X-AXIS Movement: 2500 mm
Y-AXIS Movement: 630 mm
Z-AXIS Movement: 750 mm

Workpiece

Workpiece drm: 80 mm
Workpiece weight: 3000 kg

Table

Outer length: 3220 mm
Outer width: 650 mm

Media

Main electronic connection: 400 V
Power consumption: 40 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle diameter 90 mm
- - Number of t-slots 5
- - Slot width 22 mm
- - Slot distance 125 mm
- - Table height above floor 950 mm
- - Number of tools 30

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
