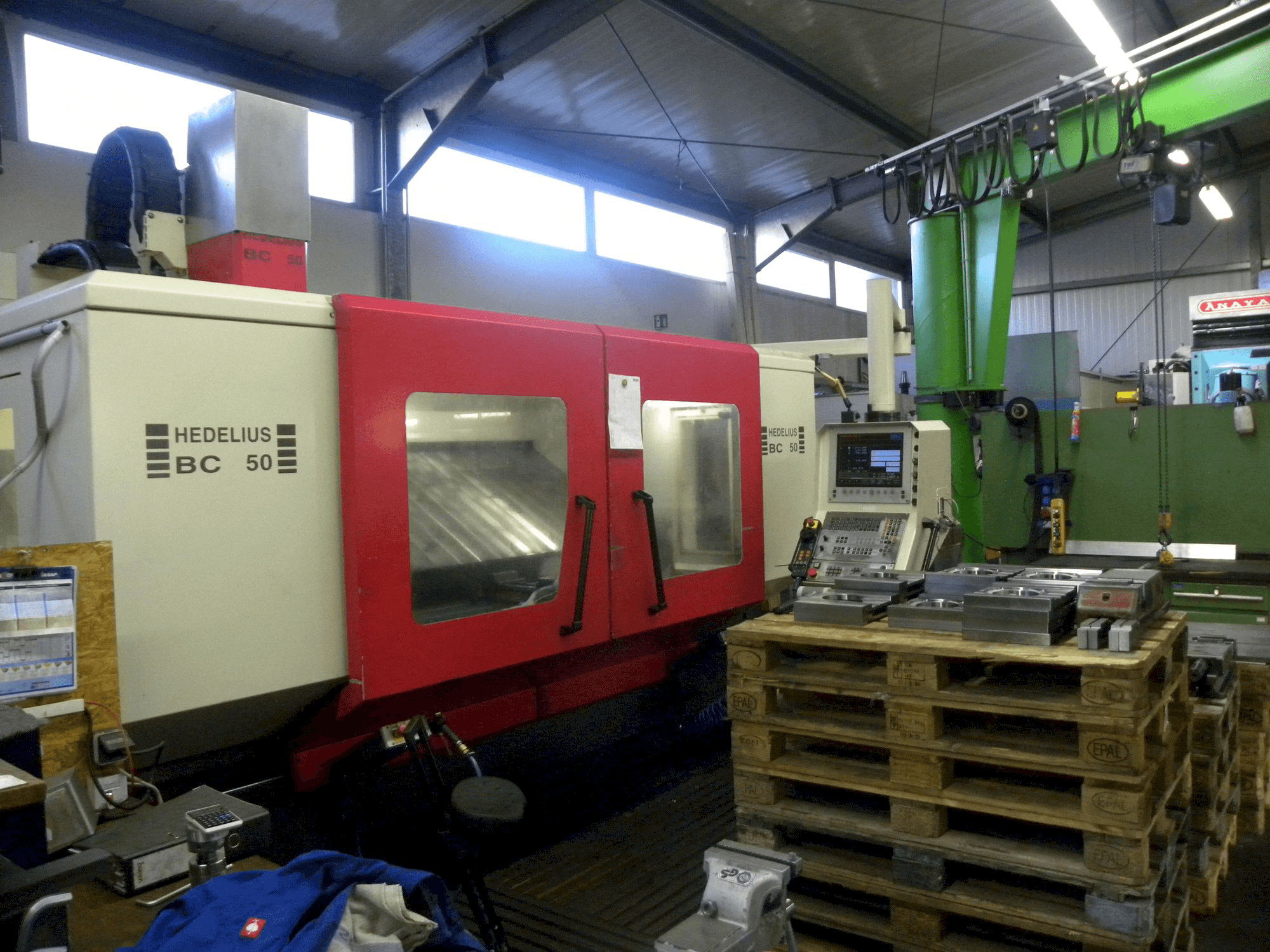

HEDELIUS BC-50 Vertical Machining Center

Show in original language

This HEDELIUS BC-50 Vertical Machining Center was made in 1998. This 5 axis machine incorporates a spindle speed range 30 - 8000 rpm, and a max. tool diameter 80 mm. It is equipped with a Heidenhain TNC 430 PA.

Overview

brand: HEDELIUS
year: 1998
MODEL: BC-50
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - HEDELIUS BC-50

Control Unit

Model: TNC 430 PA
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 30 - 8000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 2100/3200 mm
Y-AXIS Movement: 520 mm
Z-AXIS Movement: 500 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - The monitor is an industrial flat screen, retrofit
- - Dividing head 4+5 axis and partition
- - Max. Tool diameter : 80 mm
- - With free auxiliary platens 35 mm : 125 mm
- - Max. Tool length: 330 mm
- - Max. Tool weight: 15 kg
- - Tool holder: iso 40

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
