Hartford HEP 2150 Milling Machine

Show in original language

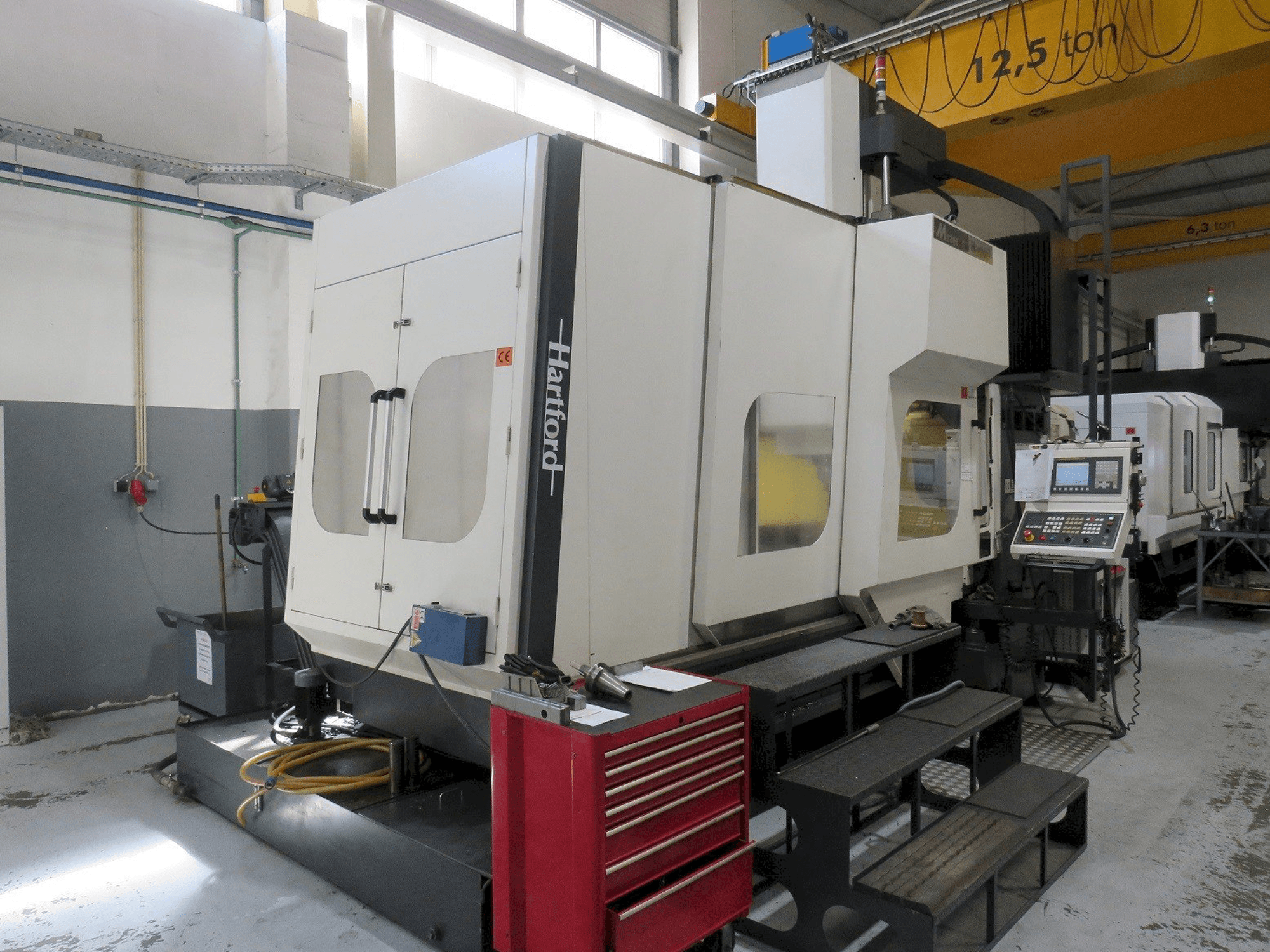

This Hartford HEP 2150 Milling Machine was built in 2013. It is equipped with a FANUC AI300 (18iMB) control unit. This machine can work with a spindle speed of 6000 rpm, and a table size 2000 x 400 mm.

Overview

brand: HARTFORD
year: 2013
MODEL: HEP 2150
application type: Milling
Location: Portugal
machine type: Gantry Milling Machine
availability: Sold
control unit brand: FANUC

Technical Information - HARTFORD HEP 2150

Control Unit

Model: AI300 (18iMB)
Brand: FANUC

Main drive

Spindle speed range: 6000 rpm 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 2250 mm
Y-AXIS Movement: 1500 mm
Z-AXIS Movement: 780 mm

Table

Outer length: 2000 mm
Outer width: 1400 mm

Tools

Type of tool holder: BT-50 / 32ATC

Media

Chip conveyor: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Dist. Between columns: 1600 mm
- - Door height: 930 mm
- - Dist. From spindle nose to table: 150-920 mm
- - X/y/z axes linear scale
- - X/y axes linear guide way
- - Z axis box way
- - Oil skimmer
- - Spindle oil cooler

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
