➤ Used Hartford HCMC-18 - Vertical Machining Center

Show in original language

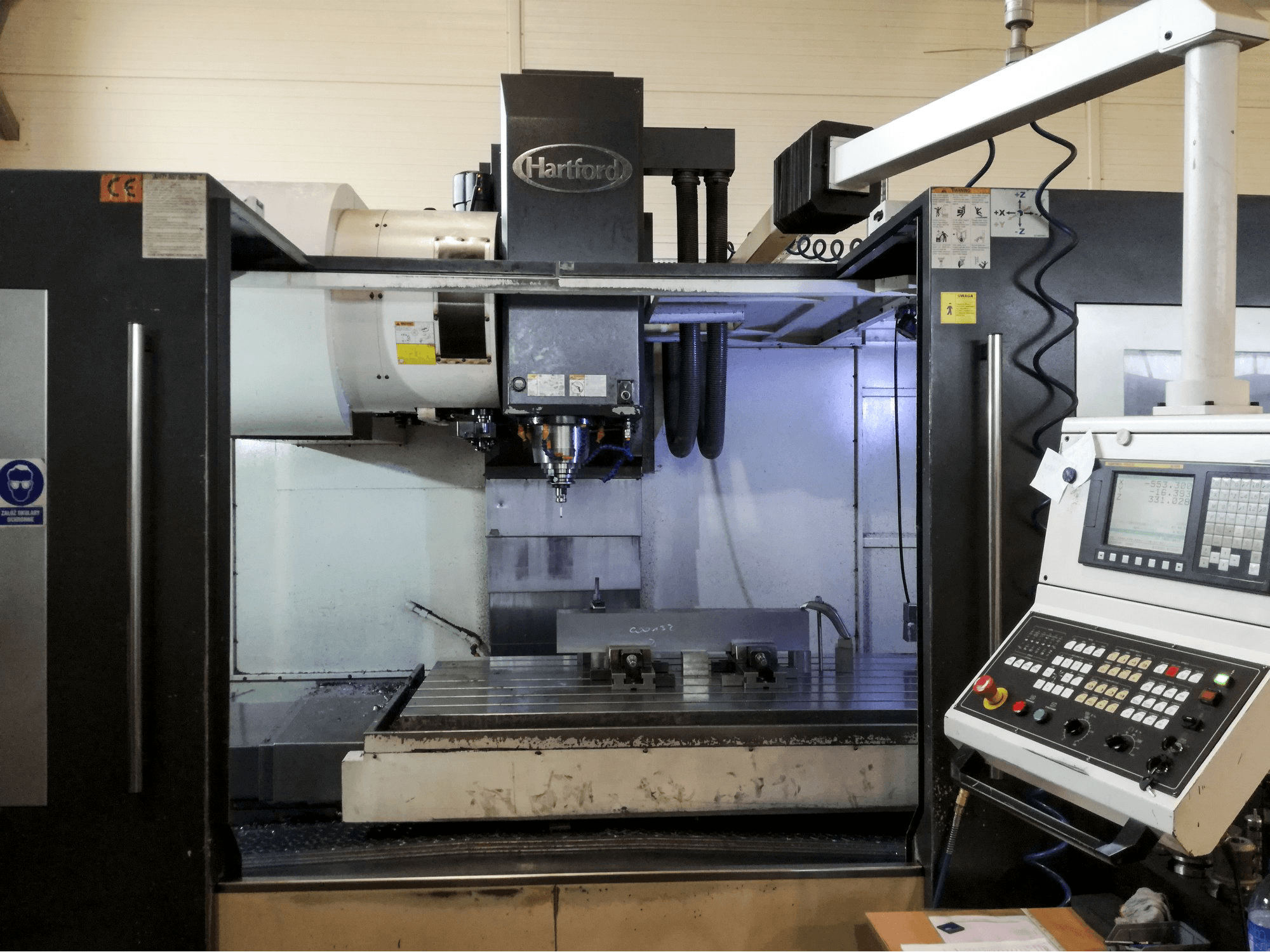

This Hartford HCMC-18 Vertical Machining Center was manufactured in 2011 in Taiwan and has a working record of 18101 production hours since then. The machine is equipped with a FANUC AI100 Control unit and stands out due to its big working table and its spindle power. As additional equipment, this machine includes a second chip conveyer and two measuring probes: Renishaw TS 27 and Renishaw OMP 60.

Overview

brand: HARTFORD
year: 2011
MODEL: HCMC-18
production hours: 18101
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: FANUC

Technical Information - HARTFORD HCMC-18

General Data

Measurements width: 4700 mm
Measurements depth: 3950 mm
Measurements height: 3340 mm
Machine weight: 16700 kg

Control Unit

Model: AI100
Brand: FANUC

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 920 mm
Z-AXIS Movement: 700 mm

Table

Outer length: 2000 mm
Outer width: 920 mm

Tools

Max tool diameter: 125 mm
Max tool length: 300 mm

Media

Main electronic connection: 380 V / 50 Hz
Power consumption: 48 kVA
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Renishaw TS 27 Measuring Probe
- Renishaw OMP 60 Measuring Probe
- Second Chip Conveyor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
