➤ Used HARTFORD HB-3190S For sale | gindumac.com

Show in original language

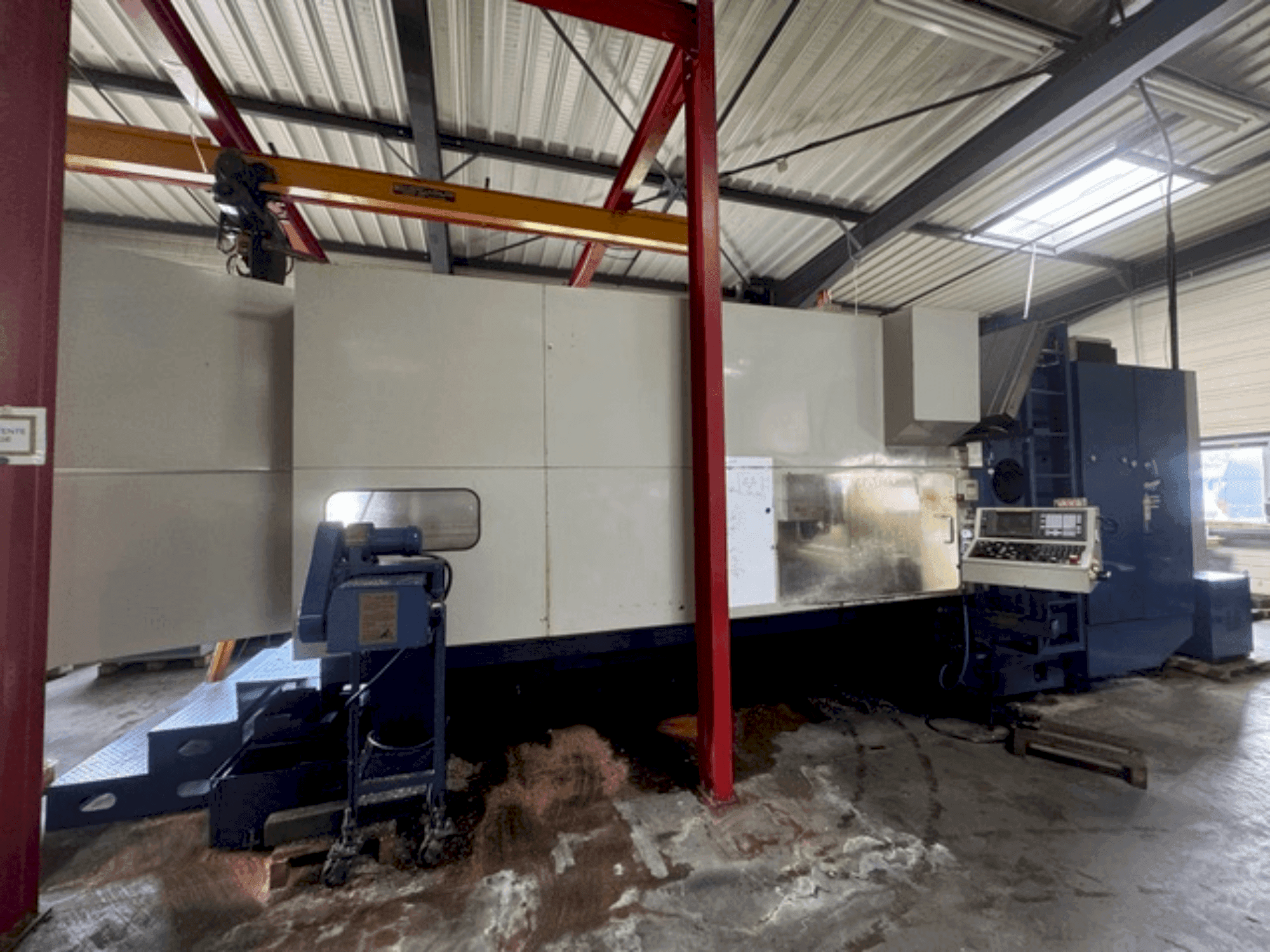

This 3-axis Hartford HB-3190S milling machine was manufactured in 1999. It features a robust 3000x1500 mm table, capable of handling up to 6500 Kg, and extensive X, Y, Z travels of 3000 mm, 1970 mm, and 700 mm respectively. Equipped with a high-performance ISO50 spindle, 42-position automatic tool changer, and advanced CNC FANUC Series18-M control, this machine ensures precision and efficiency. For more information about this milling machine, please reach out to us.

Overview

brand: HARTFORD
year: 1999
MODEL: HB-3190S
application type: Milling
Location: France
machine type: Horizontal Machining Centre
availability: Immediately
control unit brand: FANUC

Technical Information - HARTFORD HB-3190S

General Data

Measurements width: 4180 mm
Measurements depth: 8210 mm
Machine weight: 33000 kg

Control Unit

Model: Series 18-M
Brand: FANUC

Main drive

Number of spindles: 1
Spindle speed range: 40-3800 rpm 1/MIN
Spindle motor power: 22 kW
Tool taper: ISO50
Number of axis: 3

Movement

X-AXIS Movement: 3000 mm
Y-AXIS Movement: 1970 mm
Z-AXIS Movement: 700 mm

Tools

Number of stations: 42

Media

Chip conveyor: Yes

Additional equipment

- Coolant high-pressure paper filtration & magnetic separator
- RENISHAW function with probe
- Set of 80 tool holders
- Complete documentations

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High-capacity tool changer (42 positions)
- - High precision with renishaw probing system
Qualitative Machine Benefits:
- - Robust and precise control system with fanuc series 18-m

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
