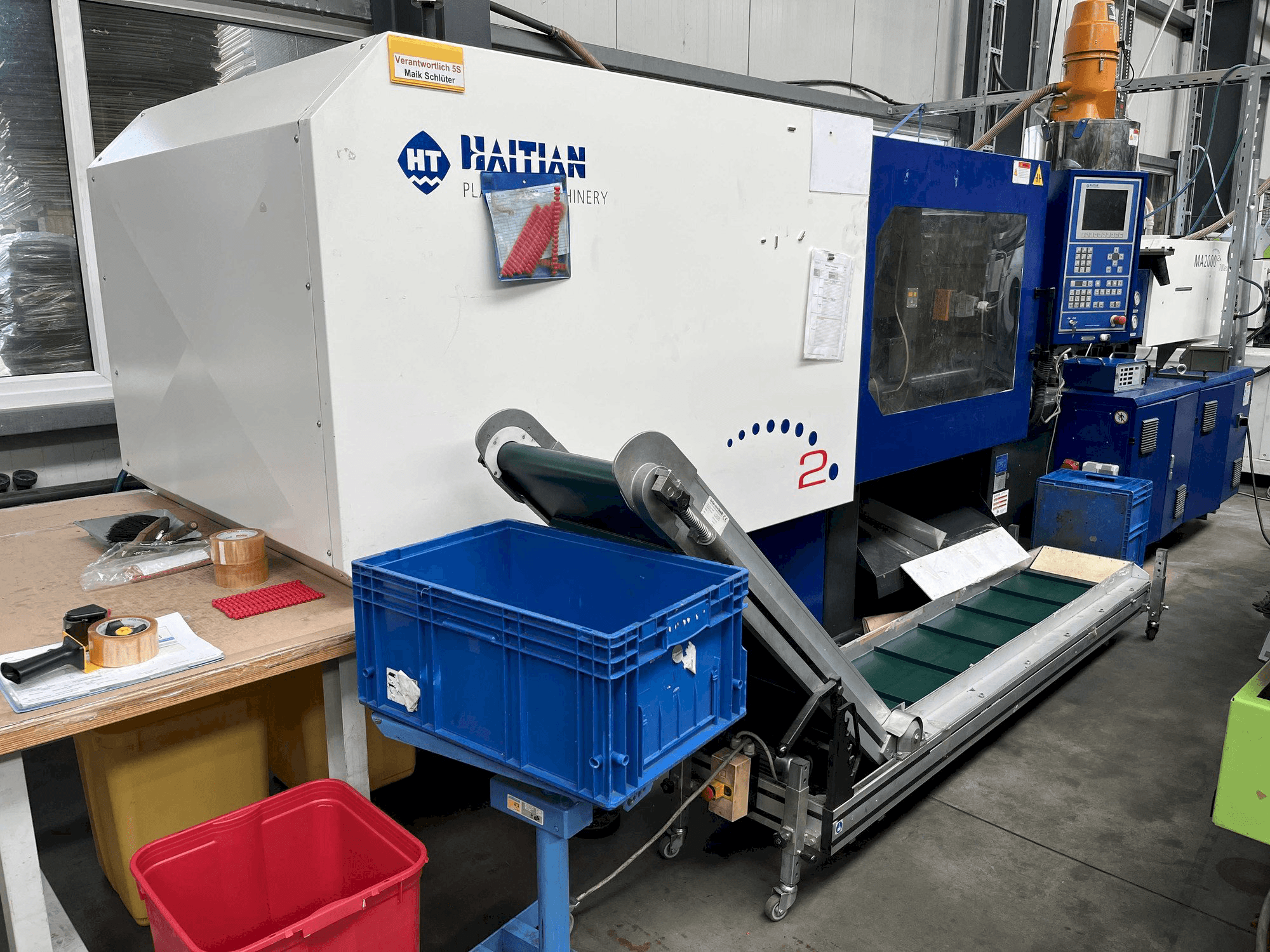

HAITIAN MA2000 II/700eco Injection Moulding Machine

Show in original language

This HAITIAN MA2000 II/700eco Injection Moulding Machine was produced in the year 2015 in China. It counts with 46000 working hours and it is equipped with a Haitian KEBA 1075 control unit. This machine is capable of working with a clamping force of 2000 kN, and a screw diameter of 50 mm.

Overview

brand: HAITIAN
year: 2015
MODEL: MA2000 II/700eco
production hours: 46000
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold
control unit brand: HAITIAN

Technical Information - HAITIAN MA2000 II/700eco

General Data

Measurements width: 5900 mm
Measurements depth: 1430 mm
Measurements height: 2160 mm
Machine weight: 7100 kg

Control Unit

Model: KEBA 1075
Brand: HAITIAN

Injection Unit

Screw diameter: 50 mm
Stroke volume: 412 CM³
Injection pressure: 170 bar
Plasticizing rate max.: 27 g/s

Clamping unit

Clamping force: 2000 kn
Max open daylight: 1040 mm
Ejector stroke: 140 mm
Ejector force for / back: 62 kn

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Injection stroke: 210 mm
- - Screw speed: 0 - 180 r/min
- - Heating input power: 18. 65 kw
- - Space between tie-bars (hxv): 530 x 530 mm
- - Mold opening stroke: 490 mm
- - Ejector number: 9 pc
- - Pump motor power: 18. 5 kw
- - Oil tank capacity 350l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
