HAAS - VM6ES-MIL-HAA-2014-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

Show in original language

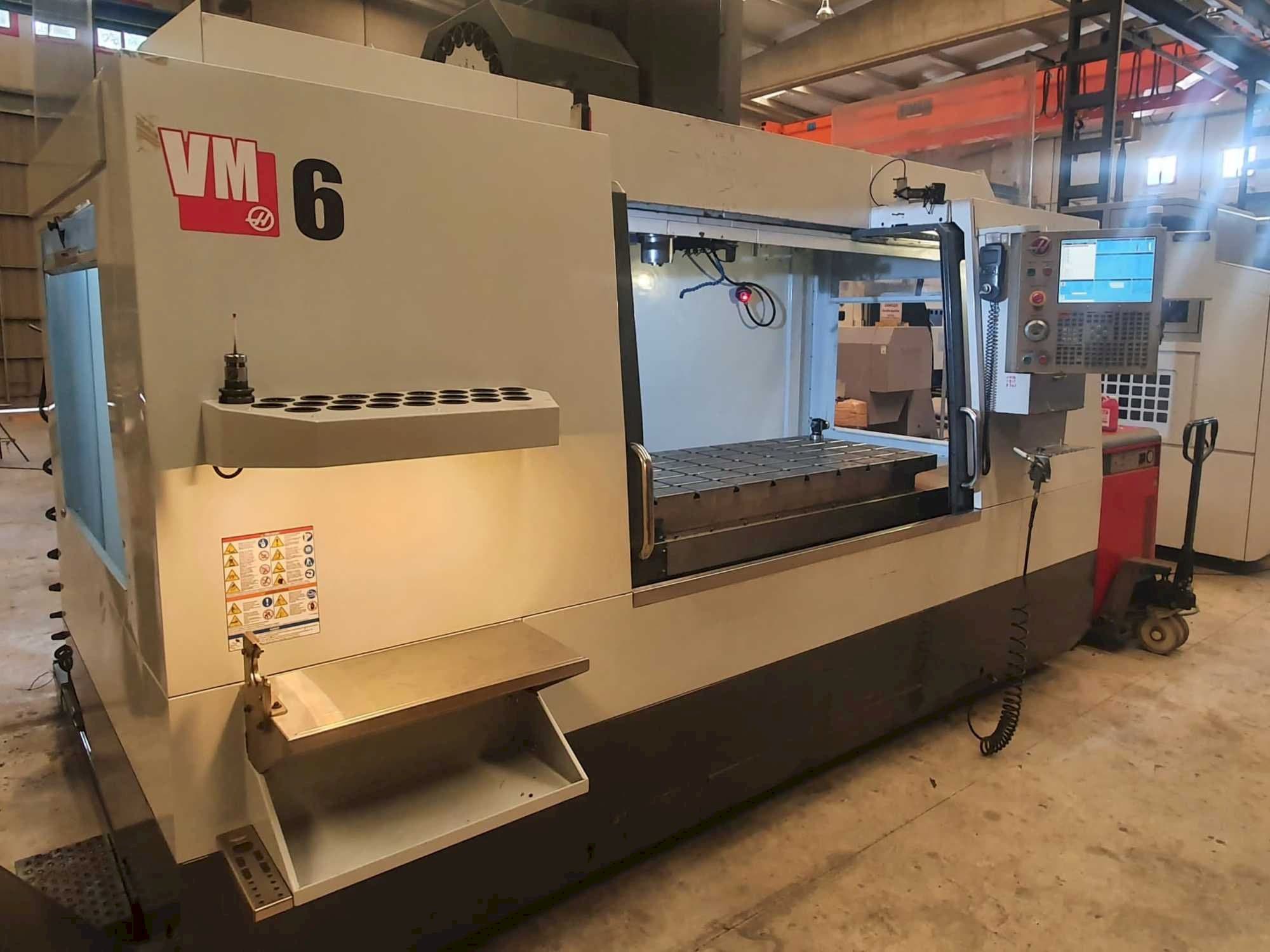

This HAAS VM6 milling machine was manufactured in the year 2014. It has a bill time record of approximately 7850 hours. This 3 axis machine is equipped with a control unit of the same brand. It works with a spindle speed up to 15000 rpm. This machine comes with an intuitive probing system. It is in good conditions.

Overview

brand: HAAS
year: 2014
MODEL: VM6
production hours: 7850
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VM6

General Data

Measurements width: 4960 mm
Measurements depth: 2590 mm
Measurements height: 3280 mm
Machine weight: 10887 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Number of axis: 3

Movement

X-AXIS Movement: 1626 MM
Y-AXIS Movement: 813 MM
Z-AXIS Movement: 762 MM

Workpiece

Workpiece weight: 1814 KG

Table

Outer length: 1626 MM
Outer width: 711 MM

Tools

Slots in storage: 24+1
Max weight: 5.4 KG
Max tool diameter: 64 MM
Max tool length: 406 MM

Additional equipment

- Intuitive probing system

Additional Information

Machine Benefits

Qualitative Machine Benefits:
- - Good condition
- - Little working hours

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
