HAAS VM3 Vertical Machining Center

Show in original language

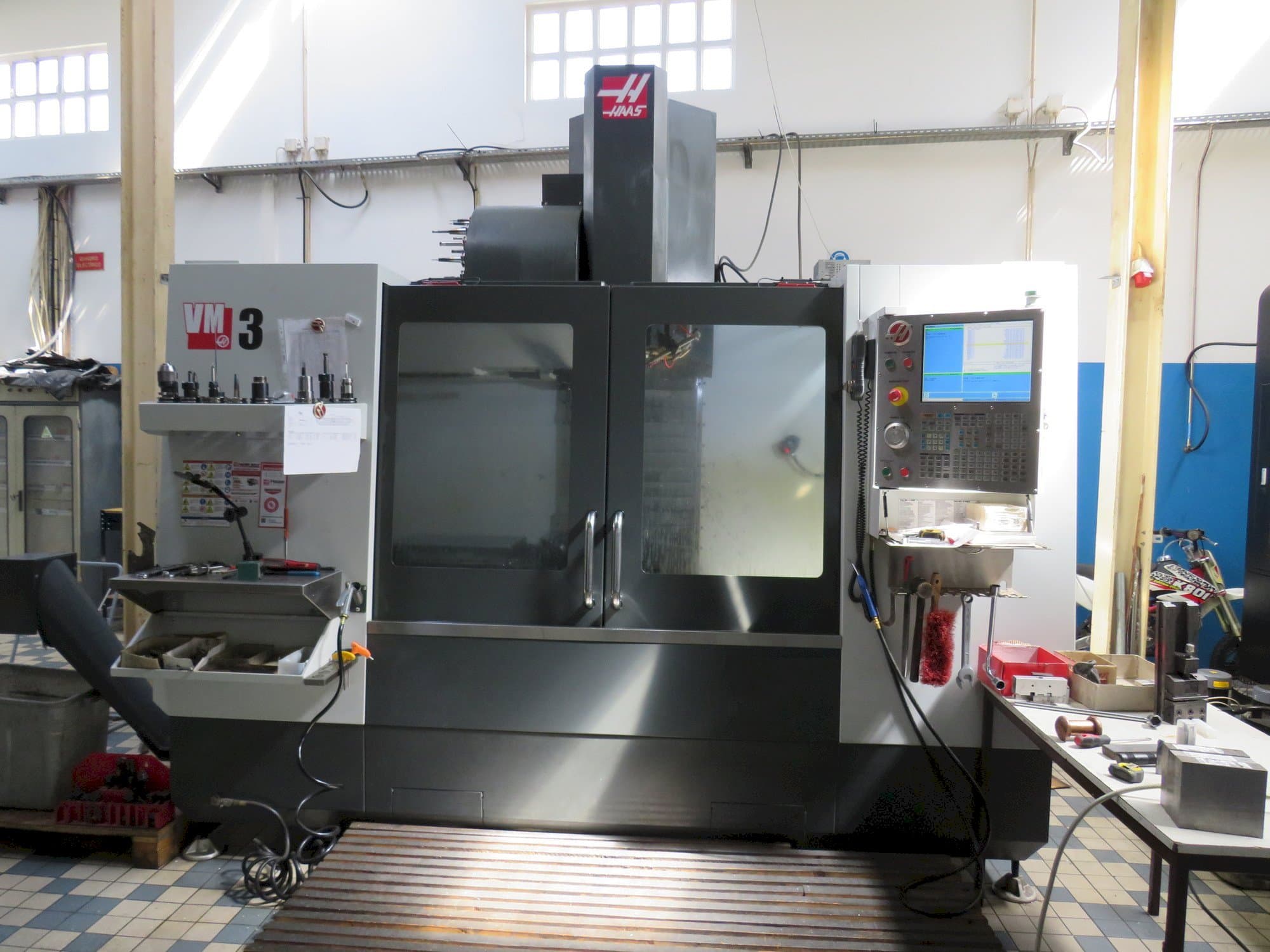

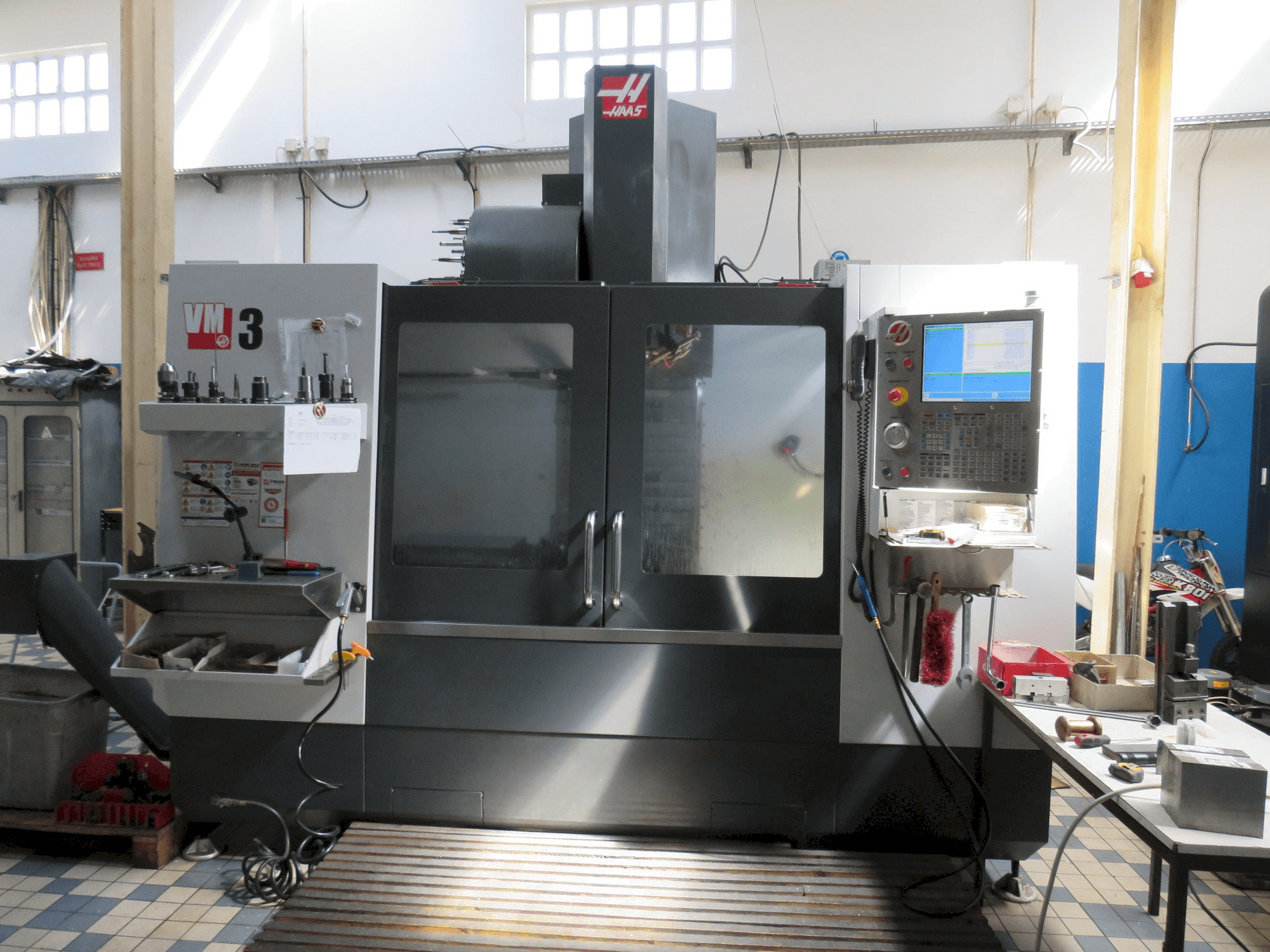

This HAAS VM3 Vertical Machining Center was built in 2015 in the United States and has been working for 9593 hours since then. Equipped with a HAAS M18 Control unit, this machine can work with a spindle speed up to 12000 rpm.

Overview

brand: HAAS
year: 2015
MODEL: VM3
production hours: 9593
application type: Milling
Location: Portugal
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VM3

General Data

Measurements width: 397 mm
Measurements depth: 260 mm
Measurements height: 318 mm
Machine weight: 6940 kg

Control Unit

Model: M18
Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/MIN

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 1372 mm
Outer width: 610 mm

Tools

Max weight: 5.4 mm KG
Max tool diameter: 127 mm
Max tool length: 330 mm

Media

Main electronic connection: 220 V
Power consumption: 22.4 kW
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Renishaw measuring and centering probe
- Hard disk
- Ethernet

Additional Information

Machine history

Material type: Steel
End product: Moulds
Industries: Automotive
