➤ Used HAAS VF4 Vertical Machining Centre For Sale

Show in original language

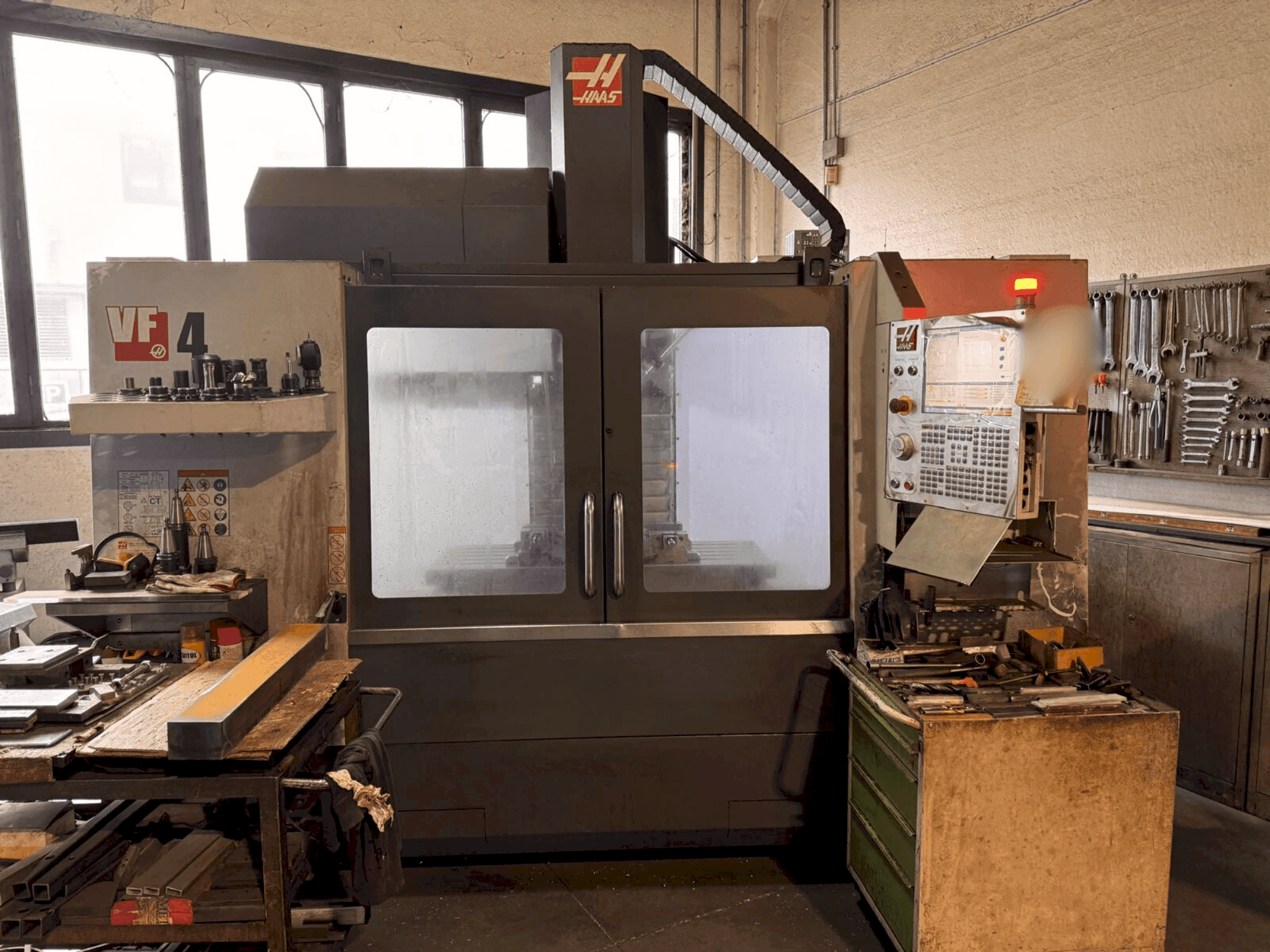

This 3-Axis HAAS VF4 vertical machining centre was manufactured in 2019. It features a high pressure through spindle system, 8000 rpm spindle speed, and 30-tool carousel. Key travel dimensions include 50.0 inches (X), 20.0 inches (Y), and 25.0 inches (Z), with a sturdy table supporting up to 3500 lb. With a max spindle power of 30.0 hp and rapid traverse rates of 1000 ipm, consider the opportunity to buy this HAAS VF4 vertical machining centre. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2019
MODEL: VF4
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HAAS

Technical Information - HAAS VF4

Control Unit

Brand: HAAS
Model: HAAS CNC Control

Main drive

Spindle speed range: 8100 1/MIN
Tool taper: CT40 | BT40 | HSK-A63
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
X-AXIS Rapid traverse: 25.4 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 25.4 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 25.4 m/min

Table

Outer length: 1321 mm
Outer width: 495 mm
TSlots size: 15.90 mm to 16.00 mm
Number of tslots: 5
Min distance between vertical spindle and table: 107 mm
Max distance between vertical spindle and table: 742 m
Table load: 1588 kg

Tools

Slots in storage: 20
Max weight: 5.4 kg
Max tool diameter: 89 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - T-slot center distance: 80 mm
- - Max rating: 22. 4 kw
- - Max torque: 122. 0 nm at 2000 rpm
- - Drive system: inline direct-drive
- - Bearing lubrication: air / oil injection
- - Cooling: liquid cooled
- - Max cutting feedrate: 16. 5 m/min
- - Max thrust x: 11343 n
- - Max thrust y: 11343 n
- - Max thrust z: 18683 n
Qualitative Machine Benefits:
- - Tool changer type: carousel
- - Tool-to-tool (average): 4. 20 s
- - Chip-to-chip (average): 4. 50 s

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
