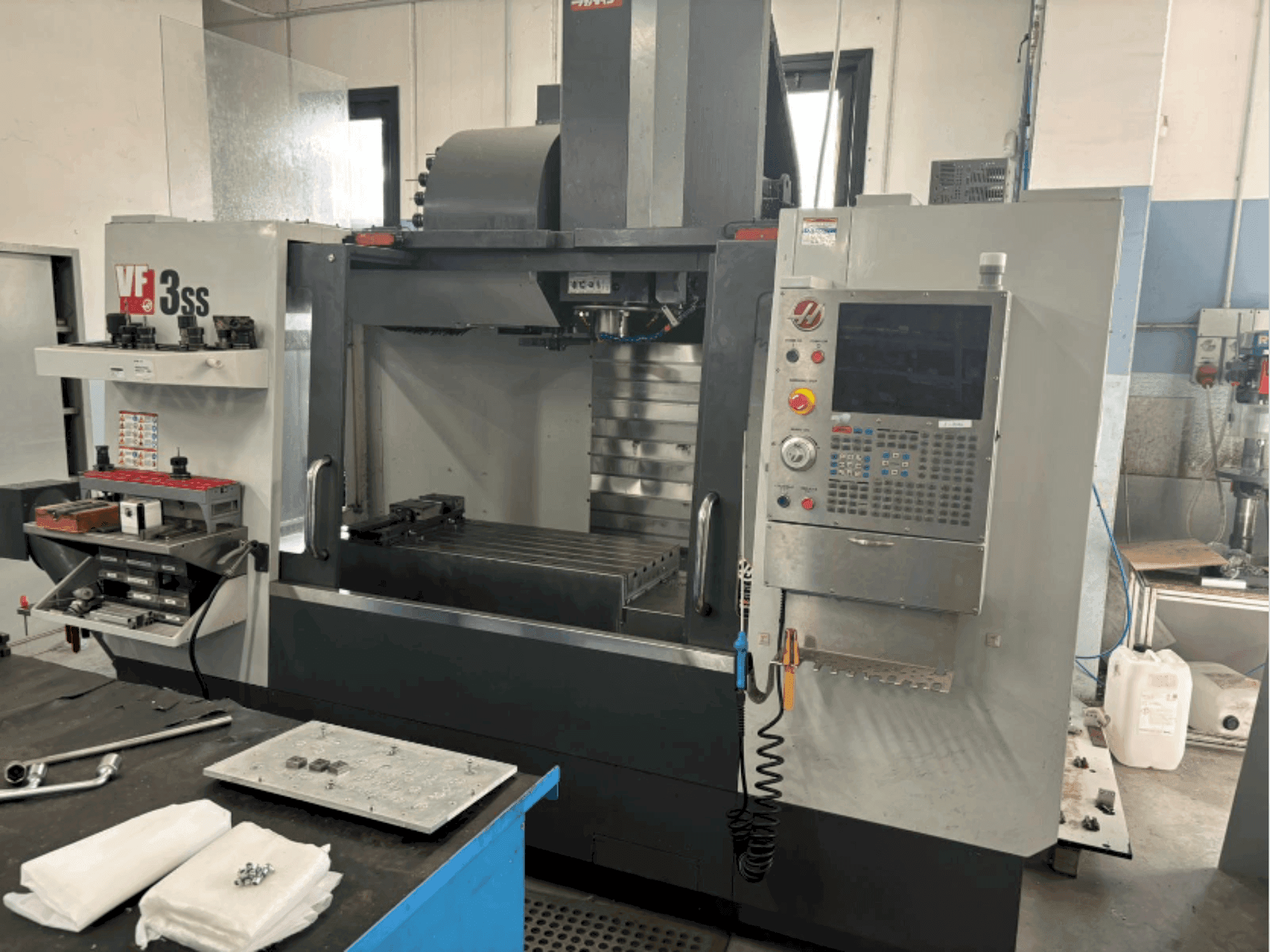

This 3-axis HAAS VF3SS vertical machining centre was manufactured in 2014. It features a robust spindle with a speed of 8100rpm and a max rating of 22.4 kW. The table measures 1372 mm in length and 610 mm in width, complemented by a 20-capacity carousel type tool changer. A great opportunity to buy this HAAS VF3SS vertical machining centre. Contact us for further details regarding this vertical machining centre.
Overview
- brand: HAAS
- year: 2014
- MODEL: VF3SS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - HAAS VF3SS
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 RPM 1/MIN
- Spindle motor power: 22.4 kw
- Tool taper: BT 40
- Number of axis: 3
Movement
- X-AXIS Movement: 1016 mm
- X-AXIS Rapid traverse: 35.6 m/min
- Y-AXIS Movement: 660 mm
- Y-AXIS Rapid traverse: 35.6 m/min
- Z-AXIS Movement: 635 mm
- Z-AXIS Rapid traverse: 35.6 m/min
Table
- Outer length: 1372 mm
- Outer width: 610 mm
- TSlots size: 15.9 - 16 mm
- Number of tslots: 7
- Min distance between vertical spindle and table: 107 mm
- Max distance between vertical spindle and table: 742 mm
- Table load: 1588 kg
Tools
- Slots in storage: 20
- Max weight: 5.4 kg
- Max tool diameter: 89 mm
Additional Information
- Technical Machine Benefits:
- - Drive system inline direct-drive
- - Bearing lubrification air/oil injection
- - Cooling liquid cooled
- - Efficient power transmission
- - Coolant capacity: 208 l
- Qualitative Machine Benefits:
- - Precision in tool handling
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
