HAAS VF1 SS

HAAS - VF1 SSES-MIL-HAA-2008-00002

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

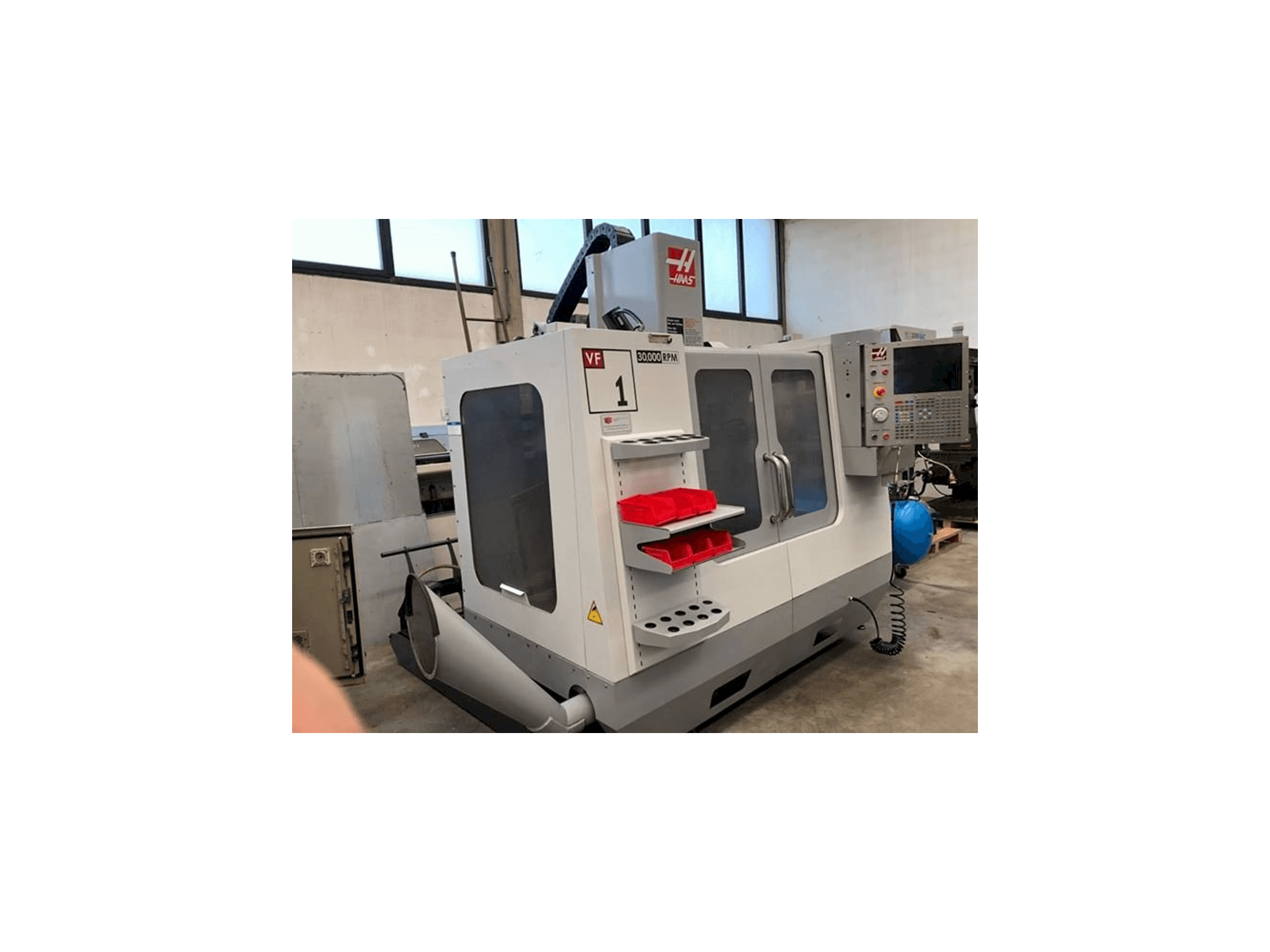

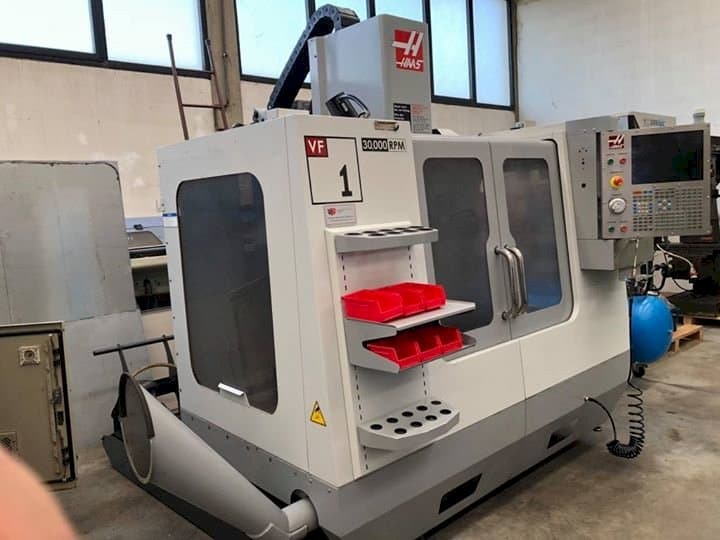

HAAS VF1 SS Vertical Machining Center

Show in original language

This HAAS VF1 SS Vertical Machining Center was built in 2008 in the United States. It has been working only for 2293 hours since then. Equipped with a control unit from the same brand, this machine operates with a spindle speed of 30000 rpm.

Overview

brand: HAAS
year: 2008
MODEL: VF1 SS
production hours: 2293
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF1 SS

General Data

Measurements width: 2500 mm
Measurements depth: 2250 mm
Measurements height: 2600 mm
Machine weight: 3600 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 30000 1/MIN

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 660 mm
Outer width: 356 mm
Distance between: 102-610 mm

Tools

Max weight: 5.4 kg
Max tool diameter: 89 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Cone bt30
- - Belt drive
- - Tool change capacity : 20

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
