- HAAS VF-9 Vertical machining center

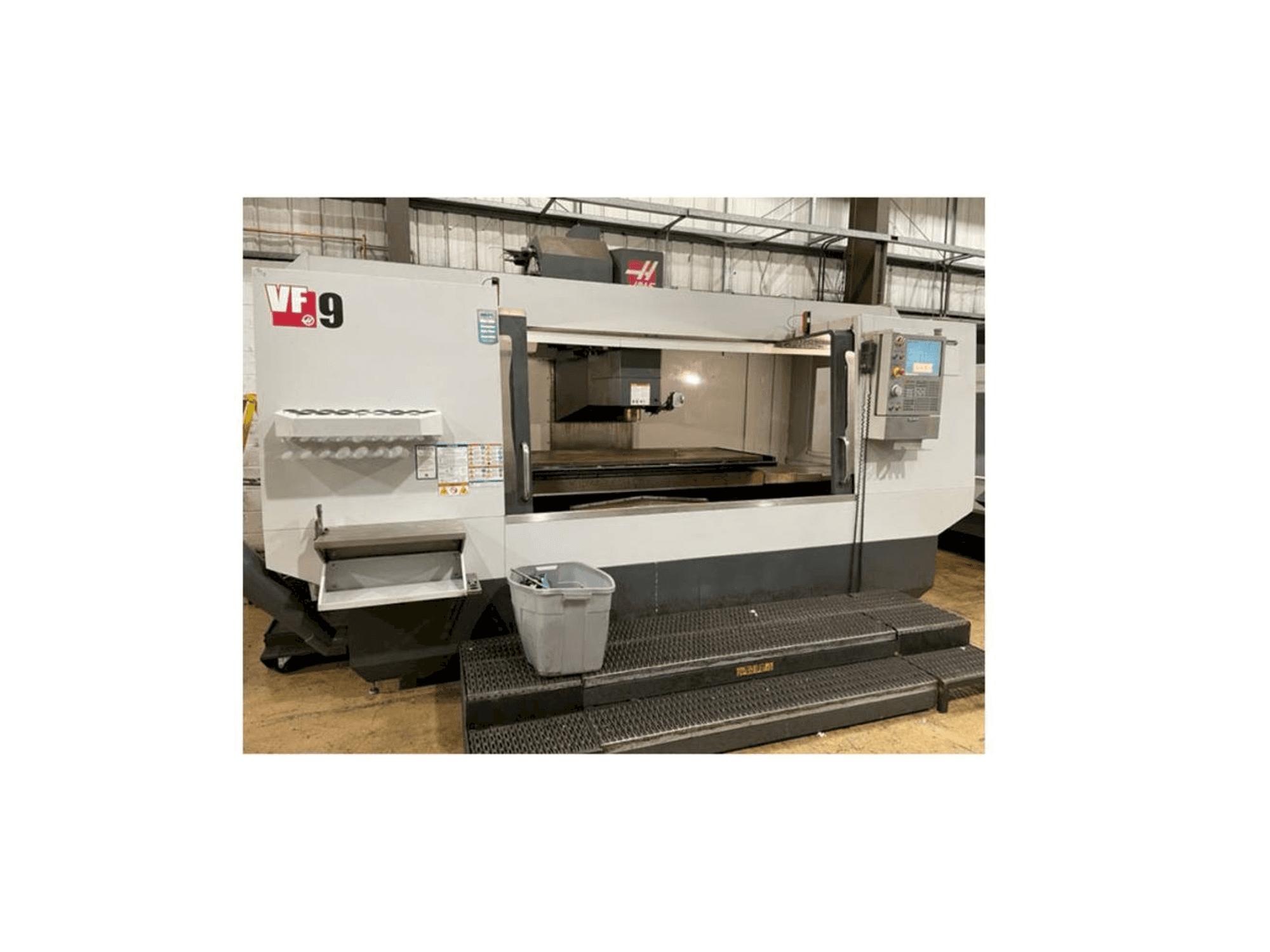

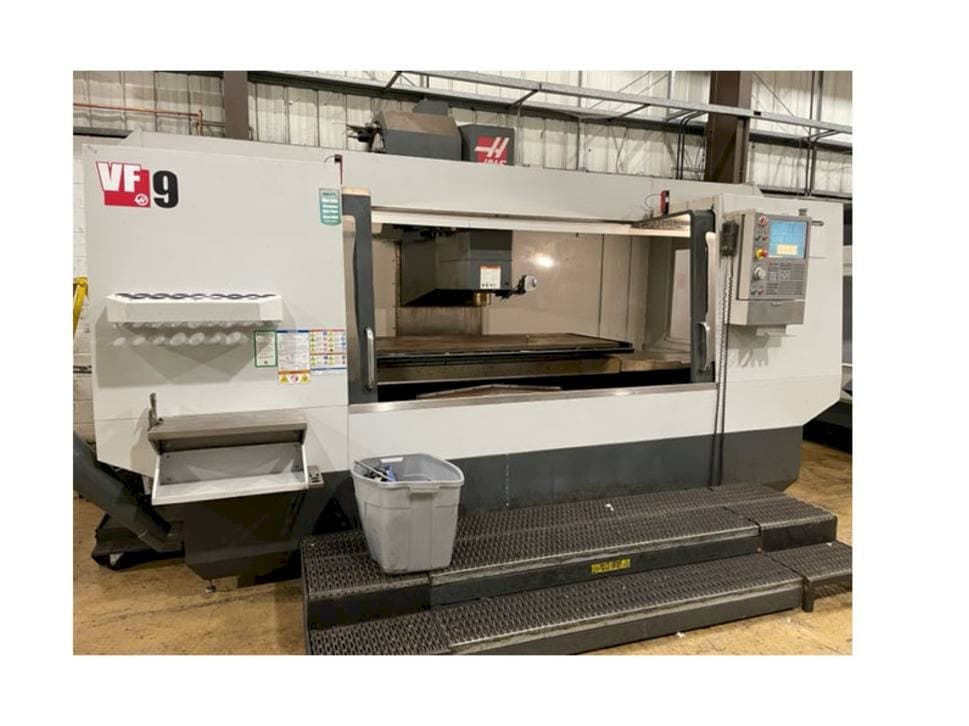

This HAAS VF-9 Vertical machining center was manufactured in the United States in the year 2011. It has 3 axis and it is operated through a Haas control unit. It has a spindle speed up to 7500 rpm and a spindle power of 22.4 kW. The machine manual is included.
Overview
- brand: HAAS
- year: 2011
- MODEL: VF-9
- application type: Milling
- Location: United Kingdom
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: Haas
Technical Information - HAAS VF-9
General Data
- Measurements width: 5340 mm
- Measurements depth: 3531 mm
- Measurements height: 3150 mm
- Machine weight: 11340 kg
Control Unit
- Brand: Haas
Main drive
- Number of spindles: 1
- Spindle speed range: 7500 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2134 mm
- Y-AXIS Movement: 1016 mm
- Z-AXIS Movement: 762 mm
Workpiece
- Workpiece weight: 1814 kg
Table
- Outer length: 2134 mm
- Outer width: 914 mm
Tools
- Slots in storage: 24
- Type of tool holder: BT 40
Media
- Main electronic connection: 360-480 V/ 50-60 Hz
- Chip conveyor: Yes
Additional Information
- Technical Machine Benefits:
- - Spindle motor power 22. 4 kw
- - "maximum cutting feedrate 8. 4m/minute"
- - "rapid feedrates xyz: 8. 4 x 15. 2 x 15. 2m/minute"
- - "tool change time (chip to chip) 3. 6 seconds"
- - "max & min distance from table to spindle 102 ~ 864mm"
- - Spindle coolant
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
