HAAS - VF-7HU-MIL-HAA-2019-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- HAAS VF-7 Vertical Machining center

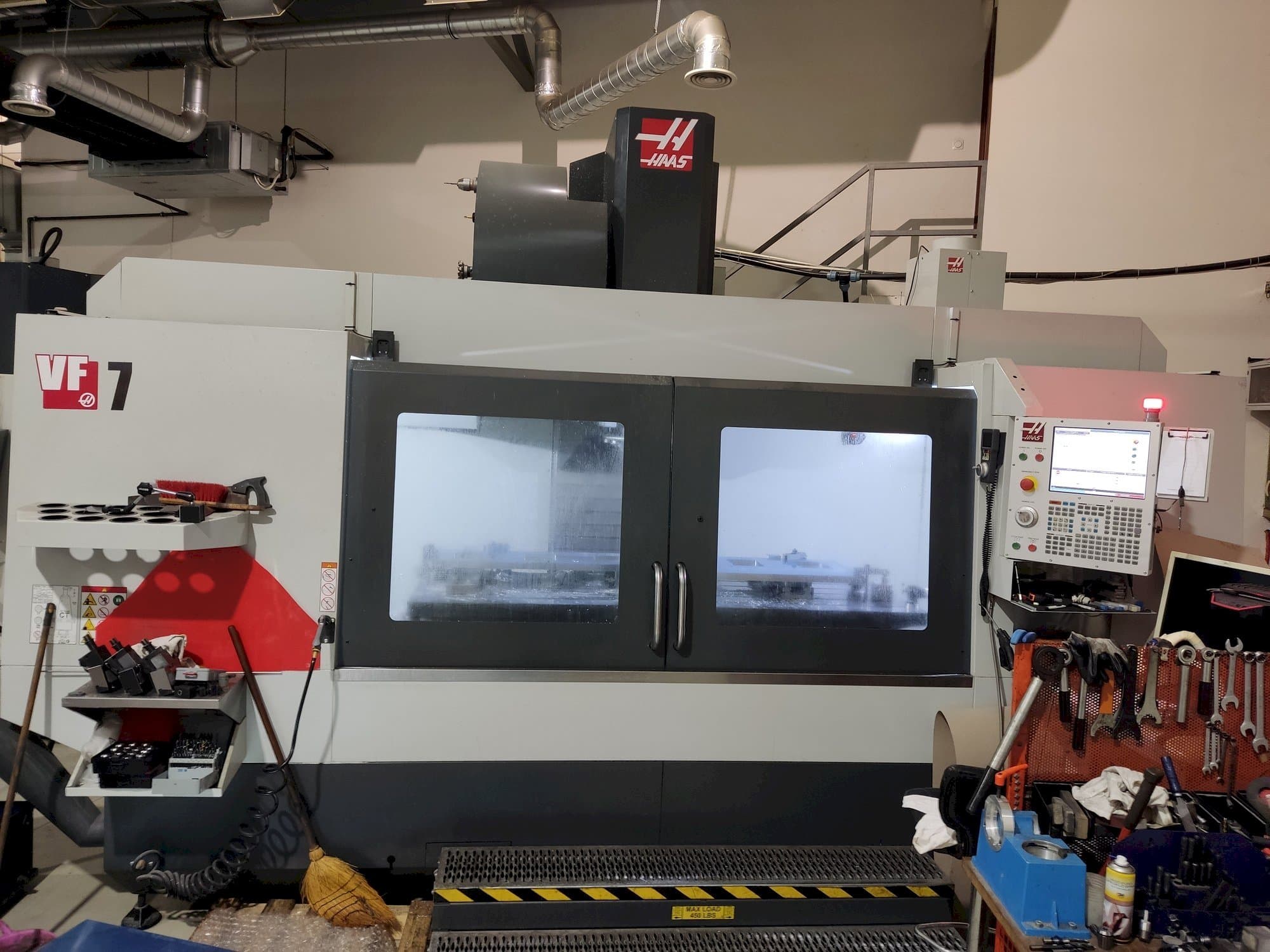

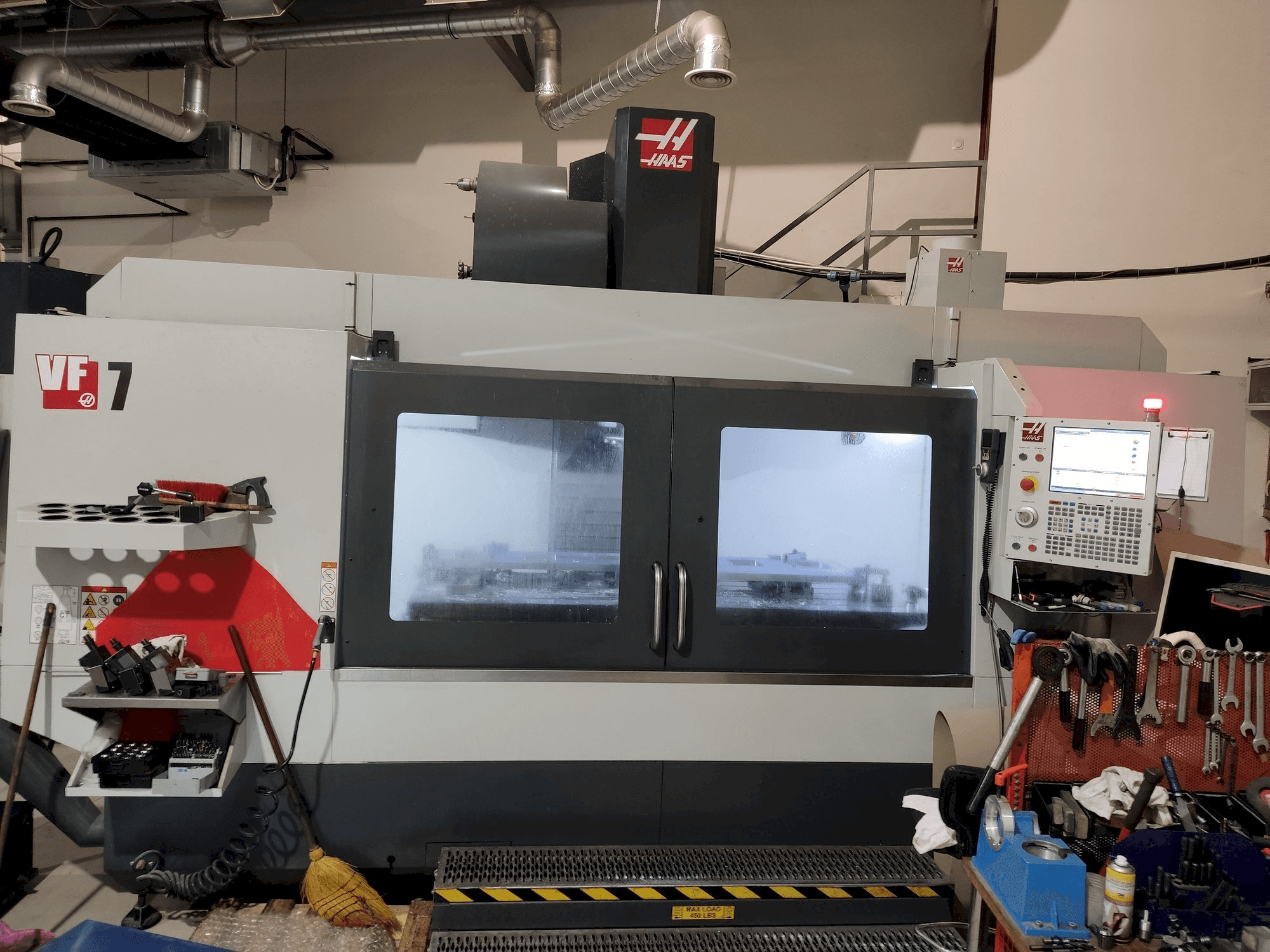

This HAAS VF-7 Vertical Machining Center was manufactured in the year 2019 and has 1696 production hours, of which 328 are cutting hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 10000 rpm.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF-7
- production hours: 1696
- application type: Milling
- Location: Hungary
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-7
Control Unit
- Brand: HAAS
Main drive
- Spindle speed range: 10000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 2134 MM
- Y-AXIS Movement: 813 MM
- Z-AXIS Movement: 762 mm
Additional Information
- Technical Machine Benefits:
- - Spindle nose to table min/max: 127/889mm
- - Programmable coolant nozzle
- - Media display m-code; m130 is used within an nc program to call up media files (images, video, pdf)
- - Remote jog handle with color lcd
- - Rigid tapping, , machine lifting provision, ct option
- - Side mount tool changer, 50 taper, 30+1 slots, 1gb standard program memory,
- - Haasconnect: remote monitoring
- - Chip auger, 360 liter coolant tank with 0. 6kw pump, ethernet interface
- - Early power failure detection module, pre-configured to accept through spindle coolant system,
- - 50 taper, 22. 4 kw vector drive, geared head;
- Qualitative Machine Benefits:
- - Wireless intuitive probing system; renishaw
- - Visual part programming system, user definable macros
- - Spindle orientation, coordinate rotation and scaling
- - Enclosure exhaust system, haas tool cart for 50 taper tools, four shelf unit holds 60 tools
- - Chip tray filter kit; supplemental chip strainer kit keeps chips from entering the coolant system. 200 micron filter
- - Wifi connection for haas control, haas window blast
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
