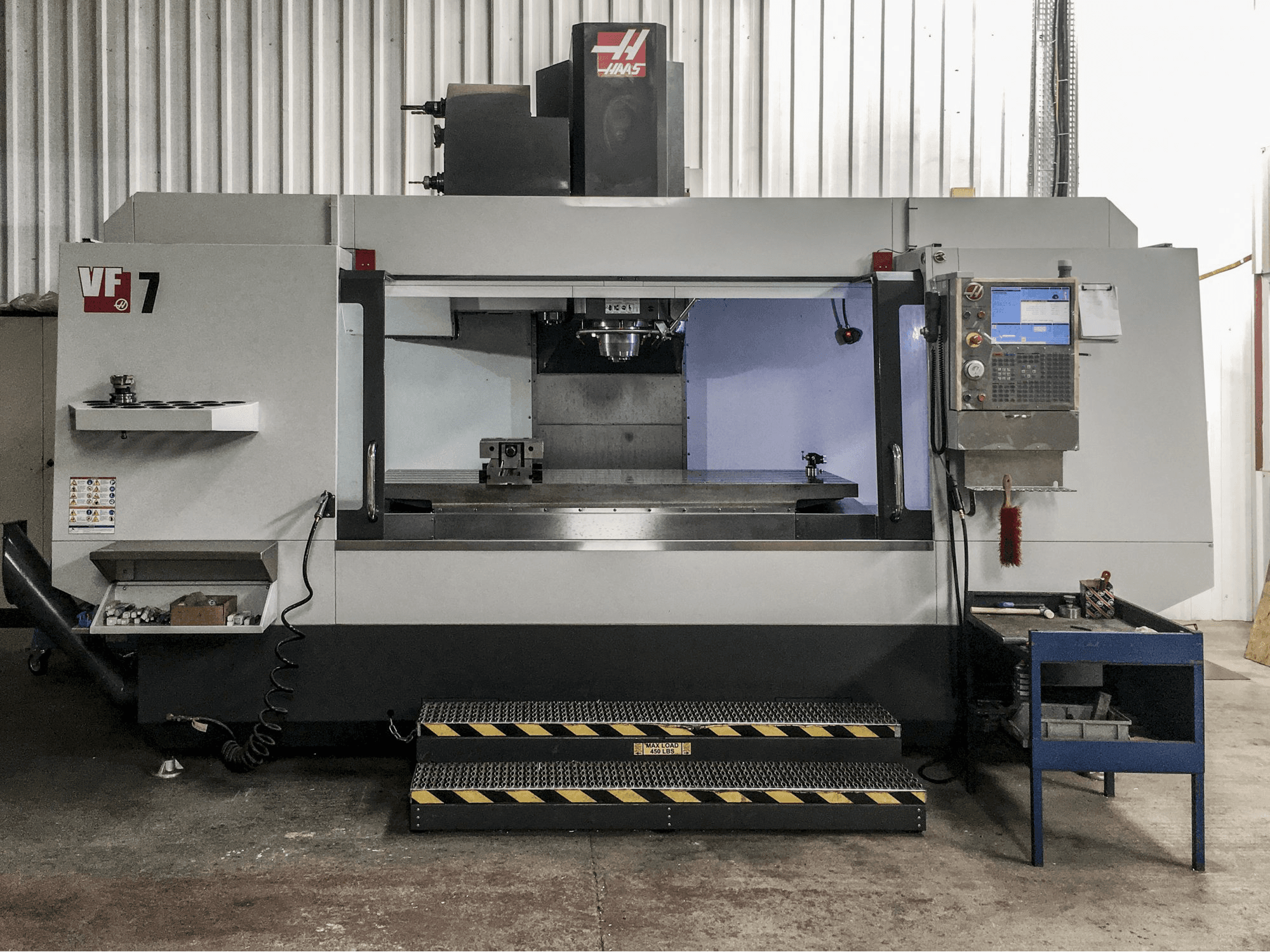

HAAS VF-7/50 Vertical Machining Center

Show in original language

This HAAS VF-7/50 Vertical Machining Center was manufactured in the United States in 2015 and has only worked 324 production hours since then. With a torque of 610 Nm and a 2-speed gearbox, the machine, which is operated through a HAAS Control unit, is well suited for high material removal rates like in face milling. During the past, this equipment has mainly worked with carbon and alloy steel.

Overview

brand: HAAS
year: 2015
MODEL: VF-7/50
production hours: 324
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-7/50

General Data

Measurements width: 4880 mm
Measurements depth: 3124 mm
Measurements height: 3505 mm
Machine weight: 11113 kg

Control Unit

Brand: HAAS
Remote control: Yes

Main drive

Number of spindles: 1
Spindle speed range: 7500 1/min
Tool taper: #50

Movement

X-AXIS Movement: 2134 mm
Y-AXIS Movement: 813 mm
Z-AXIS Movement: 762 mm

Workpiece

Workpiece weight: 1814 kg

Table

Outer length: 711 mm
Outer width: 2134 mm
Min distance between vertical spindle and table: 178 mm
Max distance between vertical spindle and table: 813 mm

Tools

Max weight: 13.6 kg
Max tool diameter: 102 mm

Media

Main electronic connection: 200-250 V / 50 Hz / 3 P
Power consumption: 28 kVA
Air pressure: 6 bar
Lubrication tank: 360 L
Chip conveyor: Yes
Internal cooling: Yes

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
