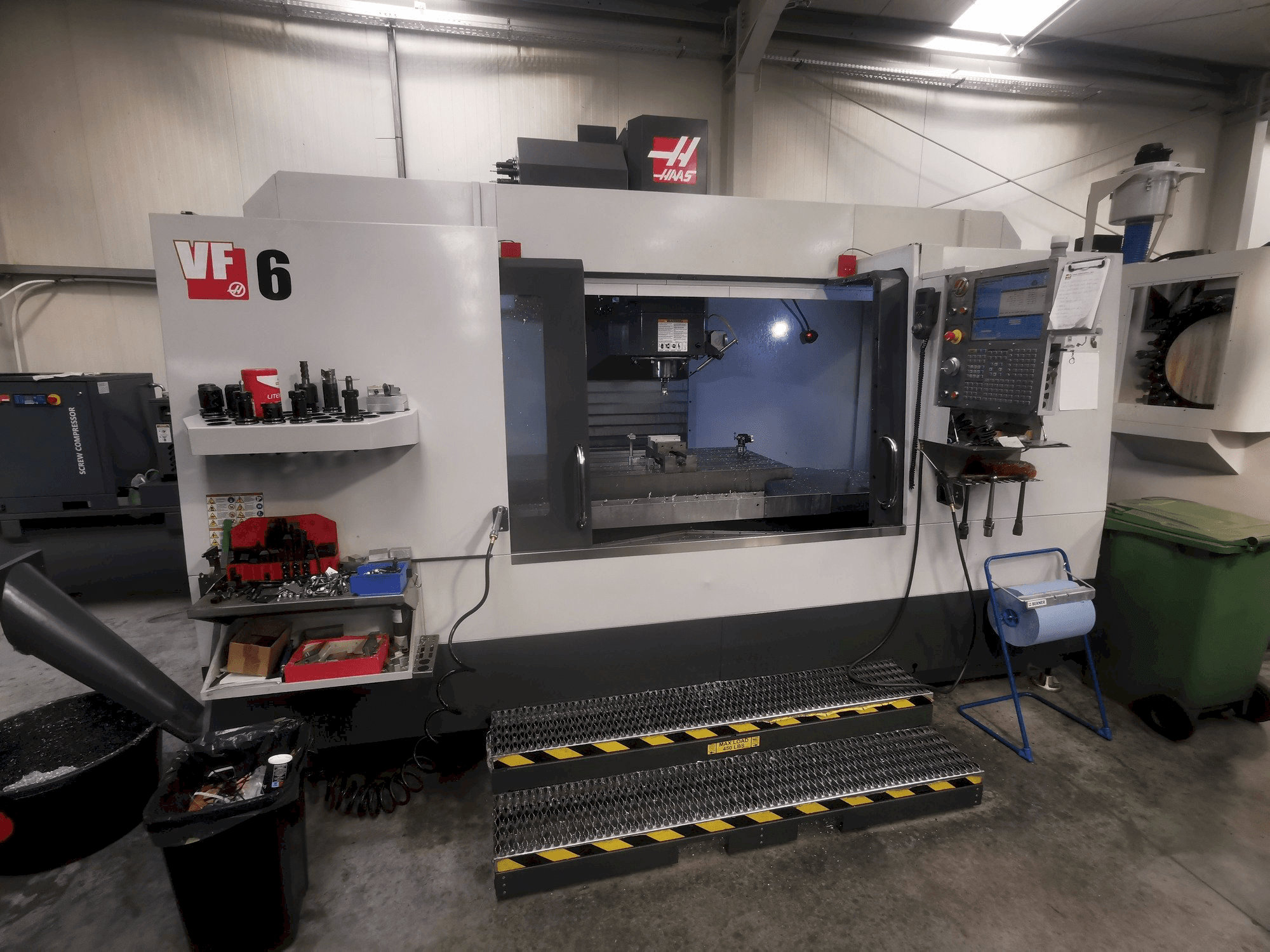

HAAS - VF-6/40PL-MIL-HAA-2015-00003

Additional equipment

• - Spindle with 2-speed gearbox increasing speed to 10000 rpm [10K-40T-IN]
• - 4-axis drive and wiring for rotary tables [4AXD]
• - 5-axis drive and wiring for rotary tables [5AXD]
• - Tool probe for measuring tool length and part probe for measuring part length (both probes are used for referencing on the table) [WIPS-R]
• - Dual-axis tilting rotary table 210 mm [TR210]
• - Tailstock 6 [HTS6]
• - 8" three-jaw chuck by Haas [LC8-B]
• - 750 MB extended memory
• - Technology package

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - Power on time: 6545 h
  • - Cycle time: 1793 h
  • - Tool magazine type: smtc
  • - Number of tools in magazine: 24+1
  • - Average tool change time: 2. 8 s
  • - Maximum tool diameter with empty adjacent pocket and full pocket: 152 mm, 76 mm
  • - Power supply: machine: 3 x 400 v, 35 a, 20 kw
  • - Cnc control: 240 v
  • - Pneumatic supply: capacity 113 l/min, pressure 6. 9 bar
  • - Coolant tank capacity: 360 l
• Qualitative Machine Benefits:
  • - Automatic screw conveyor chip removal
  • - Programmable coolant nozzle
  • - Color remote control panel
  • - Power failure detection module
  • - 1 gb program memory
  • - 15" color lcd monitor
  • - Usb port
  • - Memory lock switch
  • - Rigid tapping function
  • - 360 l coolant system

Extra information

• - Machine still under power
