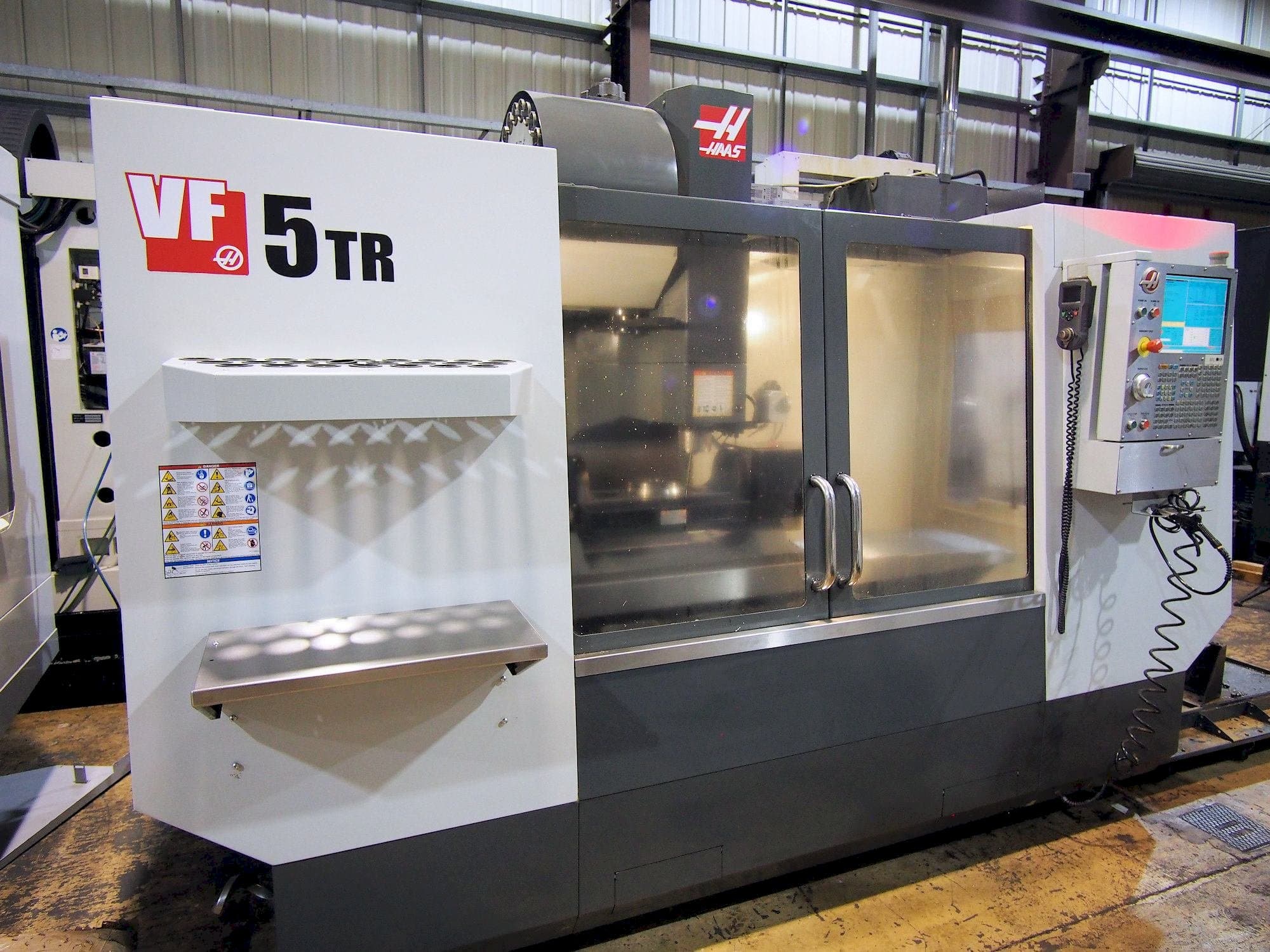

HAAS VF-5/40 TR Vertical Machine Center

Show in original language

This HAAS VF-5/40 TR Vertical Machine Center was manufactured in the United States in 2012. This 5 axis machine has a Haas control unit. It has a spindle speed range up to 10000 rpm. The machine is in very good conditions.

Overview

brand: HAAS
year: 2012
MODEL: VF-5/40 TR
application type: Milling
Location: United Kingdom
machine type: Vertical Machining Centre
availability: Sold
control unit brand: Haas

Technical Information - HAAS VF-5/40 TR

General Data

Machine weight: 5700 KG

Control Unit

Brand: Haas

Main drive

Number of spindles: 1
Spindle motor power: 22 kW
Number of axis: 5

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 660 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 90 kg

Table

Outer length: 210 mm
Outer width: 210 mm

Tools

Slots in storage: 24
Type of tool holder: BT 40

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - A axis -/+ 120 degrees, b axis 360 degrees
- - Rapid feedrates 18 m/min
- - Min. -max. Height under spindle 40-625 mm
- - Programmable coolant nozzle
- - Tool setter
- - Swarf conveyor, coolant
- - High speed machining function
- - 1gb hard drive, usb port
Qualitative Machine Benefits:
- - Very good conditions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
