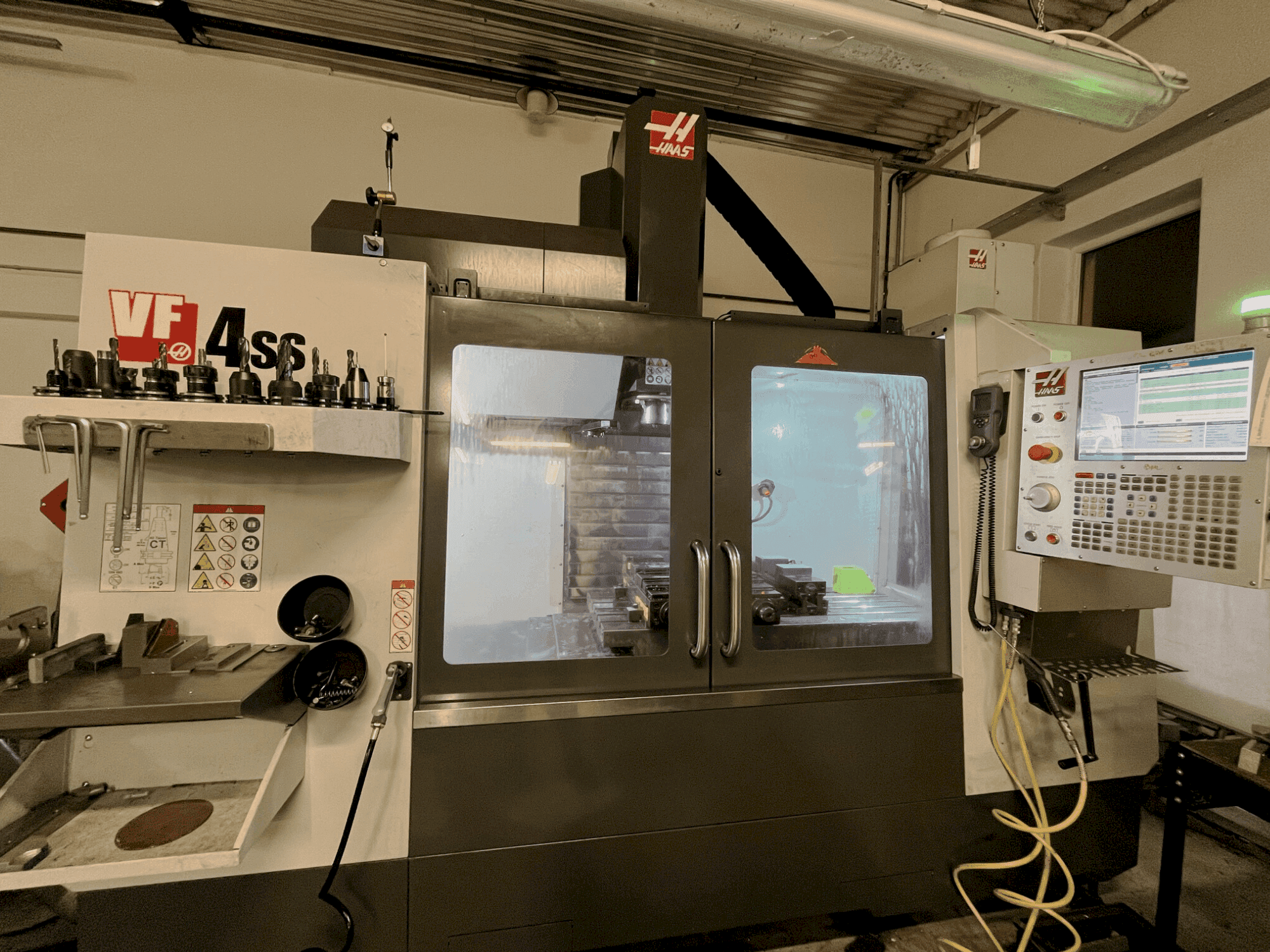

HAAS VF-4SS 3-axis Vertical Machining Centre

Show in original language

This HAAS VF-4SS Vertical Machining Centre was made in the year 2019 in the United States. It is equipped with a Haas control unit and BT 40 tool holder with 30 slots in storage. As a 3 axis machine it has a spindle speed of 12000 rpm. With only 2,311 cutting time hours it comes in a very good condition.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
production hours: 10924
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4SS

General Data

Measurements width: 3629 MM
Measurements depth: 2794 MM
Measurements height: 2985 MM
Machine weight: 6033 KG

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 12000 1/min

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

Outer length: 1324 MM
Outer width: 457 MM

Tools

Slots in storage: 30
Type of tool holder: BT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Min-max height under spindle 107-742 mm
- - Spindle motor power 29. 8 kw
- - Wips system (wireless intuitive probing system)
- - Tool setter
- - Coolant
- - Swarf auger
Qualitative Machine Benefits:
- - Very good condition, low hours
- - Cooling through spindle, tapping, window blast
- - Programmable cooling nozzle, automatic outer air nozzle
- - Mist exhauster
- - Haas connect, media display m-code

Extra information

- 10924 h / 2311h (cutting time) - 3 axis controlled - Machine manual available - Simultaneous axis operation possible

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
