HAAS - VF-4RU-MIL-HAA-2006-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

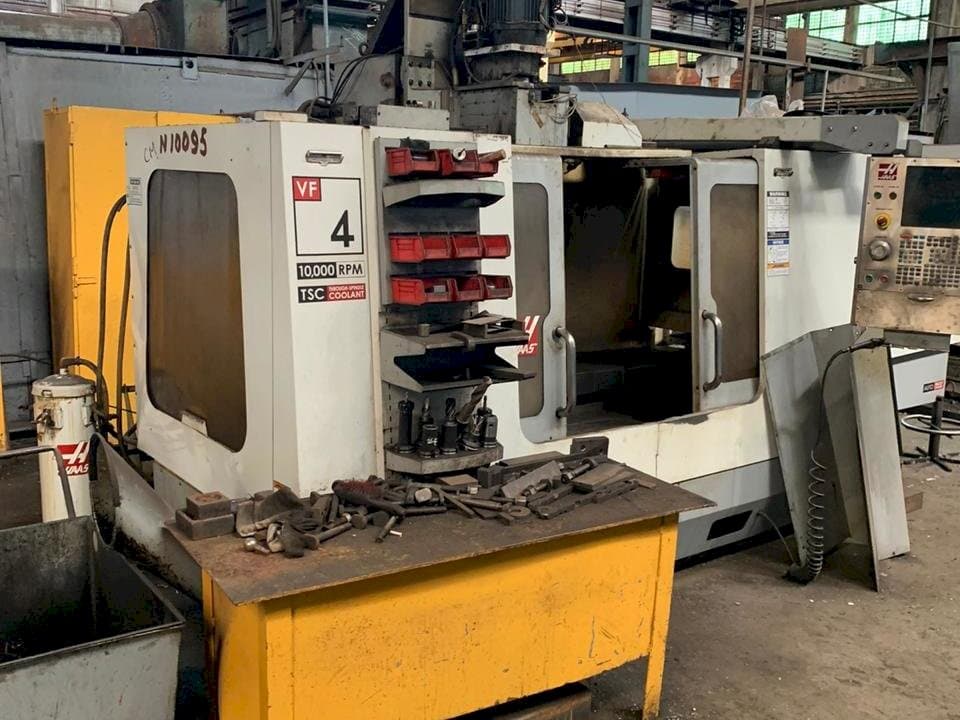

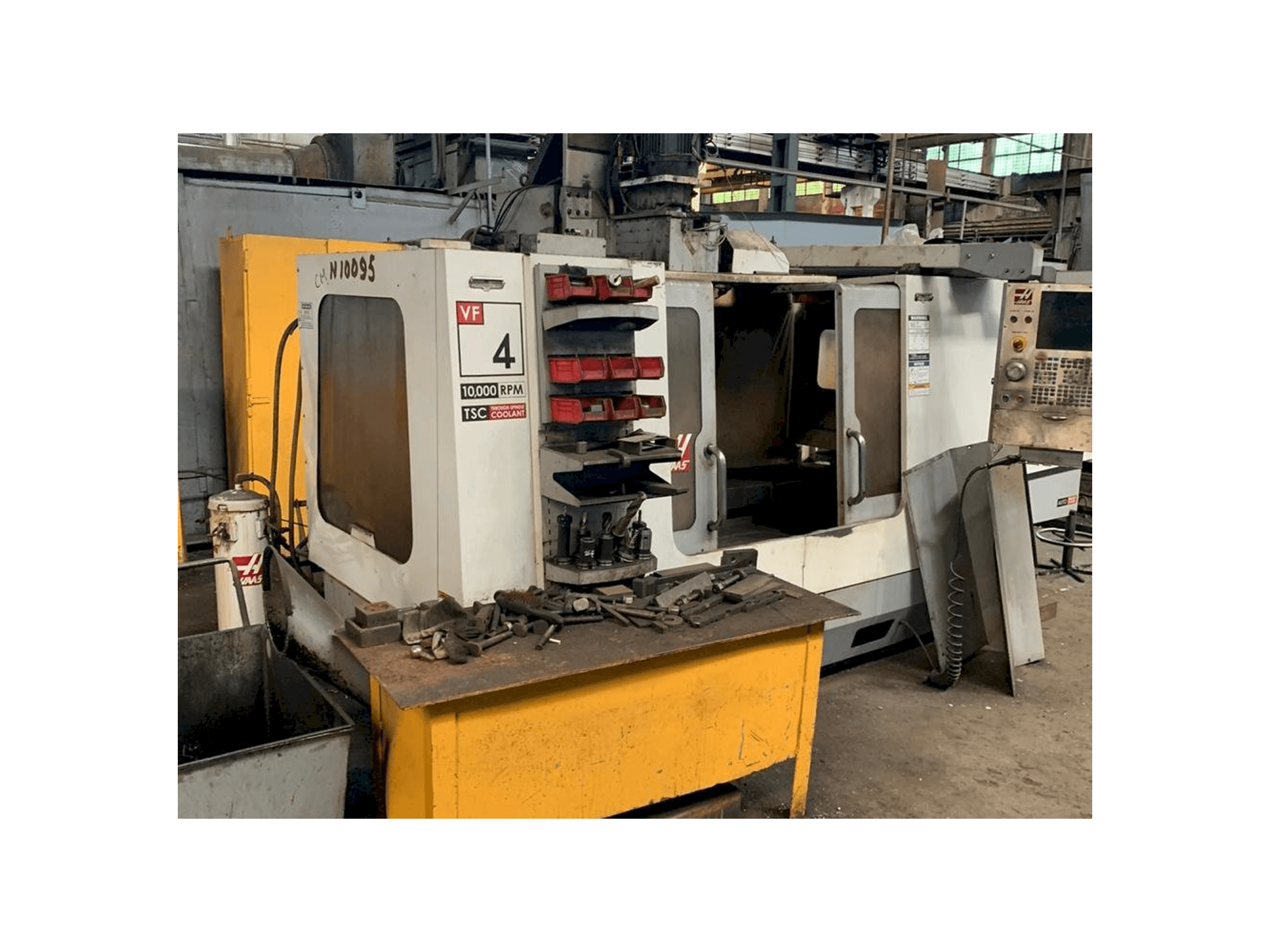

HAAS VF-4 Vertical Machining Center

Show in original language

This HAAS VF-4 Vertical Machining Center was produced in the year 2006 in the United States. It is equipped with a control unit of the same brand. This machine can work with a spindle speed up to 8100 rpm.

Overview

brand: HAAS
year: 2006
MODEL: VF-4
application type: Milling
Location: Russia
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS VF-4

Main drive

Spindle speed range: 8100 1/MIN

Movement

X-AXIS Movement: 1270 mm
X-AXIS Rapid traverse: 25.4 m/min
Y-AXIS Movement: 508 mm
Y-AXIS Rapid traverse: 25.4 m/min
Z-AXIS Movement: 635 mm
Z-AXIS Rapid traverse: 25.4 m/min

Tools

Slots in storage: 5
Type of tool holder: BT or CT 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (~ max): 737 mm
- - Spindle nose to table (~ min): 102 mm
- - Spindle mas rating 22. 4 kw
- - C axis - rotation: length: 1321 mm, width: 457 mm
- - Max tool diameter (full): 89 mm
- - Max tool weight: 5. 4 kg
- - Coolant capacity: 208 l

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
