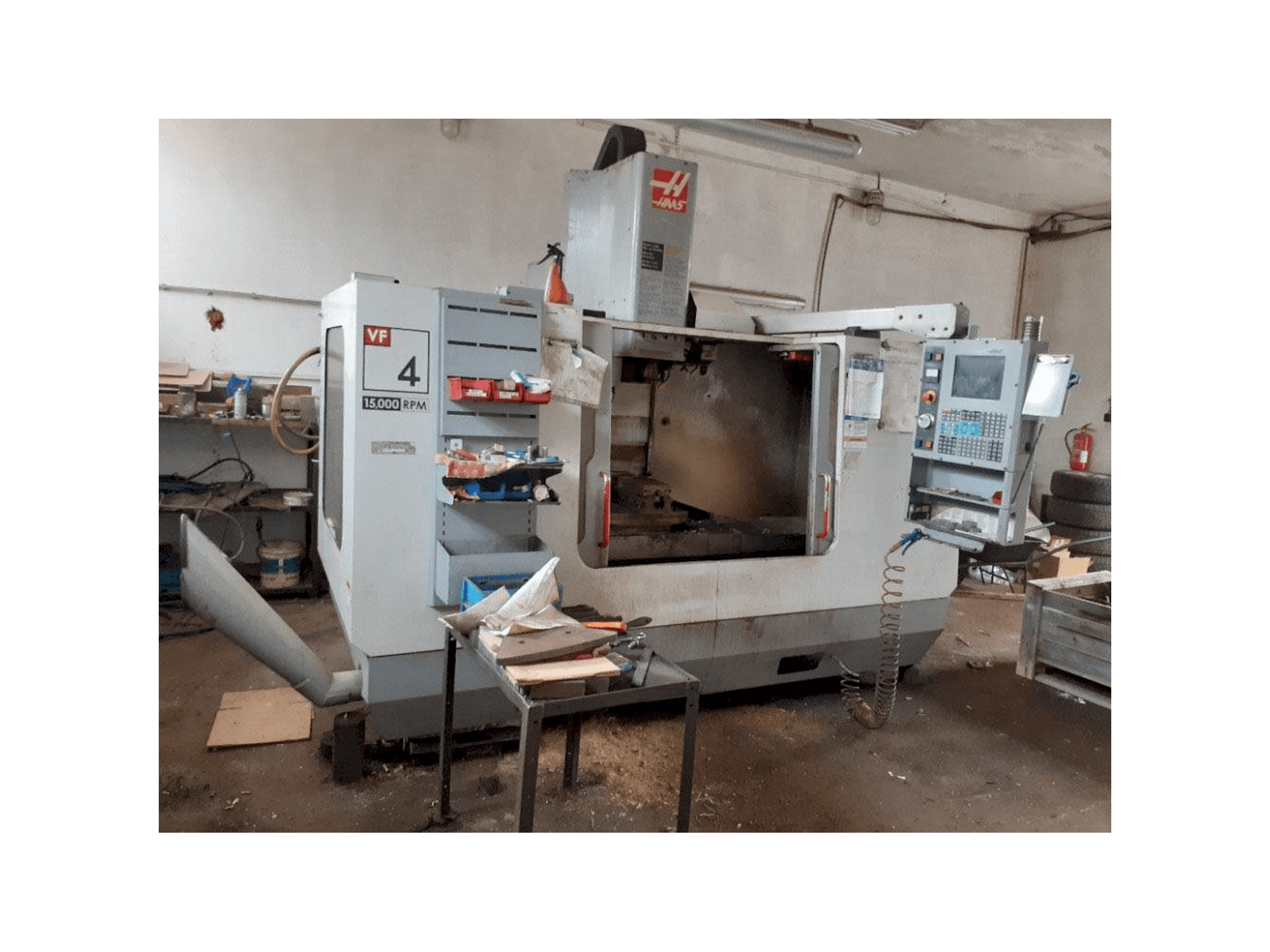

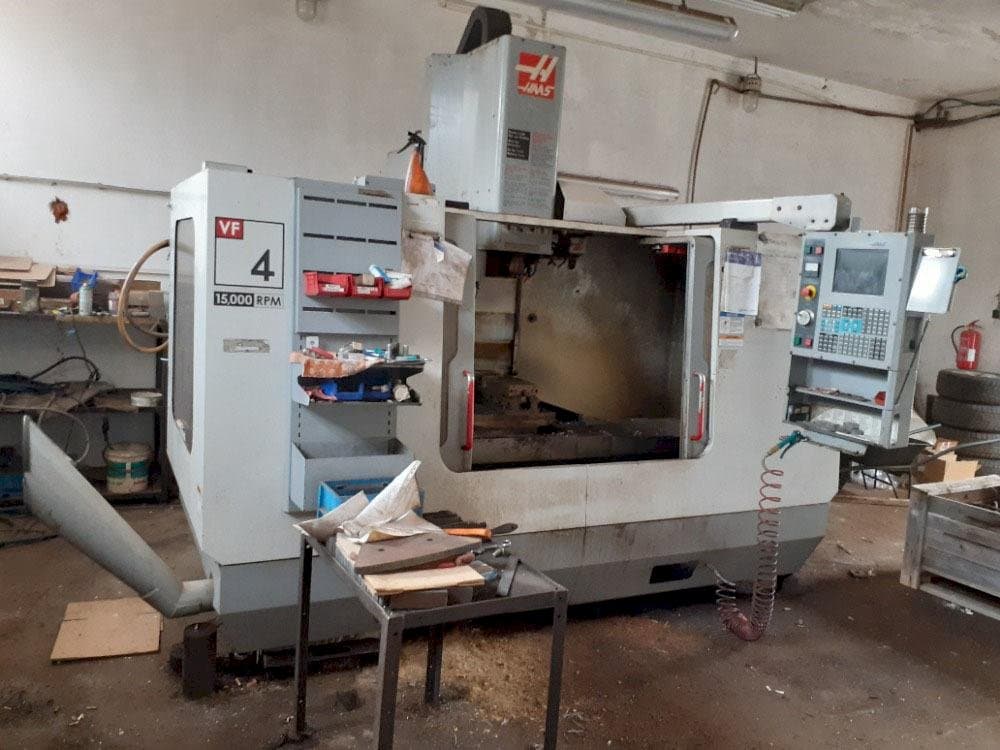

HAAS VF-4 DHE Vertical Machining center

Show in original language

This HAAS VF-4 DHE Vertical Machining center was manufactured in the year 2005 in the United States and has 12000 hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 15000 rpm, is in good condition and well maintained.

Overview

brand: HAAS
year: 2005
MODEL: VF-4 DHE
production hours: 12000
application type: Milling
Location: Czech Republic
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-4 DHE

General Data

Measurements width: 3629 mm
Measurements depth: 2794 mm
Measurements height: 2985 mm
Machine weight: 6300 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 15000 1/MIN
Spindle motor power: 14.9 kW
Number of axis: 3

Movement

X-AXIS Movement: 1270 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 1588 kg

Table

Outer length: 1321 mm
Outer width: 457 mm

Tools

Slots in storage: 20
Type of tool holder: 40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - 4th axis ready
- - Min-max height under spindle 102-737 mm
- - Tool probe preparation
- - Rigid tapping
- - Programmable coolant nozzle
Qualitative Machine Benefits:
- - Good condition, regularly maintained

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
