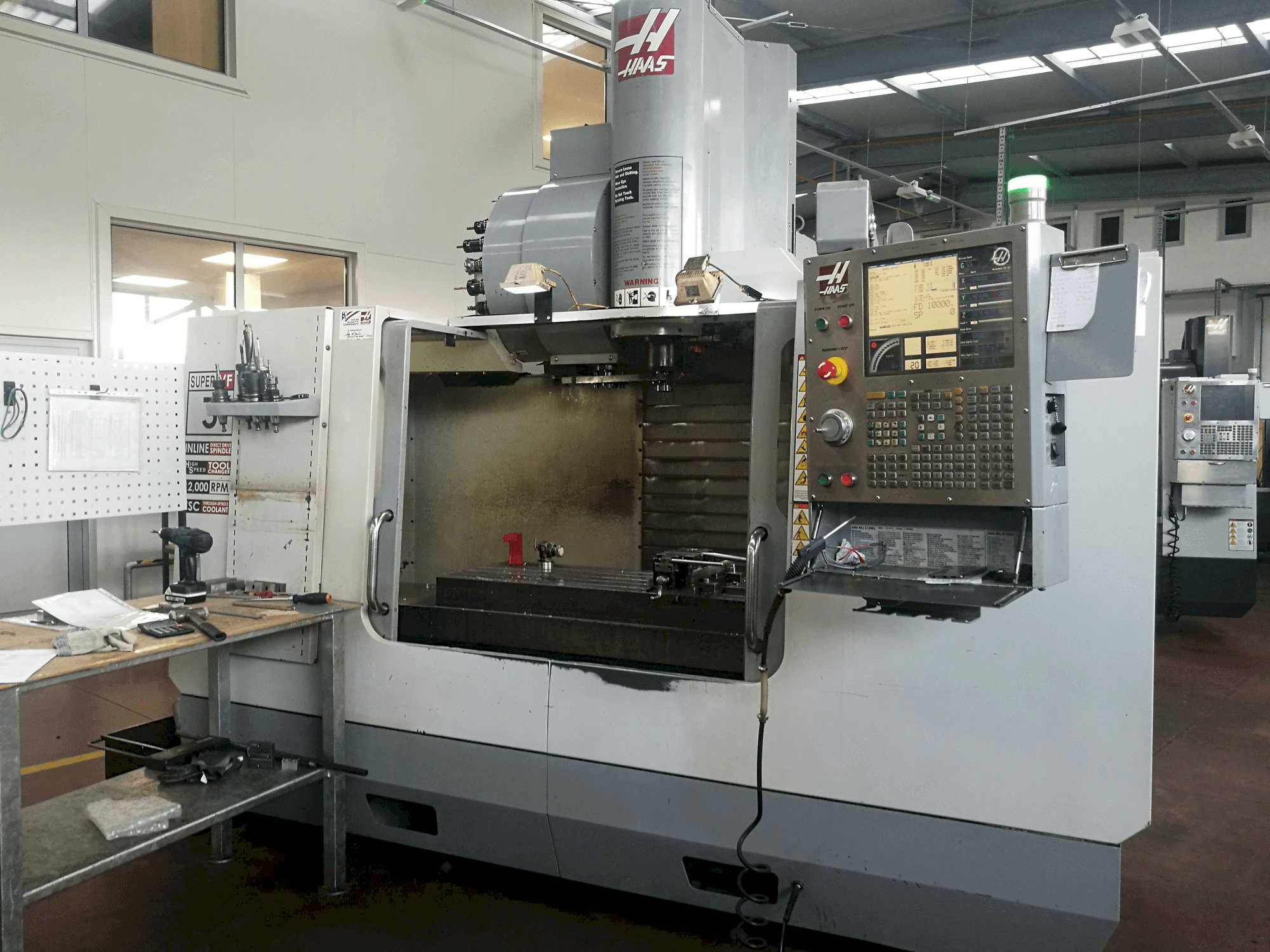

HAAS VF-3SSHE Vertical Machining Center

Show in original language

This HAAS VF-3SSHE Vertical Machining Center was manufactured in USA in 2007 and has a working time of 22000 production hours since then. Equipped with a HAAS Control unit, this model stands out for its high spindle speed up to 12000 rpm. It presents good conditions as it has been maintained by official Haas servicemen.

Overview

brand: HAAS
year: 2007
MODEL: VF-3SSHE
production hours: 22000
application type: Milling
Location: Croatia
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-3SSHE

General Data

Measurements width: 3200 mm
Measurements depth: 2900 mm
Measurements height: 3200 mm
Machine weight: 6140 kg

Control Unit

CNC main language: English
CNC language customizable: Yes
Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 12000 1/min

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Workpiece

Workpiece weight: 794 kg

Table

Outer length: 1219 mm
Outer width: 457 mm

Tools

Max weight: 5.4 kg
Max tool diameter: 64/127 MM
Max tool length: 279 MM

Media

Main electronic connection: 360 / 400 V
Chip conveyor: Yes
Internal cooling: Yes

Additional equipment

- Automatic Tool Changer (24 Slots)
- 4th Axis Software (Hardware not included)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
