- Haas VF-3SS Vertical Machining center

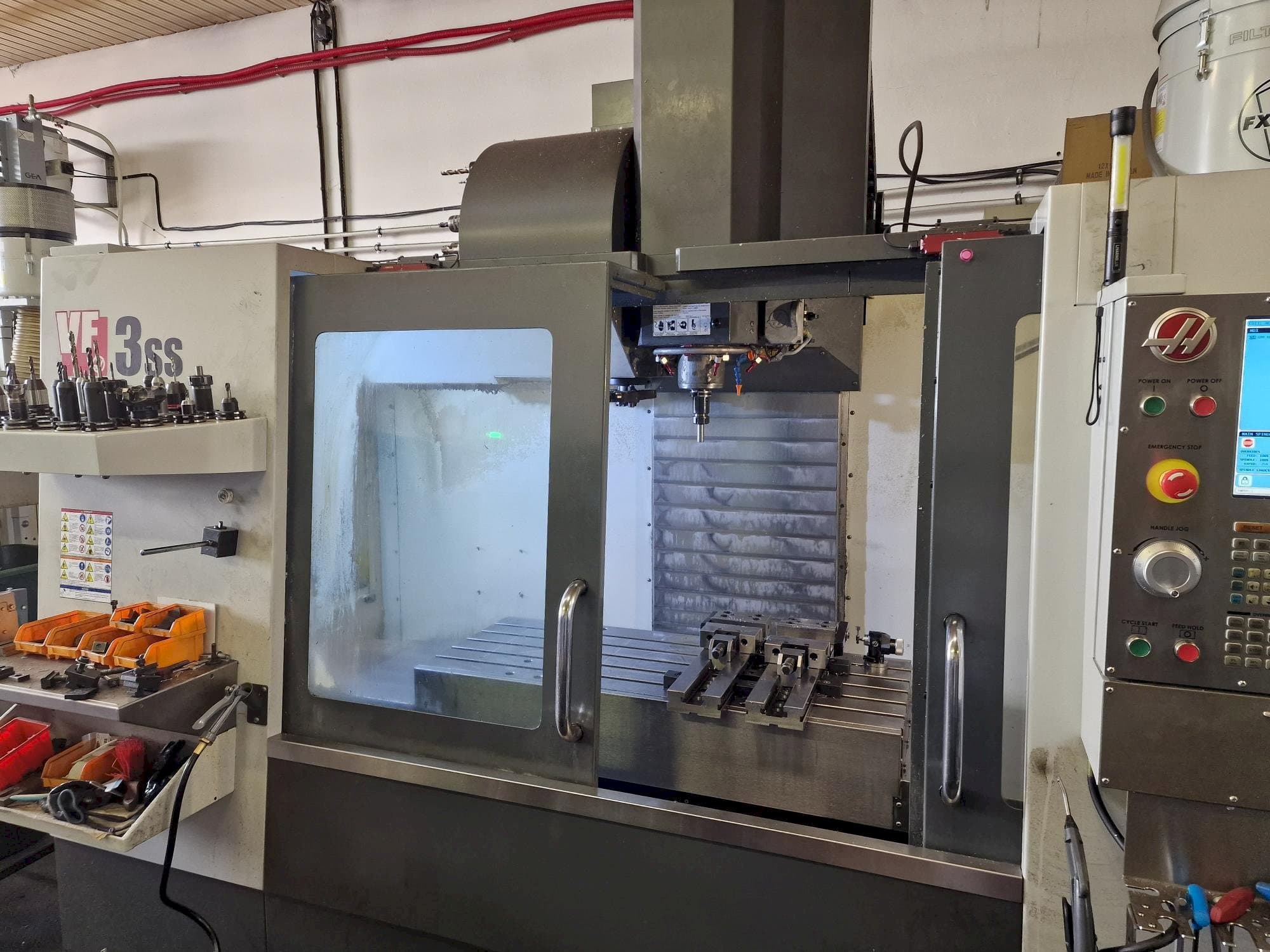

This Haas VF-3SS Vertical Machining center was manufactured in the year 2015 in the United States and has 8330 production hours, of which 2730 cutting hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm, is in very good condition and well maintained.
Overview
- brand: HAAS
- year: 2015
- MODEL: VF-3SS
- production hours: 8330
- application type: Milling
- Location: Slovakia
- machine type: Vertical Machining Centre
- availability: Sold
- control unit brand: HAAS
Technical Information - HAAS VF-3SS
General Data
- Measurements width: 3832 mm
- Measurements depth: 2640 mm
- Measurements height: 3108 mm
- Machine weight: 5670 kg
Control Unit
- Brand: HAAS
Main drive
- Number of spindles: 1
- Spindle speed range: 12000 1/MIN
- Number of axis: 3
Movement
- X-AXIS Movement: 1016 mm
- Y-AXIS Movement: 508 mm
- Z-AXIS Movement: 635 mm
Workpiece
- Workpiece weight: 794 kg
Table
- Outer length: 1219 mm
- Outer width: 457 mm
Tools
- Slots in storage: 24
- Type of tool holder: 40
Media
- Chip conveyor: Yes
- Internal cooling: Yes
Additional Information
- Material type: 50% aluminium, 30% steel, 20% plastics
- Technical Machine Benefits:
- - Spindle motor power 22. 4 kw
- - Rapid feedrates: 35. 6m/minute
- - Cooling through spindle
- - Incl. 2 probes (tool and workpiece)
- Qualitative Machine Benefits:
- - Very good condition!
- - Low hours
- - Machine in operation since 2016
Machine history
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
