➤ Used HAAS VF-3 | Vertical Center For Sale

Show in original language

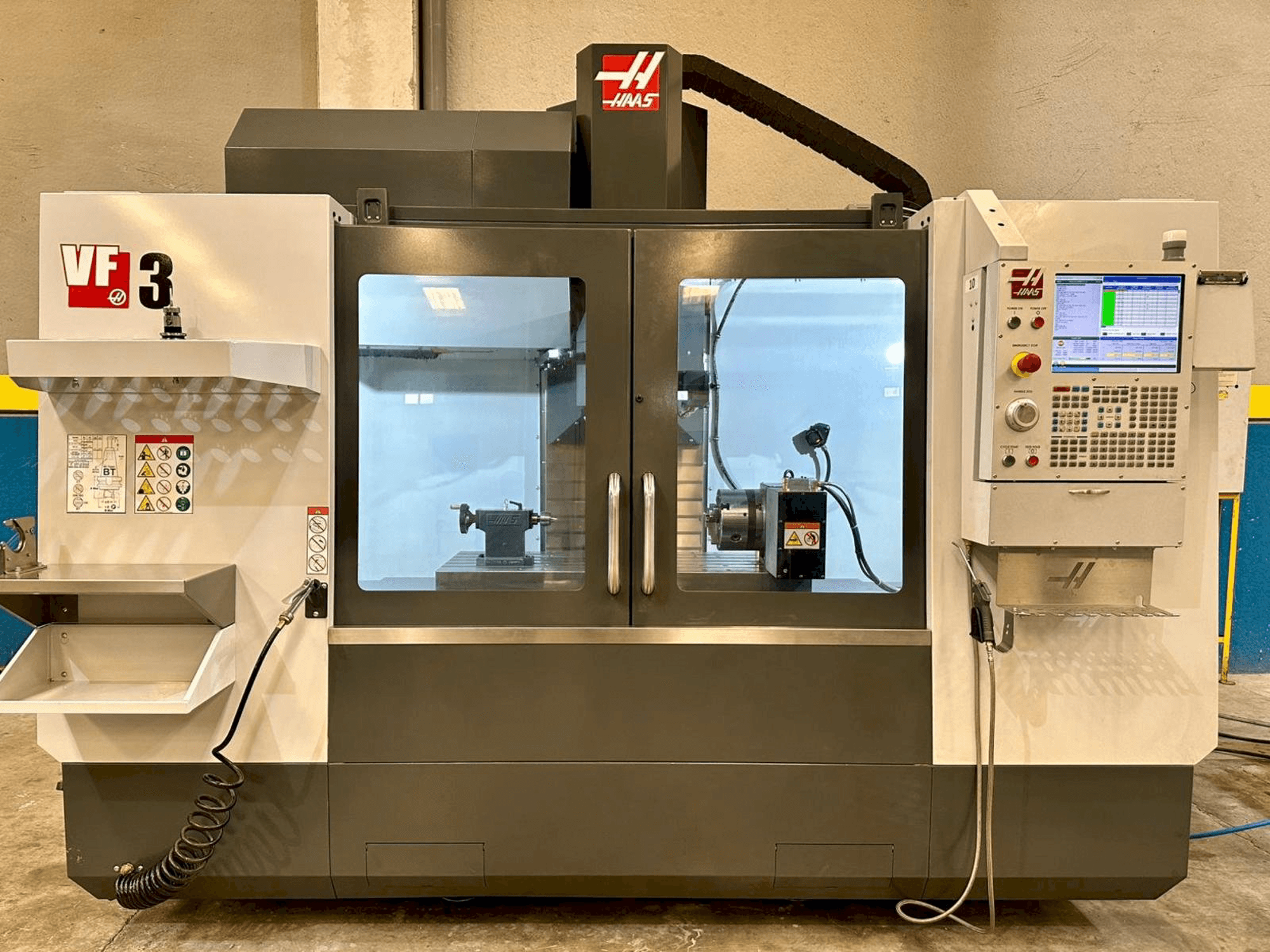

This 4-axis HAAS VF-3 vertical machining center was manufactured in 2019. It features a robust table measuring 1219 mm by 457 mm, capable of handling a maximum load of 1588 kg. Equipped with a high-power 22.4 kW spindle achieving up to 8100 rpm, and a versatile 30-slot tool changer, this machine also includes a 4th axis and probing capabilities. Ideal for complex machining tasks, buy this HAAS VF-3 vertical machining center. Contact us for further details.

Overview

brand: HAAS
year: 2019
MODEL: VF-3
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
availability: Immediately

Technical Information - HAAS VF-3

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kww

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 635 mm

Table

TSlots size: 15.9-16 mm
Number of tslots: 5
Distance between: 80 mm
Min distance between vertical spindle and table: 107 mm
Max distance between vertical spindle and table: 742 mm
Table load: 1588 kg

Tools

Slots in storage: 30
Max weight: 5.4 kg
Max tool diameter: 89 mm

Additional equipment

- 4th Axis
- Probing
- Coolant and Chip Treatment
- Tailstock

Additional Information

Machine Benefits

Technical Machine Benefits:
- - High spindle power and speed, extensive tool capacity, and advanced table specifications for handling heavy loads.
Qualitative Machine Benefits:
- - Enhanced precision with probing and 4th axis capabilities, efficient chip and coolant management.

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
