HAAS VF-2 Vertical Machine Center

Show in original language

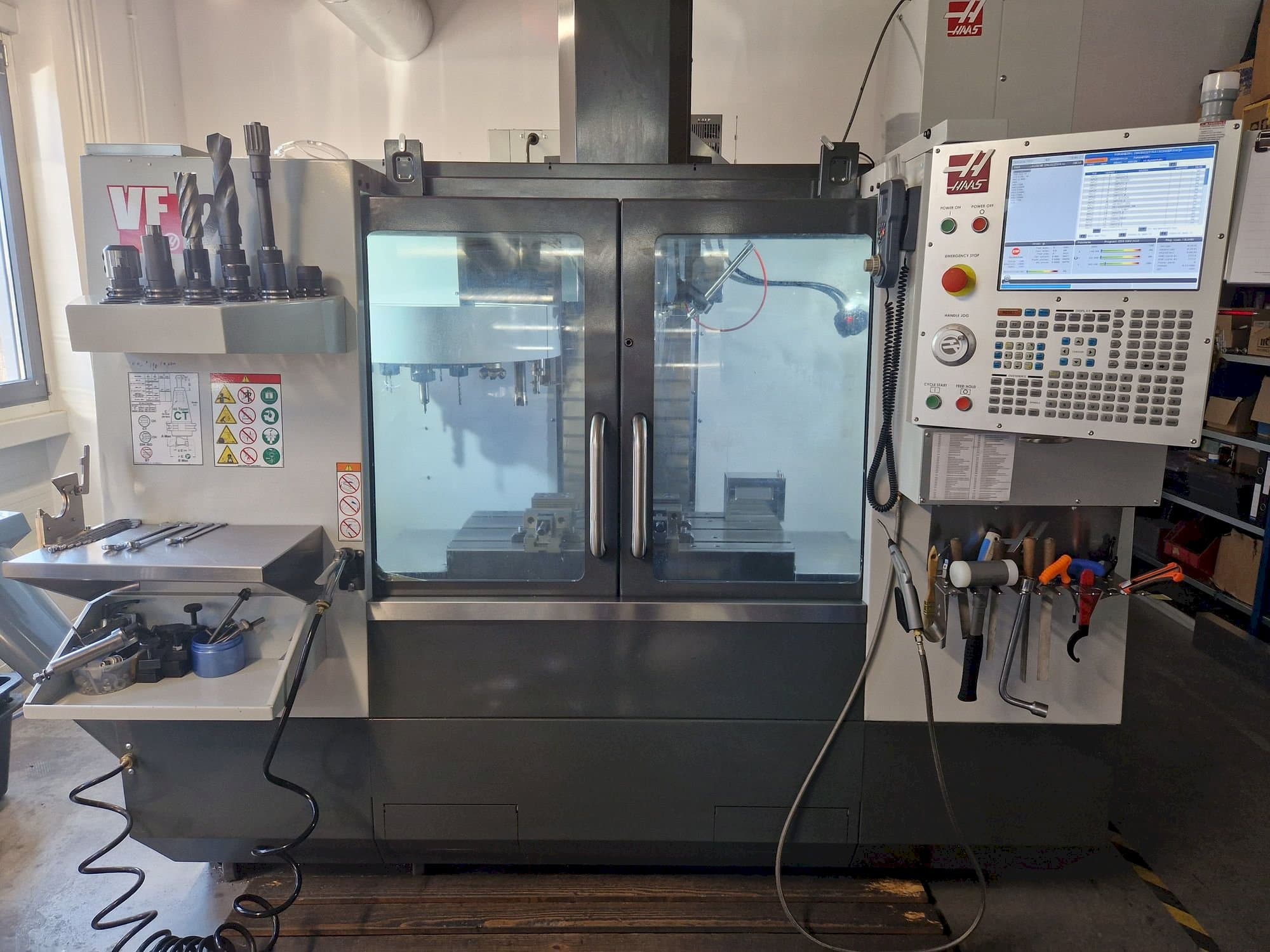

This HAAS VF-2 Vertical Machine Center was made in 2019 in the United States and has 5230 hours. It is equipped with a HASS version NGC control unit and has 3 axis. The machine has a spindle speed of 8100 rpm, and it is in perfect condition, with regular maintenance, and full documentation. The machine includes tool holders.

Overview

brand: HAAS
year: 2019
MODEL: VF-2
production hours: 5230
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS VF-2

General Data

Measurements width: 2789 mm
Measurements depth: 2357 mm
Measurements height: 2654 mm
Machine weight: 3311 kg

Control Unit

Model: NGC

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4kW
Tool taper: ISO 40 mounting cone
Number of axis: 3

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 914 mm
Outer width: 356 mm
Table load: 1361 kg

Media

Main electronic connection: 3x400V - 50hz

Additional equipment

- AUGER screw chip ejector
- P-COOL - programmable position of coolant nozzles
- PMDS - preparation for probe work
- WIPS-R - probe set for tool and workpiece measurement with SOM, COORD, MACRO
- Probes for workpieces and tools
- 30 pcs of tool holders

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table design t-slots 16mm wide with 125mm spacing
- - Maximum torque at 2000 rpm - 122 nm
- - Maximum torque at 450 rpm - 339 nm
- - Maximum pulling force of the x and y axes 11. 3 kn
- - Maximum pulling force of the z axis 18. 6 kn
- - Working feeds and run-up speed: running speed in x, y, z axes 25. 4 m/min, working feed rate 16. 5 m/min
- - Machine positioning accuracy +/-0. 005 mm
- - Repeatability of machine positioning +/-0. 003 mm
- - Cooling tank 208 l
- - Air pressure 6. 9 bar, air consumption 113 l/min
Qualitative Machine Benefits:
- - Machine in perfect condition, regular maintenance, full documentation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
