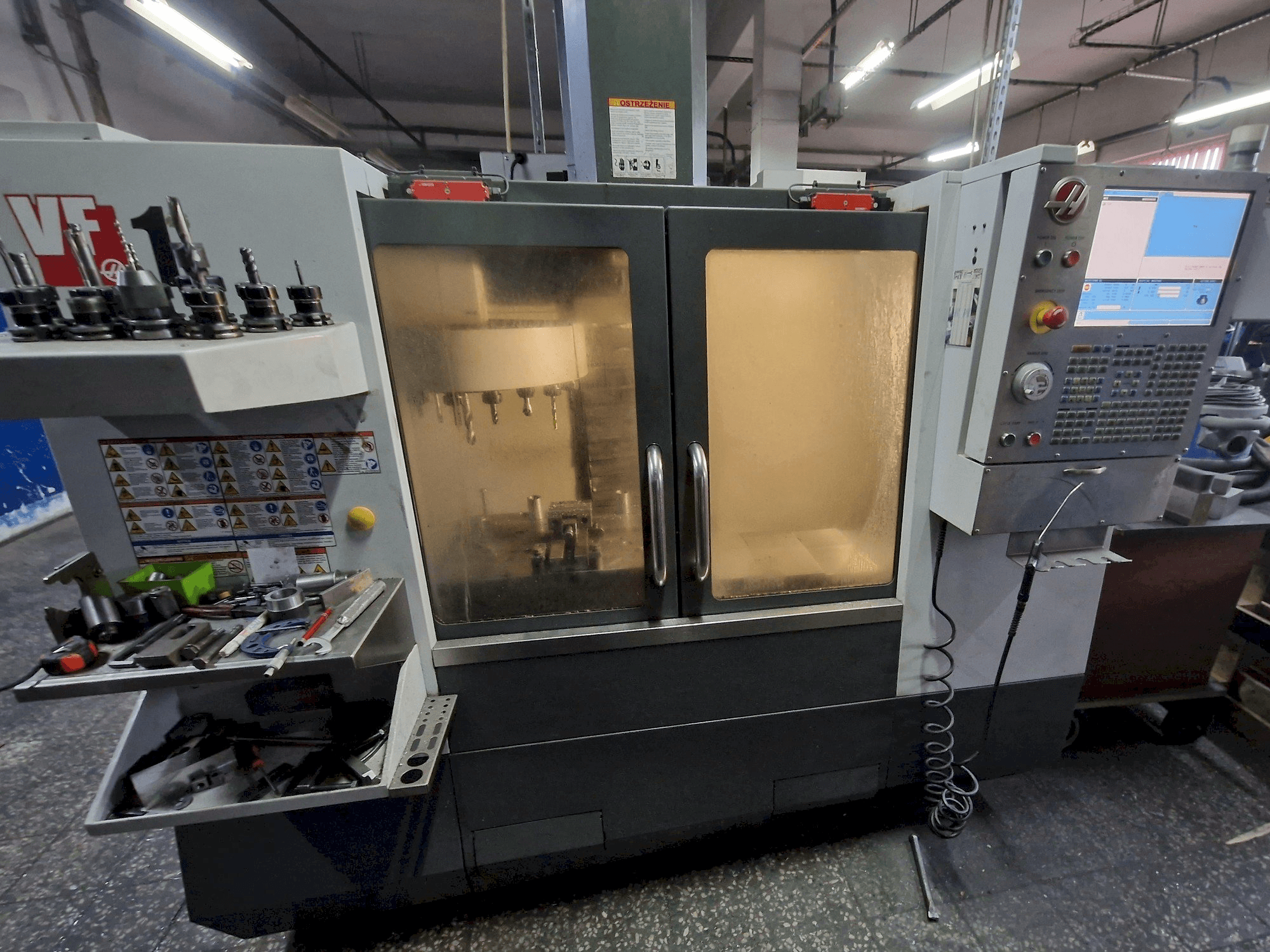

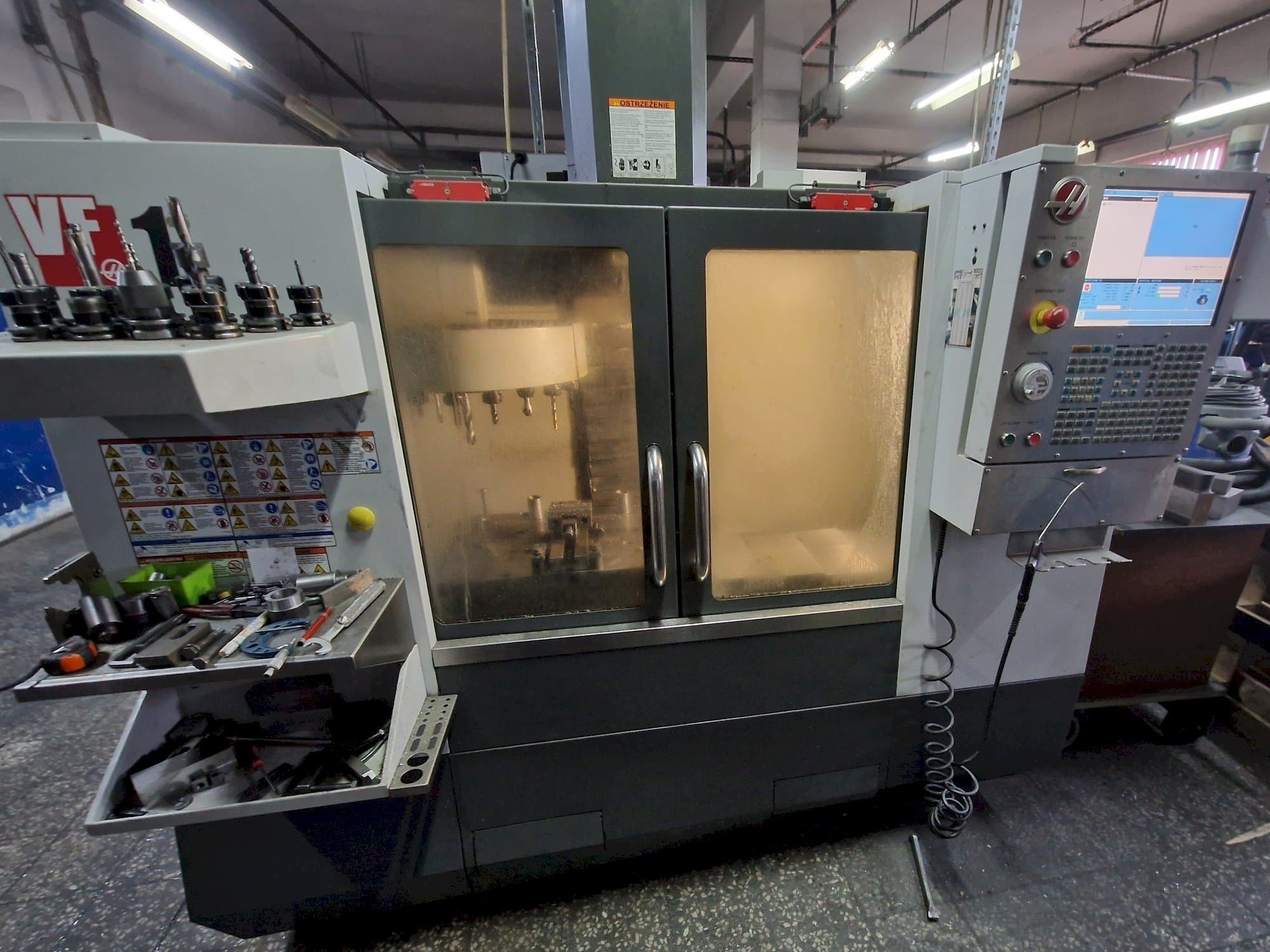

HAAS VF-1 Vertical Machining Center

Show in original language

This HAAS VF-1 Vertical Machining Center was made in the United States in the year 2012. It is equipped with a Haas control unit and has 3 axis. The machine has a spindle speed of 8100 rpm, and is in good working condition, ready for tests.

Overview

brand: HAAS
year: 2012
MODEL: VF-1
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS VF-1

General Data

Measurements width: 3175 mm
Measurements depth: 2489 mm
Measurements height: 2667 mm
Machine weight: 3300 kg

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kw
Tool taper: BT-40
Number of axis: 3

Movement

X-AXIS Movement: 508 mm
Y-AXIS Movement: 406 mm
Z-AXIS Movement: 508 mm

Table

Outer length: 660 mm
Outer width: 356 mm
Table load: 1361 kg

Tools

Max weight: 5.4 kg
Max tool diameter: 89 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (min/max) - 102 mm / 610 mm
- - Tool magazine: carousel type, 20 pos
- - Coolant capacity: 208 l
Qualitative Machine Benefits:
- - The machine is in good working condition
- - Ready for tests

Extra information

- Tooling is not included in the offer

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
