➤ Used HAAS UMC-750 For sale | gindumac.com

Show in original language

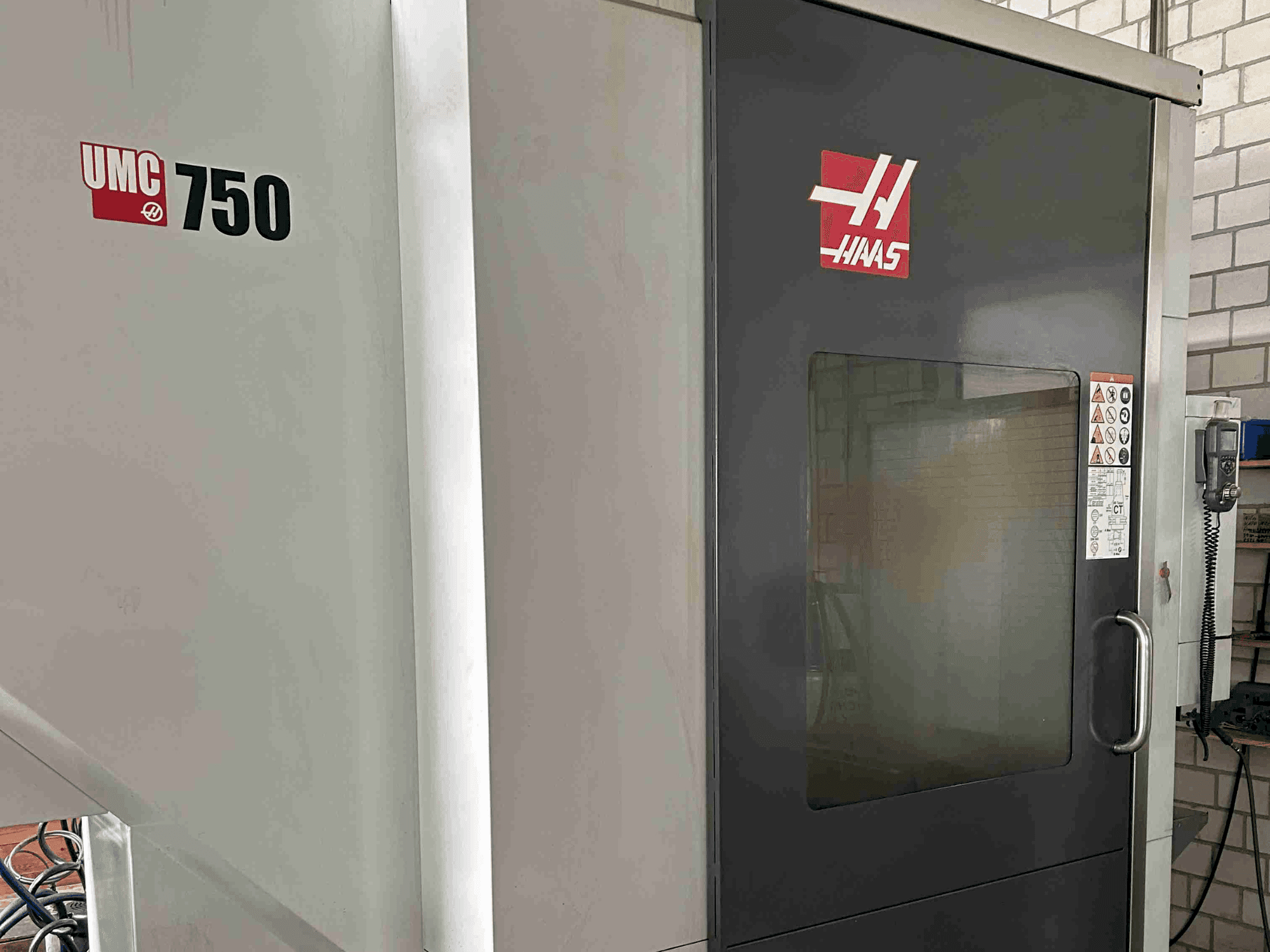

This 5-axis HAAS UMC-750 vertical machining centre was manufactured in 2017. It features a SK-40 spindle with 12,000 rpm and a 22.4 kW vector drive. Equipped with a 40+1 tool changer and a 500 mm 2-axis rotary/swivel table, it offers rapid traverse rates up to 30.5 m/min. Additional features include a coolant through spindle at 69 bar and a hinged belt chip conveyor. Contact us for further details regarding this vertical machining centre.

Overview

brand: HAAS
year: 2017
MODEL: UMC-750
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - HAAS UMC-750

Main drive

Number of spindles: 1
Spindle speed range: 12000 rpm 1/MIN
Spindle motor power: 22.4 kW
Tool taper: SK-40
Number of axis: 5

Movement

X-AXIS Movement: 762 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 508 mm

Tools

Number of index: 41

Media

Chip conveyor: Yes

Additional equipment

- Fully functional, under power, ready for demonstration
- Integrated 500 mm 2-axis rotary/swivel table
- Intuitive wireless touch probe system
- Programmable coolant nozzle
- Additional coolant filter system 25μ
- Hinged belt chip conveyor

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Ikz: yes (69 bar)
- - High throughput with rapid traverse rates up to 30. 5 m/min
- - Efficient and precise machining with integrated rotary table and wireless touch probe
- - Enhanced coolant delivery through spindle with high pressure (69 bar)
Qualitative Machine Benefits:
- - Enhanced machining accuracy and surface finish
- - Improved tool life and reduced machine downtime
- - Improved coolant management with programmable nozzle and additional filter system

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
