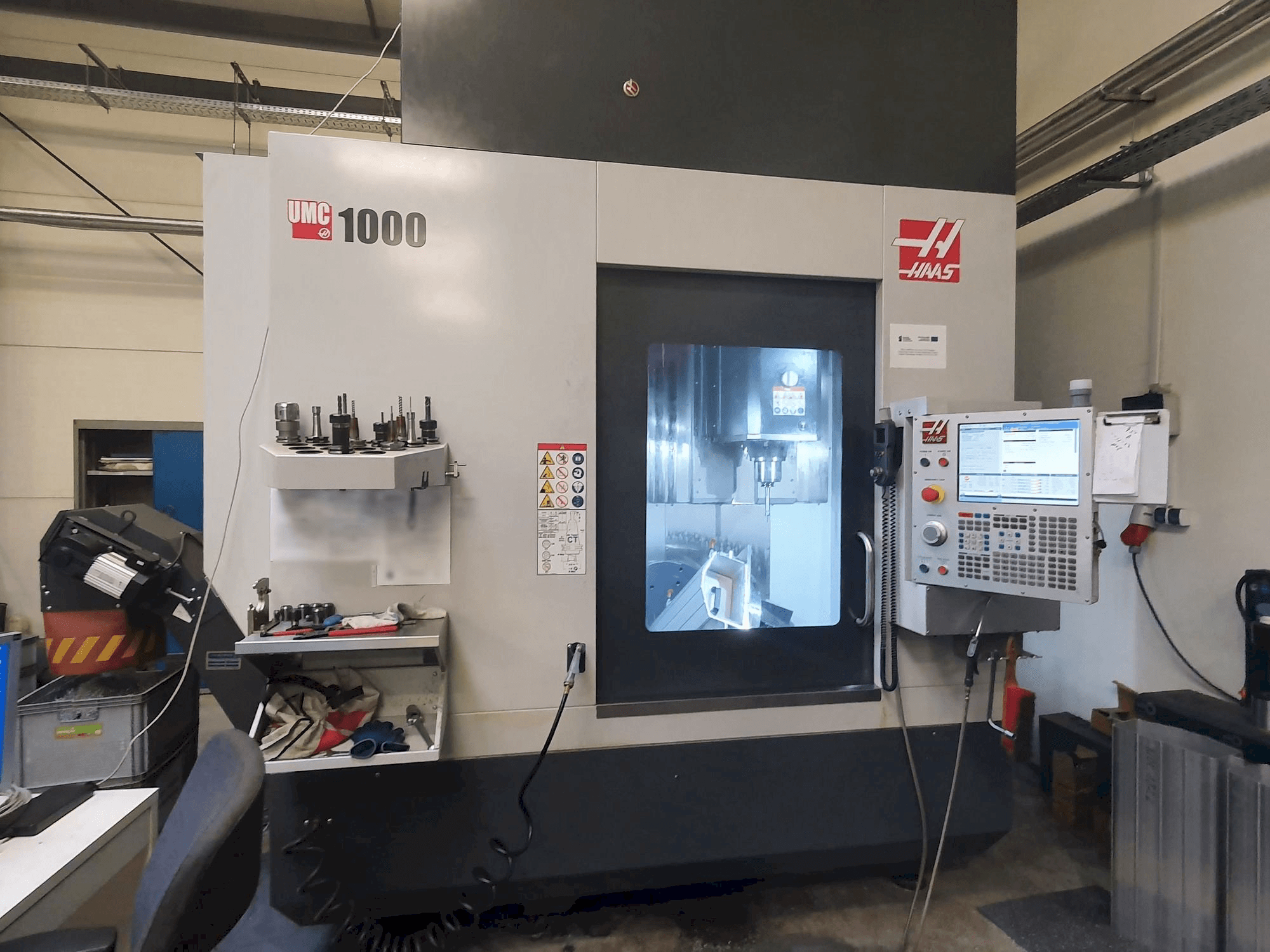

HAAS UMC-1000 Vertical Machining center

Show in original language

This HAAS UMC-1000 Vertical Machining center was manufactured in the year 2019 in the United States. It is equipped with a HAAS NGC control unit and has 5 axis. The machine has a spindle speed of 8100 rpm, is in very good condition and well maintained.

Overview

brand: HAAS
year: 2019
MODEL: UMC-1000
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS UMC-1000

General Data

Measurements width: 3759 mm
Measurements depth: 2311 mm
Measurements height: 2565 mm
Machine weight: 6931 kg

Control Unit

Model: NGC
Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1016 mm
Y-AXIS Movement: 635 mm
Z-AXIS Movement: 635 mm

Table

Table load: 454 kg

Media

Main electronic connection: 440V / 50Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle nose to table (~ max) - 737 mm spindle nose to table (~ min) - 102 mm
- - B axis: travel +120°, -35° max speed 50°/sec max torque 9964 nm brake torque 2712 nm
- - C axis: travel 360° max torque 8247 nm max part swing 864 mm brake torque 1220 nm max speed 50°/sec
- - Max rating: 22. 4 kw
- - Max torque: 122 nm @ 2000 rpm
- - Drive system: inline direct-drive
- - Taper sk40
- - Type - smtc
- - Capacity - 50+1 pcs
- - Acf – additional filtration system for aluminum 25um
Qualitative Machine Benefits:
- - Tsc – cooling trough the spindle 21 bar
- - Conveyor-h – chip conveyor
- - Hsm -processor with look-ahead
- - Smtc-20-40t – tool magazine 50 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
