HAAS - UMC 1000DE-MIL-HAA-2023-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HAAS UMC 1000 For Sale | gindumac.com

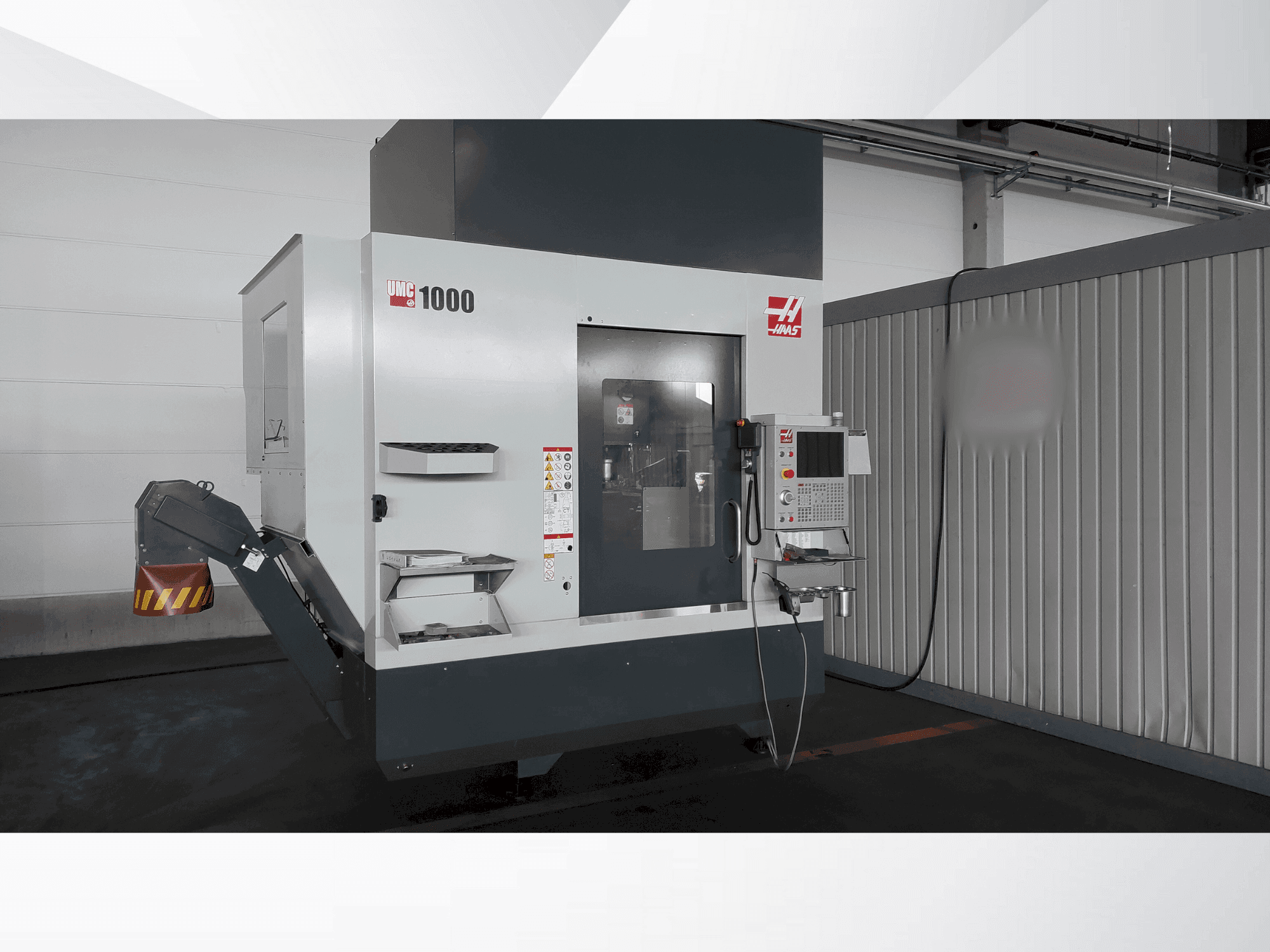

This 5-axis HAAS UMC 1000 universal machining centre was manufactured in 2023. It features a Ø 635 mm table, SK40 tool holder, and a main spindle speed of 8,100 min-1. The machine supports a max. table load of 454 kg and includes a 30 + 1 tool magazine. Additional features include a Renishaw touch probe system, portable control panel with XL touchscreen, and HAAS CNC control. Consider the opportunity to buy this HAAS UMC 1000 universal machining centre. Contact us for more information.
Overview
- brand: HAAS
- year: 2023
- MODEL: UMC 1000
- application type: Milling
- Location: Germany
- machine type: Universal Machining Centre
- availability: Immediately
- control unit brand: HAAS
Technical Information - HAAS UMC 1000
General Data
- Measurements width: 3600 MM
- Measurements depth: 3150 MM
- Measurements height: 3410 MM
- Machine weight: 7500 KG
Control Unit
- Brand: HAAS
Main drive
- Tool taper: SK40
- Number of axis: 5
Movement
- X-AXIS Movement: 1016 mm
- X-AXIS Working Feed: 16.5 m/min
- X-AXIS Rapid traverse: 22.9 m/min
- Y-AXIS Movement: 635 mm
- Y-AXIS Working Feed: 16.5 m/min
- Y-AXIS Rapid traverse: 22.9 m/min
- Z-AXIS Movement: 635 mm
- Z-AXIS Working Feed: 16.5 m/min
- Z-AXIS Rapid traverse: 22.9 m/min
- B-AXIS Movement: +120° to -35° MM
- B-AXIS Working Feed: 50°/s
- B-AXIS Rapid traverse: 50°/s
- C-AXIS Movement: 360° MM
- C-AXIS Working Feed: 50°/s
- C-AXIS Rapid traverse: 50°/s
Table
- Min distance between vertical spindle and table: 102 mm
- Max distance between vertical spindle and table: 737 mm
Tools
- Slots in storage: 30 + 1
- Max weight: 5.4 kg
- Max tool diameter: (Full / Secondary Positions Free): 63.5 / 127 mm
- Max tool length: 305 mm
Additional equipment
- - Rotary & Swivel Table with Scale Measuring System for Better Accuracy
- - Intuitive, Wireless Touch Probe System from Renishaw
- - Portable Control Panel with XL Touchscreen
- - Blowing Out of the Spindle Cone with Every Tool Change
- - Button to Manually Release the Tool
- - Automatic Minimum Quantity Lubrication System for Axes and Spindle
- - Air Conditioning for Cooling the Control Cabinet
- - Flood Coolant System with Variable Pump Capacity
- - External Coolant Tank with 208 Liter Capacity
- - ca. 25 working hours
Additional Information
- Technical Machine Benefits:
- - Positioning accuracy x, y & z: +/- 0. 005 mm
- - Repeat accuracy x, y & z: +/- 0. 003 mm
- - Positioning accuracy b & c: +/- 30 arc sec
- - Repeat accuracy b & c: +/- 15 arc sec
- - Table size: Ø 635 mm
- - Table design: t-grooves 16 mm / 7 pcs
- - Max. Table load: 454 kg
- - Max. Rotation diameter on the table: 864 mm
- - Tool change time: 2. 8 s
- - Chip to chip time: approx. 3. 6 s
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Sergi Guardia
Payment Terms
Payment in advance
Asset Financing
