HAAS HS-1RP HE Horizontal Machining Center

Show in original language

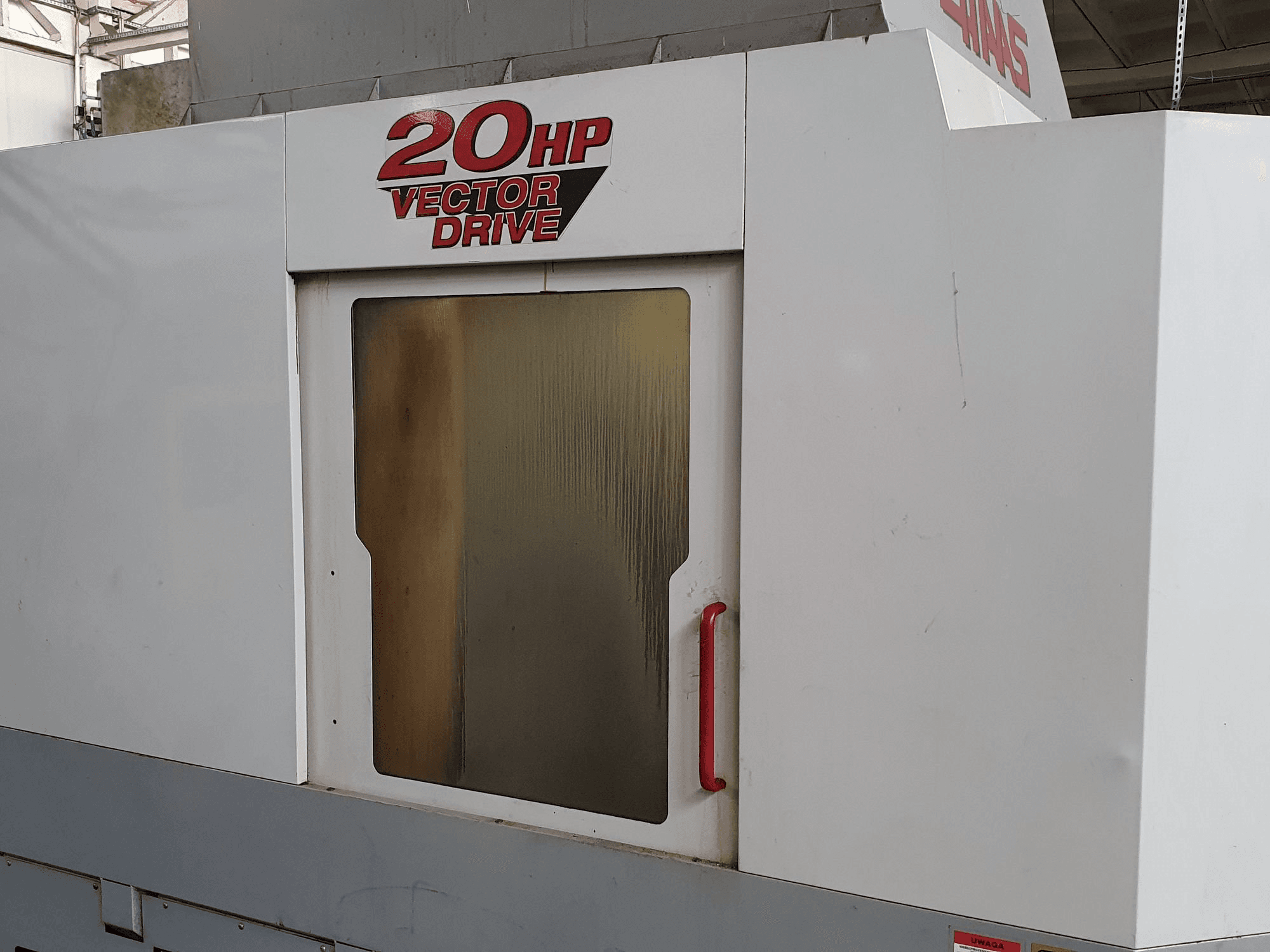

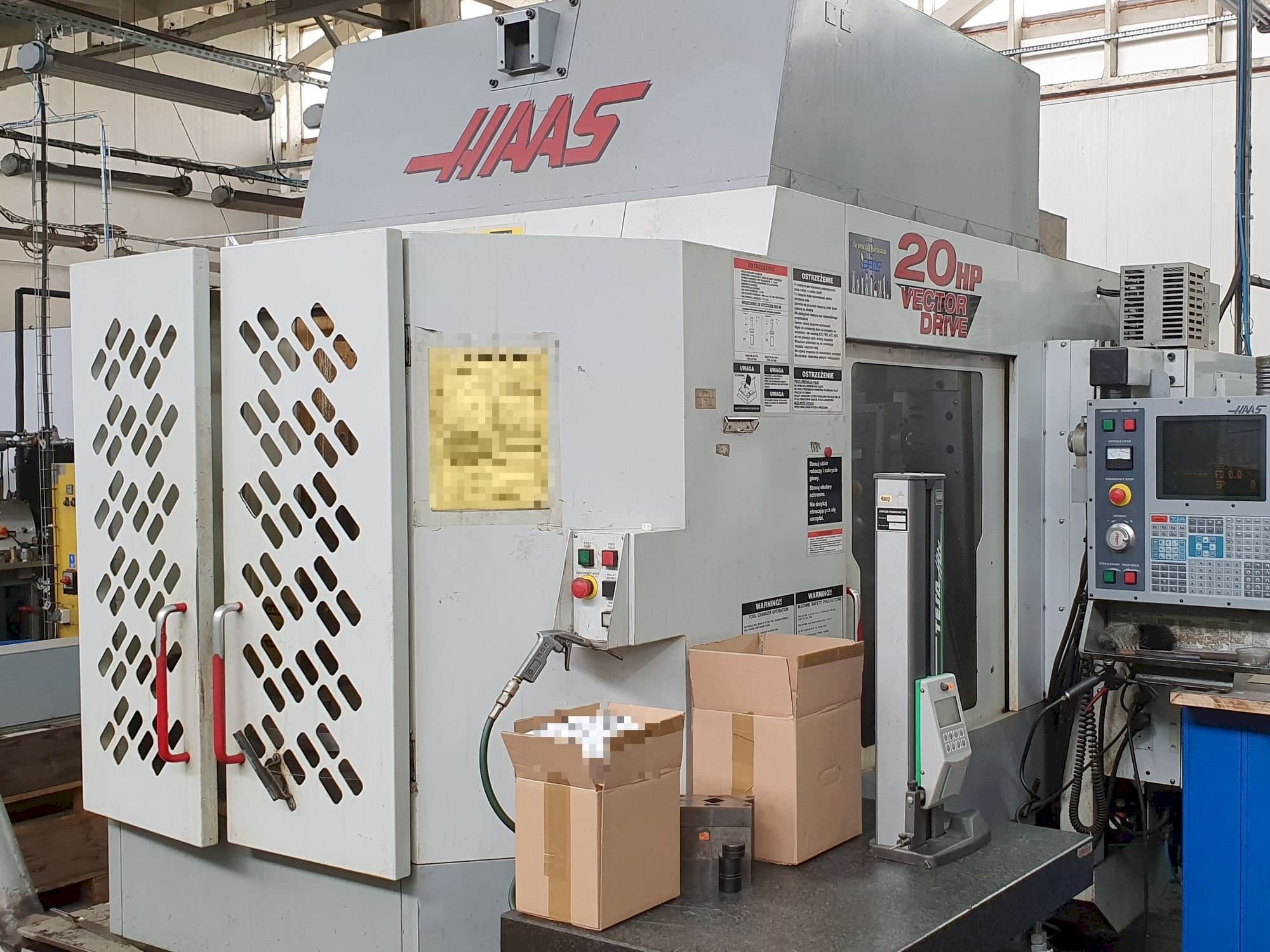

This HAAS HS-1RP HE Horizontal Machining Center was built in the year 2002 in the United States. It is operated through a control unit of the same brand. This machine incorporates 4 axis, and a spindle speed up to 7500 rpm.

Overview

brand: HAAS
year: 2002
MODEL: HS-1RP HE
application type: Milling
Location: Poland
machine type: Horizontal Machining Centre
availability: Sold

Technical Information - HAAS HS-1RP HE

General Data

Measurements width: 3680 mm
Measurements depth: 3580 mm
Measurements height: 2820 mm
Machine weight: 7300 kg

Main drive

Spindle speed range: 0 - 7500 1/MIN
Spindle motor power: 22 kW

Movement

X-AXIS Movement: 610 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 559 mm

Table

Outer length: 406 mm
Outer width: 406 mm
Table load: 270 kg

Media

Main electronic connection: 3 x 400 V 50 / 60Hz

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working speed: max 12. 7 m / min
- - Cooling unit 300 l tank
- - Max tool weight: 6 kg
- - Max. Tool diameter: 89 mm
- - Tool changer positions: 24

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
