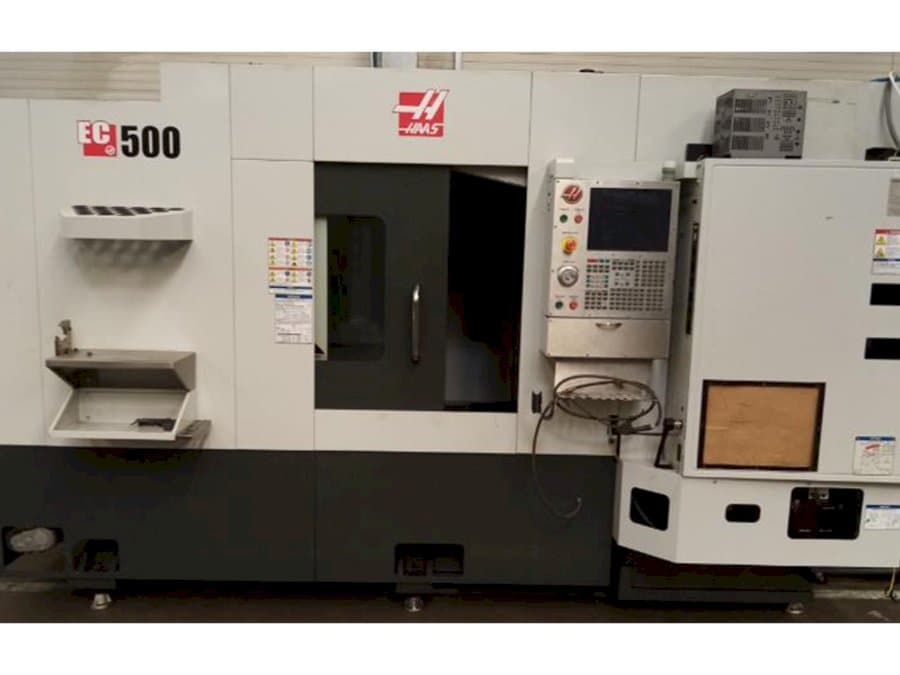

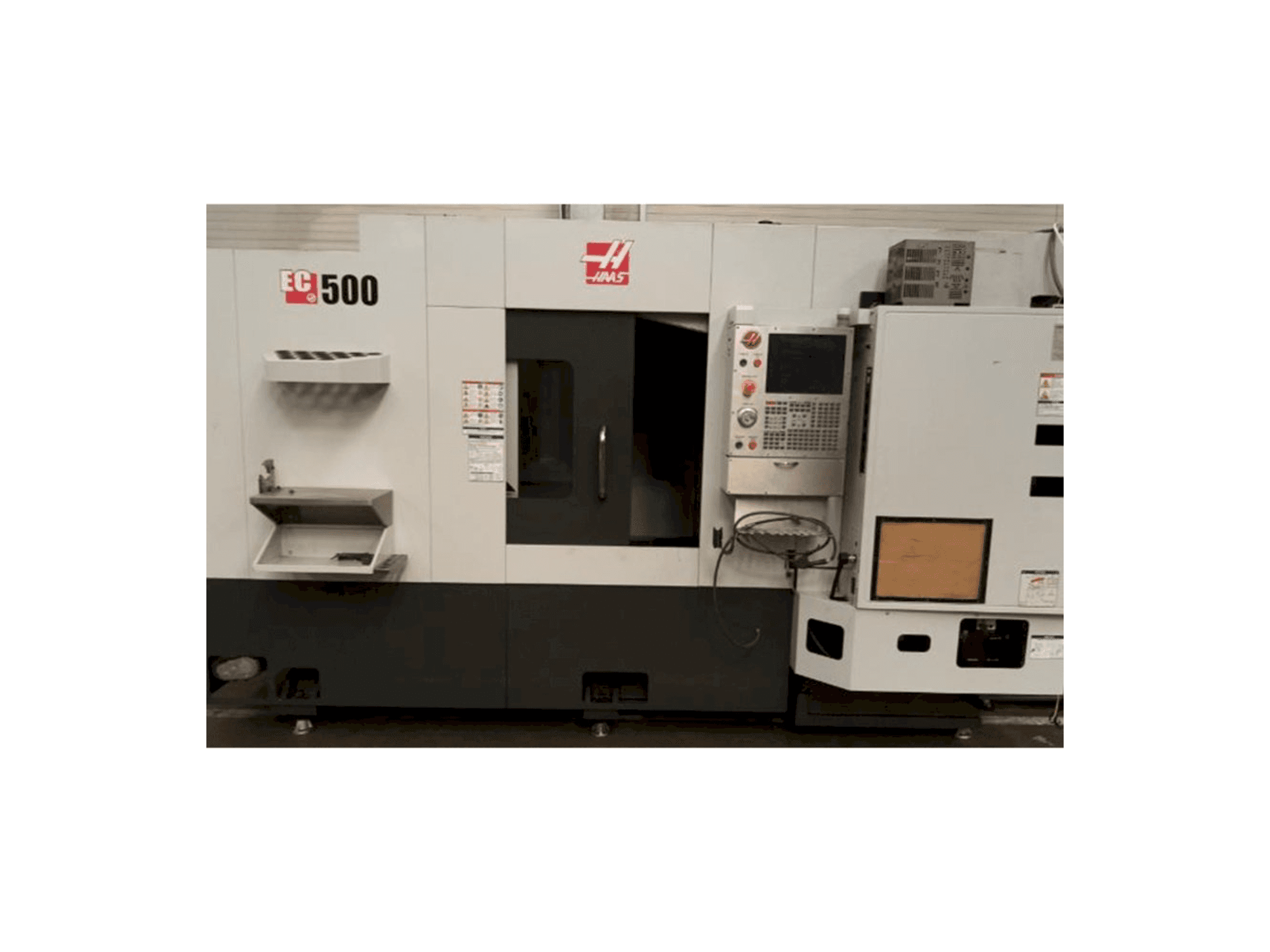

➤ Used HAAS EC-500 - 2015 - Horizontal Machining Center

Show in original language

This HAAS EC-500 Horizontal Machining Center was manufactured in 2015 in the United States. It has a working history of 502 hours. It is equipped with a control unit of the same brand. This 4 axis machine can work with a spindle speed range between 0 - 8100 rpm. It includes 40 tool slots.

Overview

brand: HAAS
year: 2015
MODEL: EC-500
production hours: 502
application type: Milling
Location: Hungary
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS EC-500

General Data

Machine weight: 11820 KG

Control Unit

Brand: HAAS

Main drive

Spindle speed range: 8100 1/MIN
Spindle motor power: 22.4 kW
Number of axis: 4

Movement

X-AXIS Movement: 813 mm
Y-AXIS Movement: 508 mm
Z-AXIS Movement: 711 mm

Tools

Slots in storage: 40
Type of tool holder: SK40

Media

Main electronic connection: 488V / 60 Hz

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
