HAAS EC-1600 Horizontal Machining Center

Show in original language

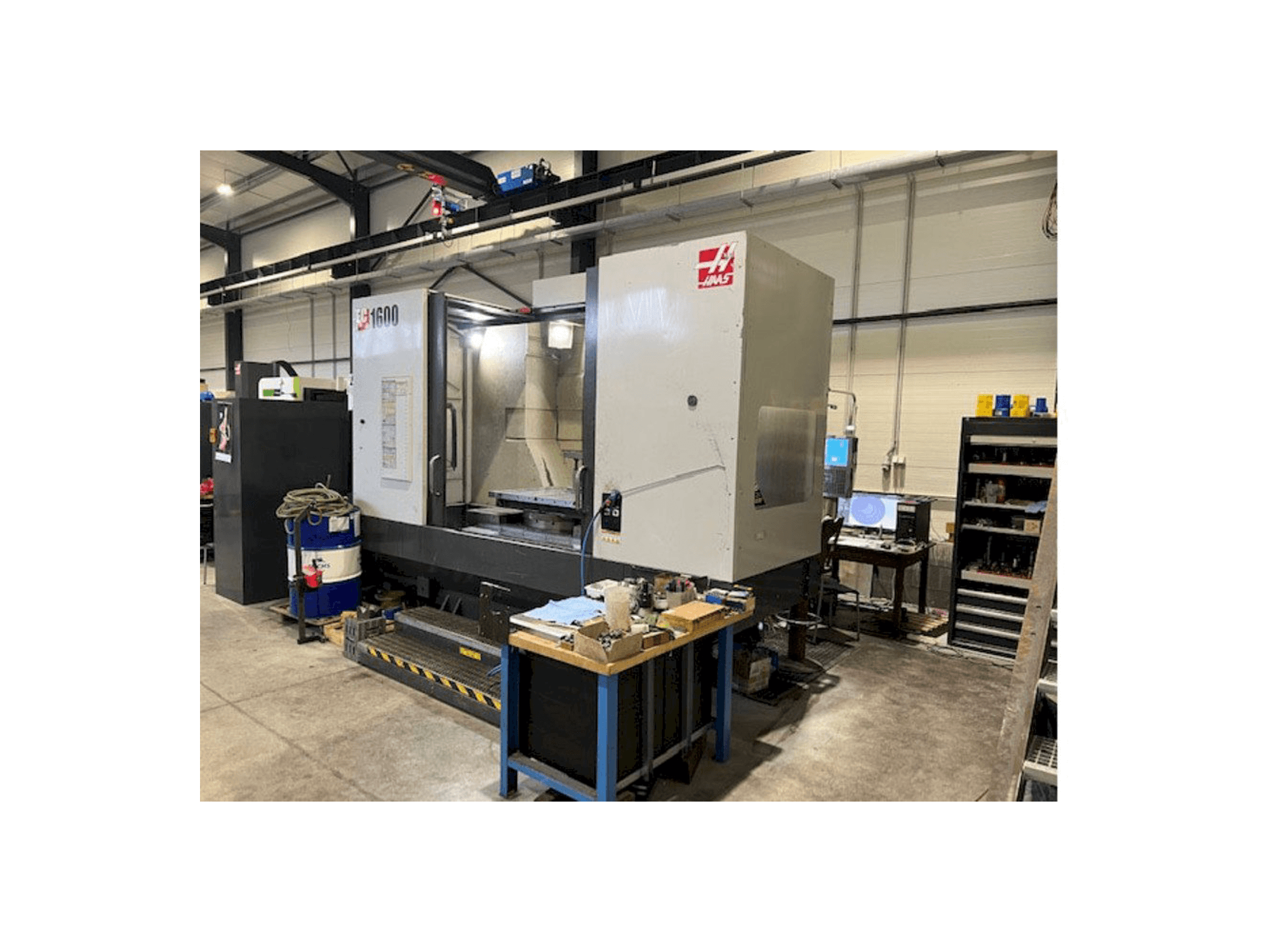

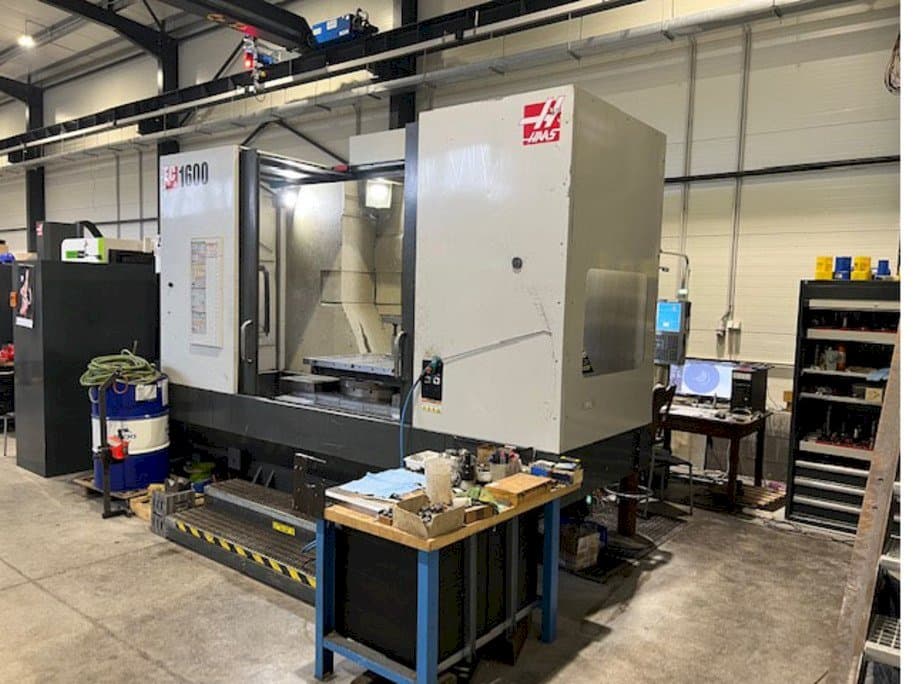

This HAAS EC-1600 Horizontal Machining Center was manufactured in the year 2012 in the United States. It is equipped with a HAAS control unit and has 5 axis. The machine has a spindle speed of 6000 rpm and is in very good condition and well maintained.

Overview

brand: HAAS
year: 2012
MODEL: EC-1600
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: HAAS

Technical Information - HAAS EC-1600

General Data

Machine weight: 14300 kg

Control Unit

Brand: HAAS

Main drive

Number of spindles: 1
Spindle speed range: 6000 1/MIN
Number of axis: 5

Movement

X-AXIS Movement: 1625 mm
Y-AXIS Movement: 1270 mm
Z-AXIS Movement: 813 mm

Workpiece

Workpiece weight: 4539 kg

Table

Outer length: 1626 mm
Outer width: 914 mm

Tools

Slots in storage: 50
Type of tool holder: BT50

Media

Main electronic connection: 360-480/ 50-60 Hz
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Through spindle coolant 300 psi
- - 5th axis (haas hrt 310) table
- - Heidenhain tool and workpiece probes
- - 4th axis rotary table
- - High speed machining option
Qualitative Machine Benefits:
- - Very good condition!
- - 2021 - new spindle
- - 2021 - new gearbox incl. Motor

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
