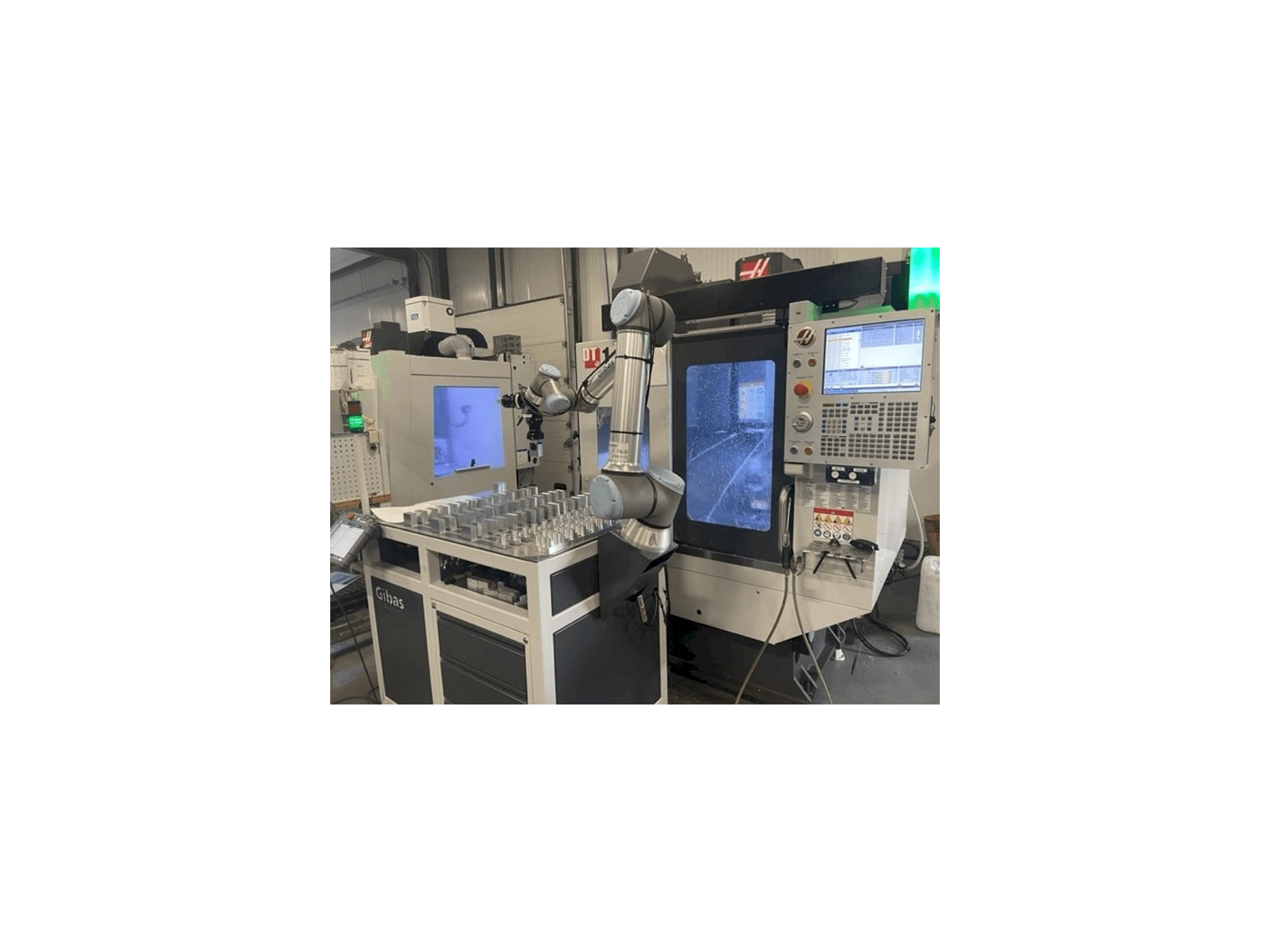

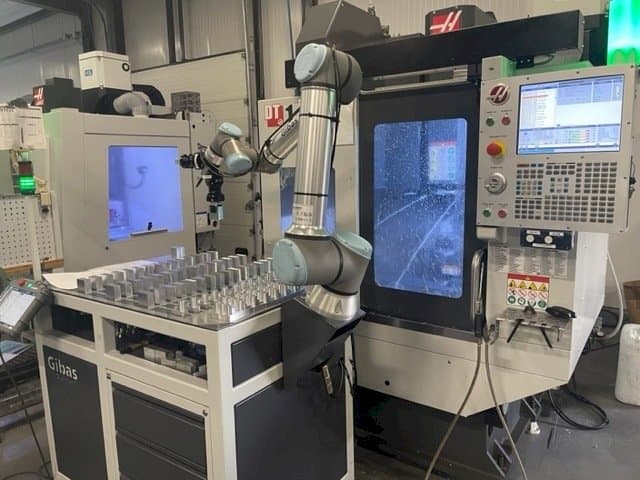

HAAS - DT-1 with Universal Robot UR10E Automation CellNL-MIL-HAA-2018-00001

Additional Information

Machine Benefits

• Technical Machine Benefits:
  • - 21 tool warehouse
  • - 20 bar cooling through the spindle / through-spindle coolant ready + through spindle coolant (tsc)
  • - Air through the spindle (through tool airblast (tab)
  • - 4th and 5th axis drive
  • - Wireless intiuitive probe system
  • - Programmable coolant nozzle
  • - Chip auger / chip conveyor
  • - Haas connect
  • - Dwo/tcpc (dynamic work offsets and tool center point control)
  • - High speed machining option
• Qualitative Machine Benefits:
  • - Visual programming system
  • - Automatic door (delivered by gibas)

Extra information

• - INCLUDING UNIVERSAL ROBOT UR10E AUTOMATION CELL: 10 KG, 1300mm reach Repeat accuracy of the robot +/- 0.05mm 6 axles. Clamping installation including various jaws and grippers for different shapes, such as round products Various grid plates Grid table on wheels. Robot, controller, touchscreen control unit and the cables between them • Software (GUI) • Table with storage space for the controller and a mounting point for the touchscreen • Positioning system for products (incl. warehouse for product carriers) • 1 double pneumatic gripper • Tool nose camera from Robotiq, for 2D product recognition and random picking • Blow-off unit (incl. valve) • Compressed air treatment unit • Signal tower • Position triangle products, with product presence sensorVision system - • Interfacing and automating existing door: Complete clamp centering clamping system SMW car block with various jaws.
