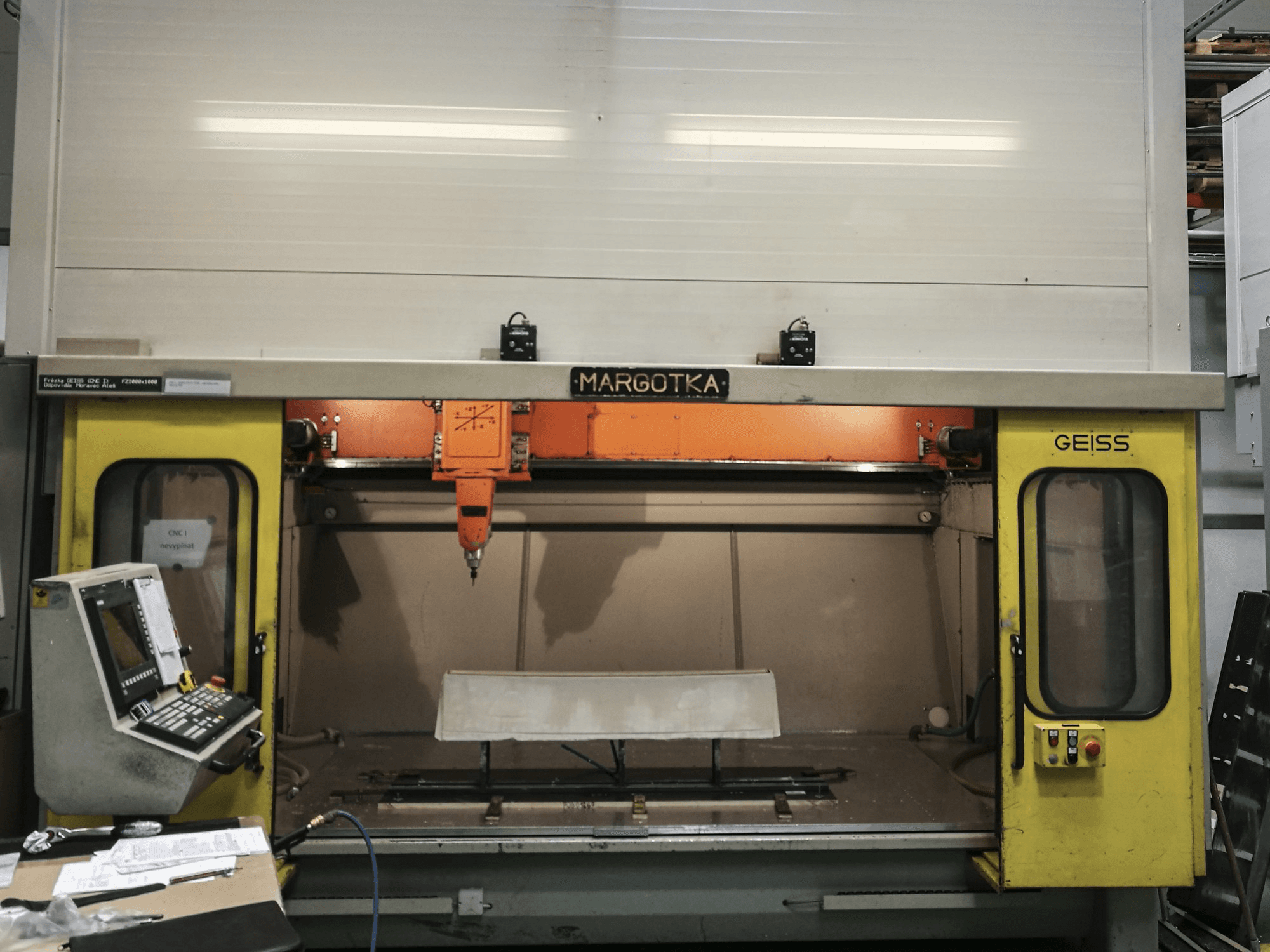

GEISS FZ 2000x1000 Milling Machine

Show in original language

This GEISS FZ 2000x1000 Milling Machine was made in Germany in 2001 and has a total of 65739 production hours and 22031 spindle hours. Operated through a SIEMENS SINUMERIK 840D Control unit, this highly dynamic 5-axis model has mainly worked with thermoplastics during the past.

Overview

brand: GEISS
year: 2001
MODEL: FZ 2000x1000
production hours: 65739
application type: Milling
Location: Czech Republic
machine type: Horizontal Machining Centre
availability: Sold
control unit brand: SIEMENS

Technical Information - GEISS FZ 2000x1000

General Data

Measurements width: 4505 mm
Measurements depth: 2497 mm
Measurements height: 2416 mm
Machine weight: 3375 kg

Control Unit

Model: SINUMERIK 840D
CNC main language: German
CNC language customizable: Yes
Brand: SIEMENS

Main drive

Number of spindles: 1
Spindle speed range: 30000 1/min

Movement

X-AXIS Movement: 2450 mm
Y-AXIS Movement: 1400 mm
Z-AXIS Movement: 800 mm
B-AXIS Movement: 285° MM
C-AXIS Movement: 520° MM

Table

Outer length: 2000 mm
Outer width: 1000 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
