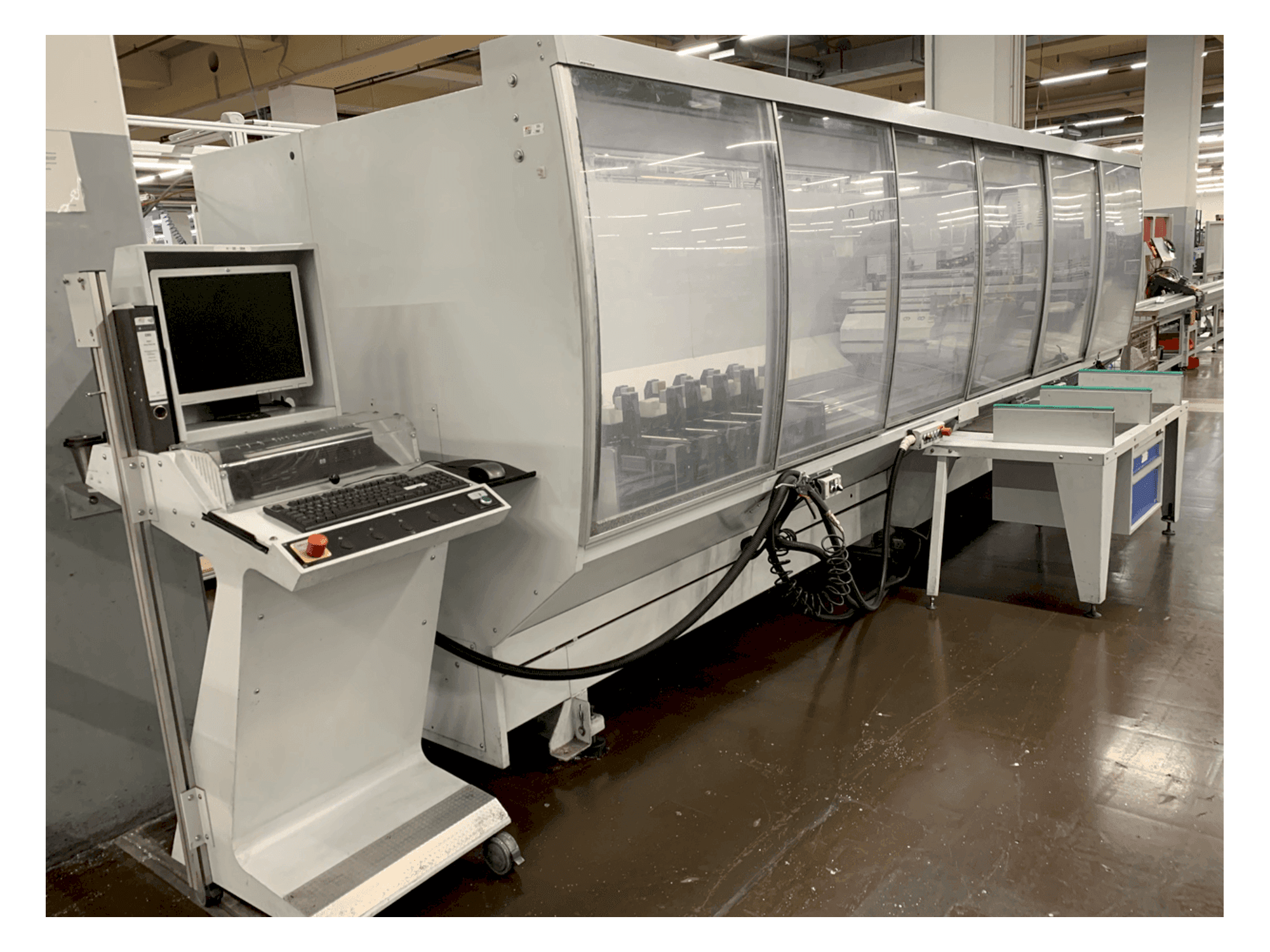

This FomIndustrie Dali 40 profile bar machining was made in 2012 in Italy. It is equipped with a VISION PLUS control unit and has 4 axis. The machine has a spindle speed of 12000 rpm and a max. tool length of 100 mm.

Overview

brand: FomIndustrie
year: 2012
MODEL: Dali 40
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold

Technical Information - FomIndustrie Dali 40

General Data

Measurements width: 5591 mm
Measurements depth: 2051 mm
Measurements height: 2341 mm
Machine weight: 2700 kg

Control Unit

Model: PLUS

Main drive

Spindle speed range: 12000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 4000 mm
Y-AXIS Movement: 200 - 220 mm
Z-AXIS Movement: 200 mm mm

Tools

Type of tool holder: ISO 30 / DIN 69871

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Permissible number of tools in the magazine: 7
- - Maximum weight /tool: 6kg
- - Max. Tool length: 100 mm
- - Maximum cylinder cutter Ø: 50 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
