Fidia Digit 318 Milling

Show in original language

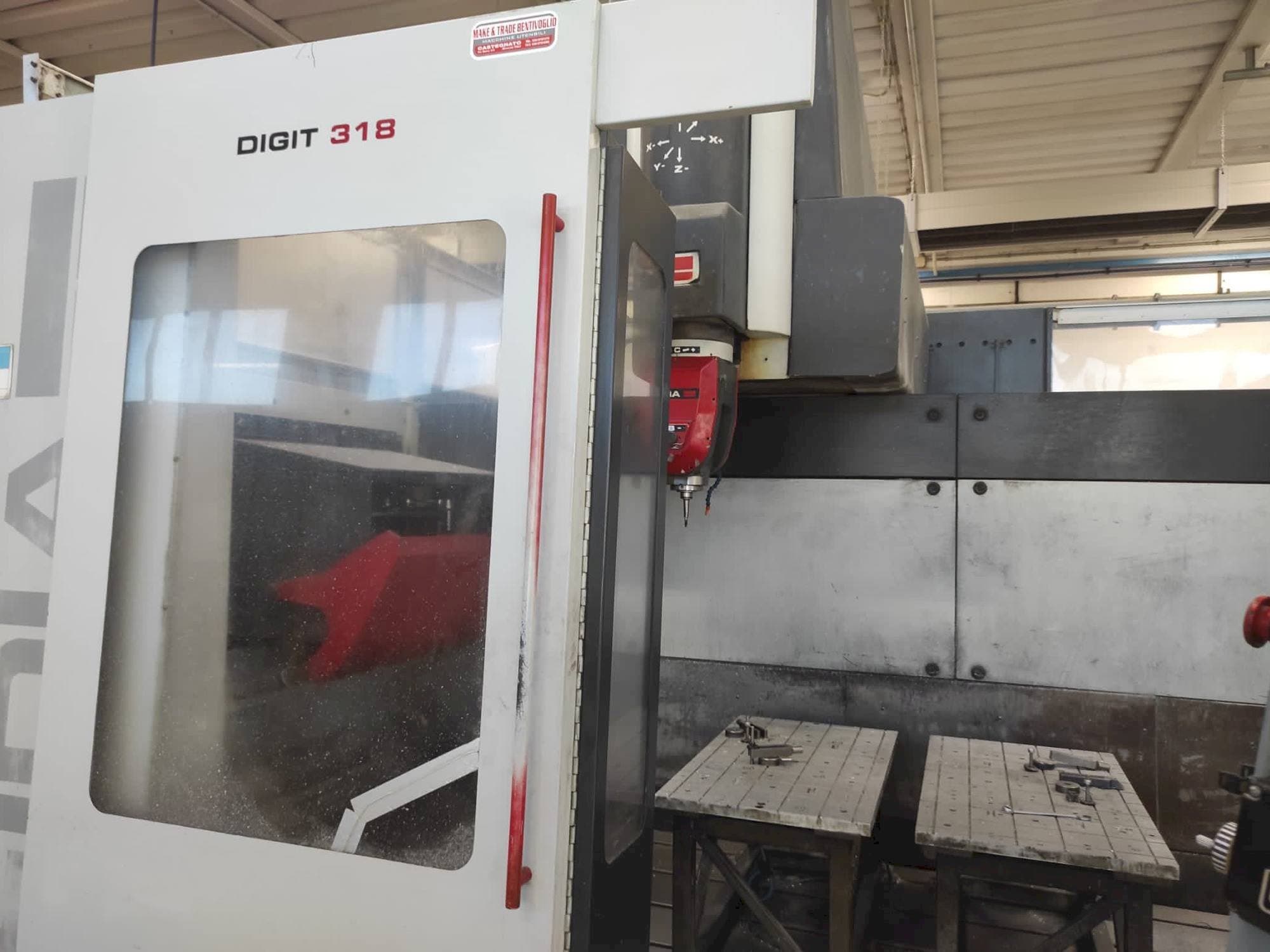

This Fidia Digit 318 Milling machine was built in the year 2000. This 5 axis machine can work with a spindle speed up to 30000 rpm.

Overview

brand: Fidia
year: 2000
MODEL: Digit 318
application type: Milling
Location: Italy
machine type: CNC Milling Machine
availability: Sold

Technical Information - Fidia Digit 318

Main drive

Spindle speed range: 30000 1/MIN
Number of axis: 5

Tools

Type of tool holder: HSK 50 E

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Spindle lubrication air, oil
- - Axis b- number of positions: 11
- - Axis b- step: 5º
- - Axis b- stroke: -25 º / +25 º
- - Axis c- number of positions: 120
- - Axis c- step: 3º
- - Axis c- stroke: +180 º / -177 º
- - Max speed of rotation: 30000 rpm
- - Max power- continuous service: 20 kw - intermittent service: 27 kw
- - Constant power range: 24000-30000 rpm
Qualitative Machine Benefits:
- - Max distance, spindle-plane nose (spindle vertical position) 1030 mm
- - Distance min. Spindle-bed axis 315/ 355 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
