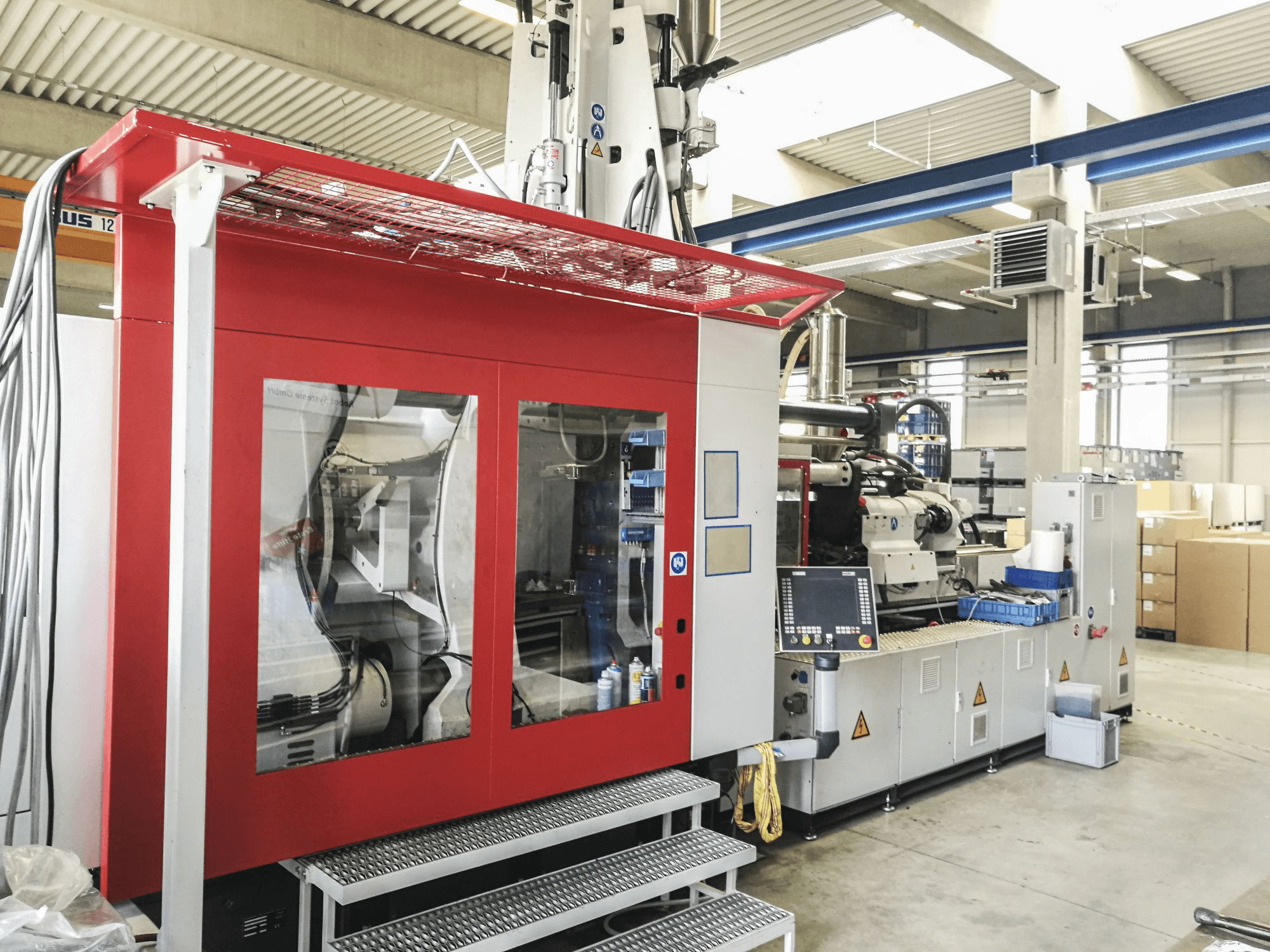

FERROMATIK MILACRON MM 800-4880/MSW Injection Moulding Machine

Show in original language

This FERROMATIK MM 800-4880/MSW Injection Moulding Machine was made in Germany in 2016 and has a total of 5552 production hours. Operated through a MILACRON MOASIC Control unit, this machine has mainly worked with PP, PA6 and ABS during the past and comes with a Sepro 6 axis robot as well as several more additional equipment items. This model stands out significantly as it supports the monosandwich process as well as the MuCell microcellular foam injection molding process. Both processes provide design flexibility, cost savings opportunities and sustainable production.

Overview

brand: FERROMATIK
year: 2016
MODEL: MM 800-4880/MSW
production hours: 5552
application type: Injection Moulding
Location: Germany
machine type: Hydraulic Injection Moulding Machine
availability: Sold

Technical Information - FERROMATIK MM 800-4880/MSW

General Data

Measurements width: 9830 mm
Measurements depth: 3070 mm
Measurements height: 2820 mm
Machine weight: 45500 kg

Control Unit

Model: MOASIC
CNC main language: German, French, English
CNC language customizable: Yes

Injection Unit

Screw diameter: 80 mm
Stroke volume: 2011 cm3 CM³
Injection pressure: 2300 bar
Heating capacity: 55 kW
Adjustable heating zones: 4+1

Clamping unit

Clamping force: 8000 kN
Opening stroke: 1850 mm
Ejector stroke: 250 mm

Media

Main electronic connection: 400 V
Power consumption: 168.5 kW
Internal cooling: Yes

Additional equipment

- 6 Axis Sepro Robot
- 8 x Core Pulls
- AIRPRESS Interface
- Temperature control unit
- Interface for E-Multi injection unit
- Interface for Handling device ROBOT
- Cascade control
- Conveyor belts
- Complete automation

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
